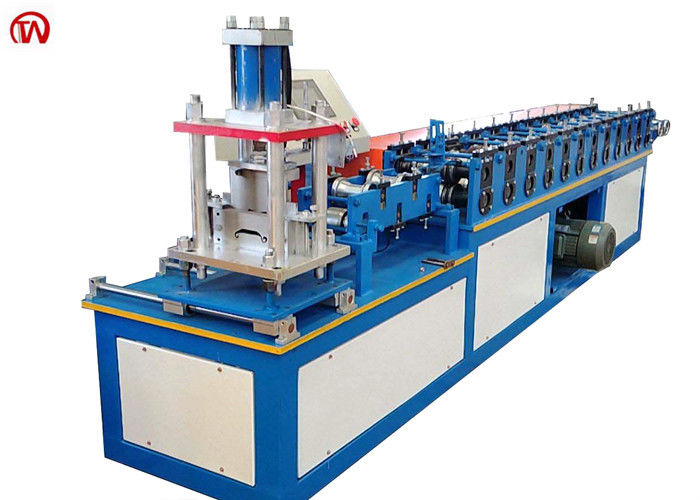

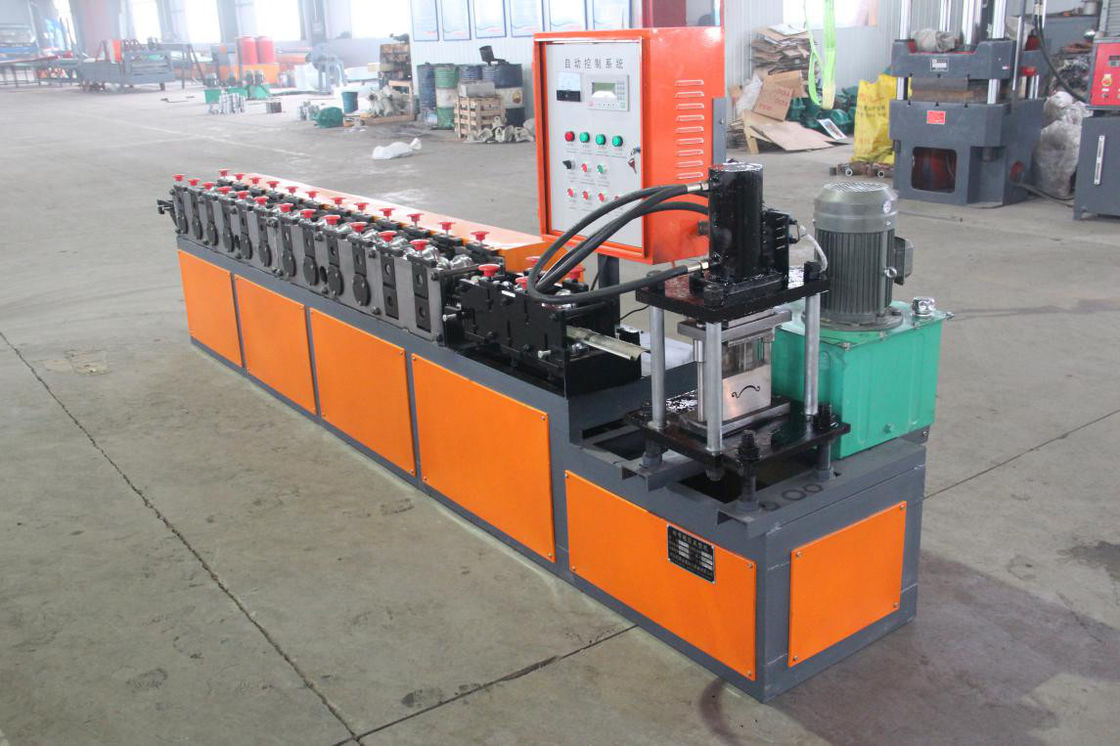

0.8-1.0 mm Automatic Cutting Shutter Door Roll Forming Machine GI Sheet
Product Description
Shutter door roll forming machine can make various types metal door or window frames, reinforced, fire stop doors, etc by roll forming method. The shutter door roll forming machines a complete product line. After roll forming by our production line, we could make very smooth and beautiful steel door frame without any scratch on surface. This shutter door production line is composed by the following elements: De-coiler, feed & leveling device, main roll forming machine, cutter, run-out table, etc.
Equipment Detailed Parameters:
|
No
|
||
|
|
Suitable Material | GI |
|
2
|
Width of the raw material | as per profile |
| 3 | Rows of rollers | 10-15 rows |
| 4 | Appearance size | 3800*600*1000mm |
| 5 |
Total power
|
Main motor 3kw Hydraulic station power 3kw |
| 6 | Thickness of raw material | 0.8-1.0mm |
| 7 | Speed | 8-15m/min |
| 8 | Diameter of shaft | ￠40mm |
|
|
Voltage | 380V 50Hz 3phases |
