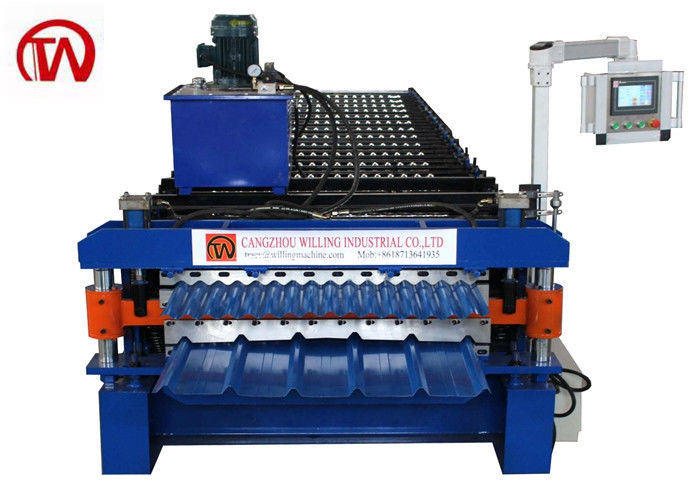

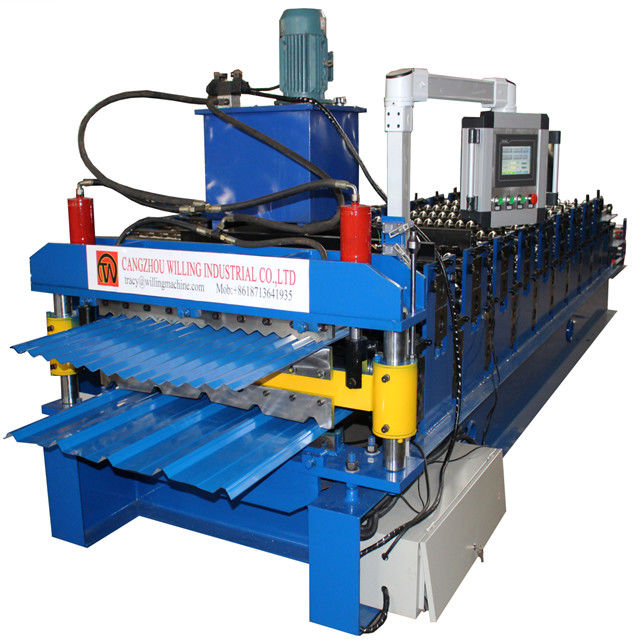

IBR And Corrugated Double Layer Roof Roll Forming Machine Full Automatic
IBR And Corrugated Double Layer Roof Roll Forming Machine can produce two different profile drawings on one machine, saving more space and money compared with using two different machines.
The double layer roof roll forming machine can produce one layer profile at a time. There is one clutch on the side of the machine and we just need to move one handle wheel to roll form the other layer profile.
Equipment Detailed Parameters:
| No. | Item | Description |
| 1 | Coil | Width:1000mm |
| 2 | Forming speed | 8-15 m/min (not including cutting time) |
| 3 | Roller Stations | 9 stations & 11 stations |
| 4 | Material of Roller | 45# steel finish machining, plated hard chromium surface |
| 5 | Material of Main Shaft | 45# steel finishing machining and then slack quench processed |
| 6 | Material of Shaft | 70 mm 45#steel forged |
| 7 | Driven Motor Power | 3 KW |
| 8 | Hydraulic Station Power | 3 KW |
| 9 | Hydraulic Station Pressure | 12.0 Mpa |
| 10 | Electrical Control System | Delta PLC |
| 11 | Dimension (L*W*H) | 5500mm*1250mm*1200mm |
| 12 | Material of Cutter | GCr12 |
| 13 | Driving Mode | single chain 1 inch |
| 14 | Material Thickness | 0.3-0.8mm |
| 15 | Power Supply | 380V, 60HZ, 3 PHASES |
| 16 | Cutting accuracy | ±2 mm |
