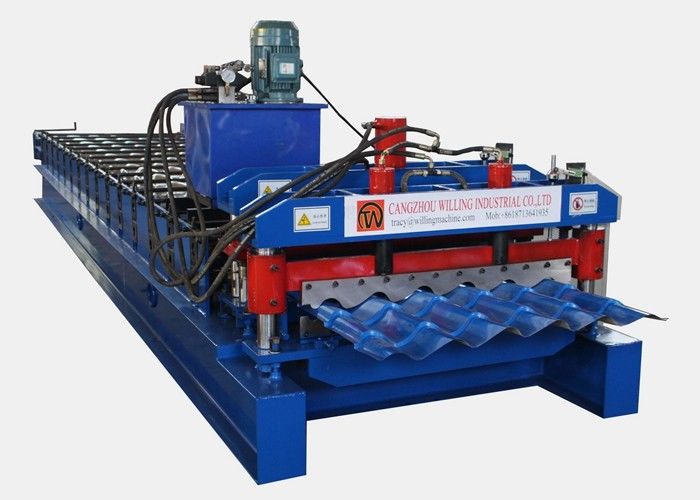

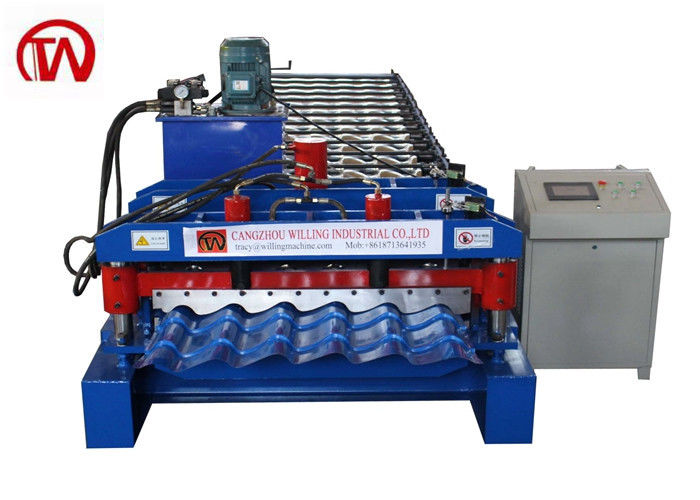

1100 Monteray Glazed Tile Roof Roll Forming Machine For Europe
The raw material of the glazed tile forming machine is PPGI,GI,AL.
This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
Equipment Detailed Parameters:
|
No
|
||
|
1
|
Suitable Material | PPGI (235Mpa) |
|
2
|
Width of the raw material | 1250mm |
| 3 | Rows of rollers | 13rows |
| 4 | Appearance size | 6500*1550*1200mm |
| 5 |
Total power
|
Main motor +Hydraulic station power 7.5kw with cooling fan |
| 6 | Thickness of raw material | 0.5-0.6mm |
|
7 |
Productivity |
3-4m/min |
| 8 | Diameter of shaft | ￠70mm |
|
9
|
Voltage | 380V 50Hz 3phases |
| 10 | Big frame | 350H steel |
| 11 | Middle plate | 16mm |
