उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
cangzhou willing
प्रमाणन:
CE,ISO
Model Number:
1100/1080
वीडियो
वीडियो

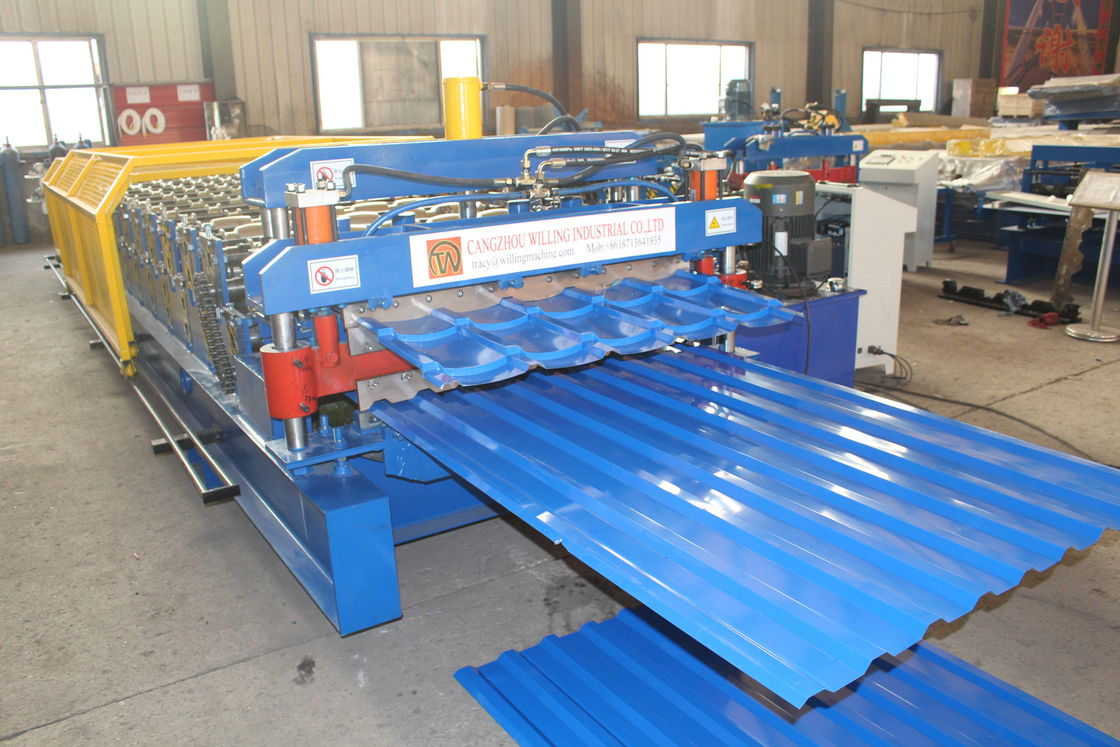

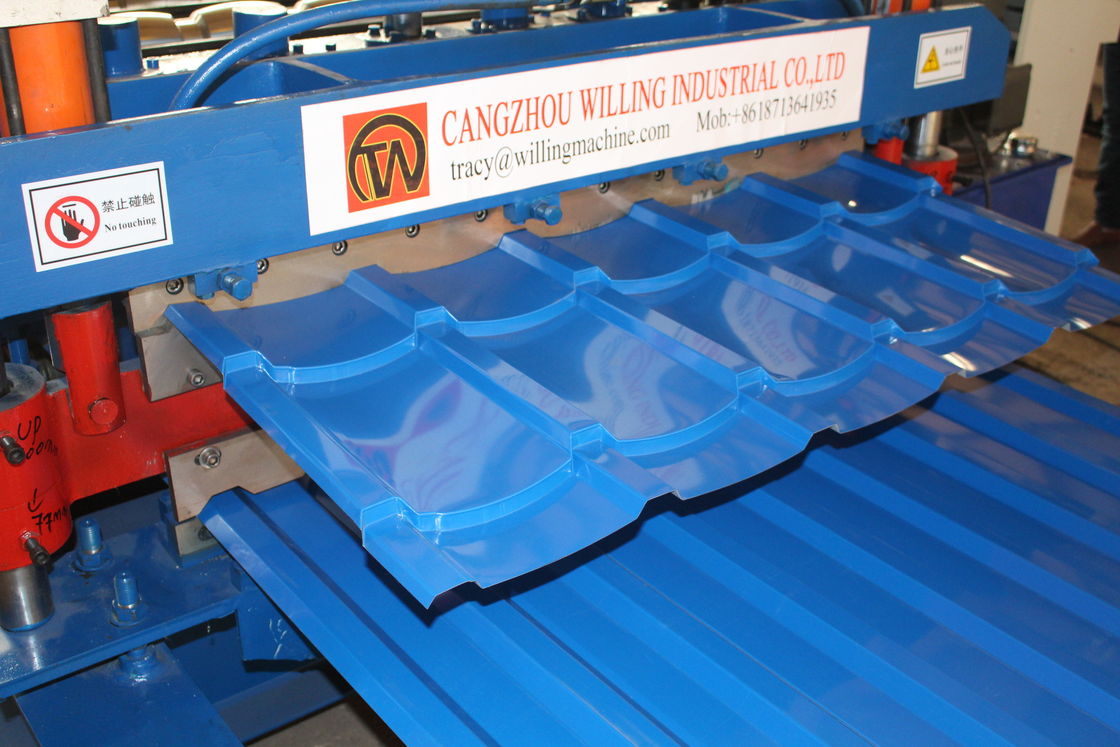

CE Standard Double Layer Roof Roll Forming Machine For Hungary
Double Layer Roof Roll Forming Machine can produce two different profile drawings on one machine, saving more space and money compared with using two different machines.
1. High quality
2. Fast speed
Equipment Detailed Parameters:
|
No
|
||
|
|
Suitable Material | PPGI (235Mpa) |
|
2
|
Width of the raw material | 1250mm |
| 3 | Rows of rollers | 15rows & 16 rows |
| 4 | Appearance size | 7300*1550*1200mm |
| 5 |
Total power
|
Main servo motor 7.5kw Hydraulic station power 11kw with cooling fan |
| 6 | Thickness of raw material | 0.3-0.8mm |
|
7 |
Productivity |
0-4m/min |
| 0-15m/min | ||
| 8 | Diameter of shaft | ￠75mm |
|
|
Voltage | 380V 50Hz 3phases |
| 10 | Frame | 350H steel |
| 11 | Middle plate | 16mm |
