उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
cangzhou willing
प्रमाणन:
CE,ISO
मॉडल संख्या:
1450
वीडियो
वीडियो
वीडियो

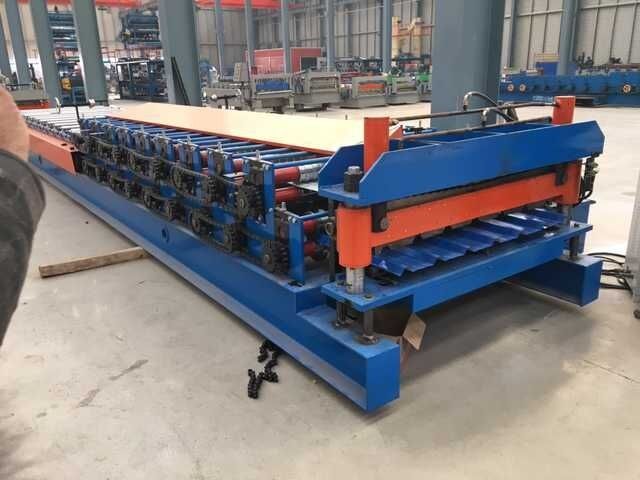

415V Liner And Profile 2 Layers Roof Roll Forming Machine 1220/1450mm Width
One machine can produde two different shapes.
Save spave
Save money
Equipment Detailed Parameters:
| No. | Item | Description |
| 1 | Coil | Width:1220mm & 1450mm |
| 2 | Forming speed | 8-15 m/min (not including cutting time) |
| 3 | Roller Stations | 9 stations & 22 stations |
| 4 | Material of Roller | 45# steel finish machining, plated hard chromium surface |
| 5 | Material of Main Shaft | 45# steel finishing machining and then slack quench processed |
| 6 | Material of Shaft | 70 mm 45#steel forged |
| 7 | Driven Motor Power | 5.5 KW |
| 8 | Hydraulic Station Power | 4 KW |
| 9 | Hydraulic Station Pressure | 12.0 Mpa |
| 10 | Electrical Control System | Panasonic PLC |
| 11 | Dimension (L*W*H) | 11000mm*1500mm*1500mm |
| 12 | Material of Cutter | GCr12 |
| 13 | Driving Mode | single chain 1 inch |
| 14 | Material Thickness | 0.3-0.8mm |
| 15 | Power Supply | 415V, 50HZ, 3 PHASES |
| 16 | Cutting accuracy | ±2 mm |
