उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
cangzhou willing
प्रमाणन:
CE,ISO
मॉडल संख्या:
190

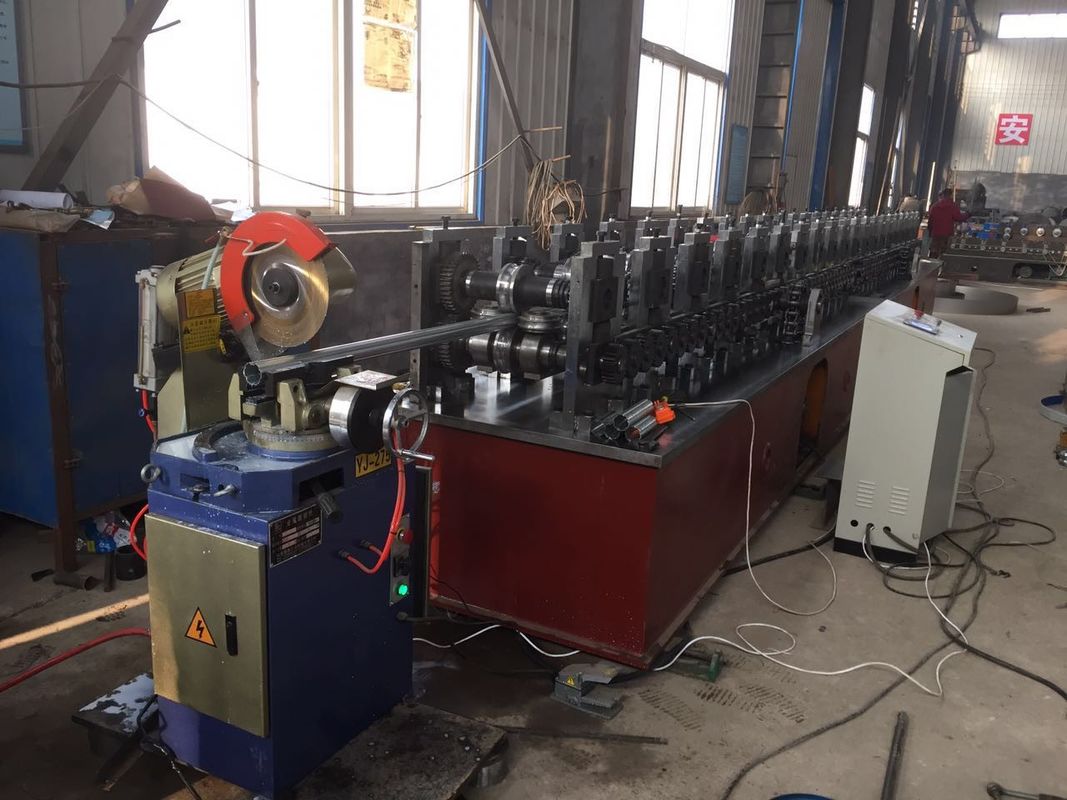

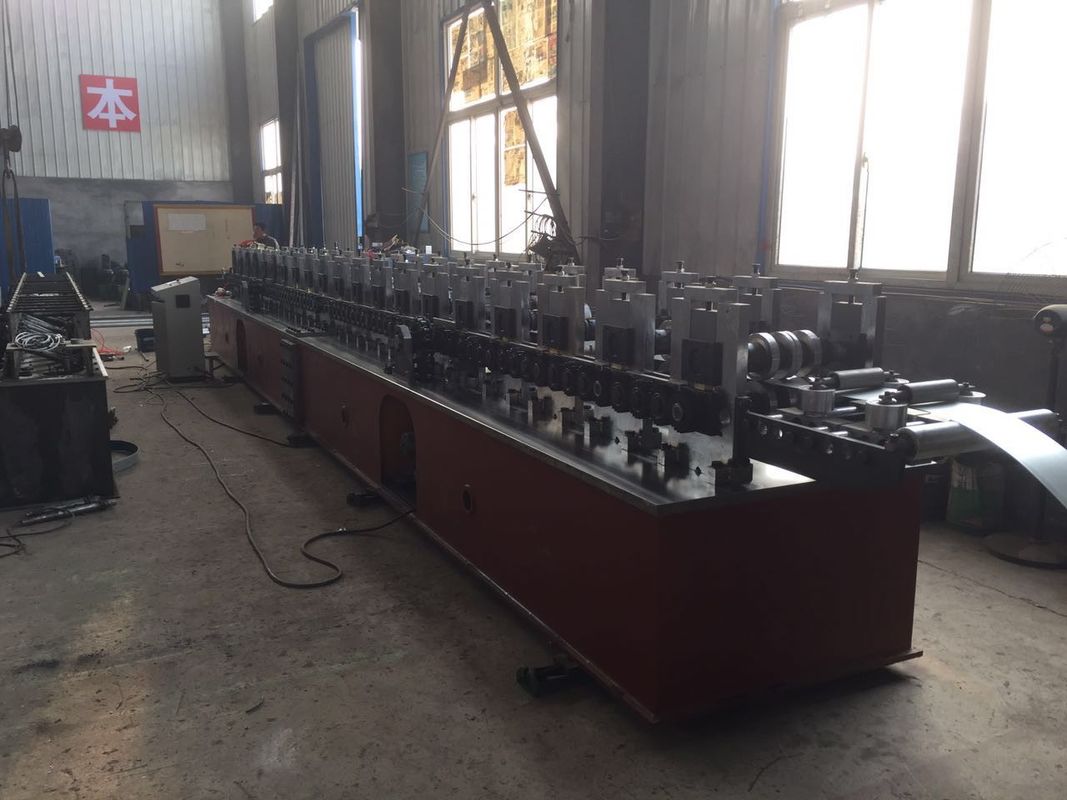

11kw 1.5mm Thickness Seaming GI Fence Pipe Roll Forming Machine For Romania
1.5mm thickness is very hard for seaming, but we realized in 2 month.
This roll forming machine machine we exported to Romania customer, they use for Fence.
Equipment Detailed Parameters:
Input Material : Hot Rolled, Cold Rolled, Galvanized, Aluzinc, Aluminized & Prepainted Steel
Input Material Thickness : 1.0mm-1.5mm
Input Feeding width : 190mm ( + / - 5mm)
Tension Strength : 270 N/mm2 minimum
Yield Strength : 140 N/mm2 minimum
3Ton X 500mm Un-coiler
Load capacity Max.3Tons
Coil Width Max.500mm
Coil Inner Diameter:508mm
Coil outer Diameter:1200mm
Roll-Forming M/C
Adjustable feeding guide device : one set
Gear/Sprocket driving, 18-steps to form
Rollers manufactured from 40Cr, CNC precision machined, fine polished, heat treatment,
Shaft diameter: Φ75mm, Precision Machined
Main motor: 11KW, frequency control speed
Forming speed: approx.5-8m/min
Overall mobile security cover, include general limit switch (not include safety module)
Saw Cutting device one set
Stop to Cut, Post cut,
Cutting tools material: Cr12, head treatment
PLC Control System
Control the quantity & cutting length automatically.
Combined with: PLC (Panasonic), Inverter (Panasonic),
Touch Screen (Panasonic), Encoder (OMRON) etc
Cut-to-length tolerance≤±2mm
Control voltage 24V,
Product Rack Un-powered, 6 meters Length, one unit
