उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
cangzhou willing
प्रमाणन:
CE,ISO
मॉडल संख्या:
960
वीडियो

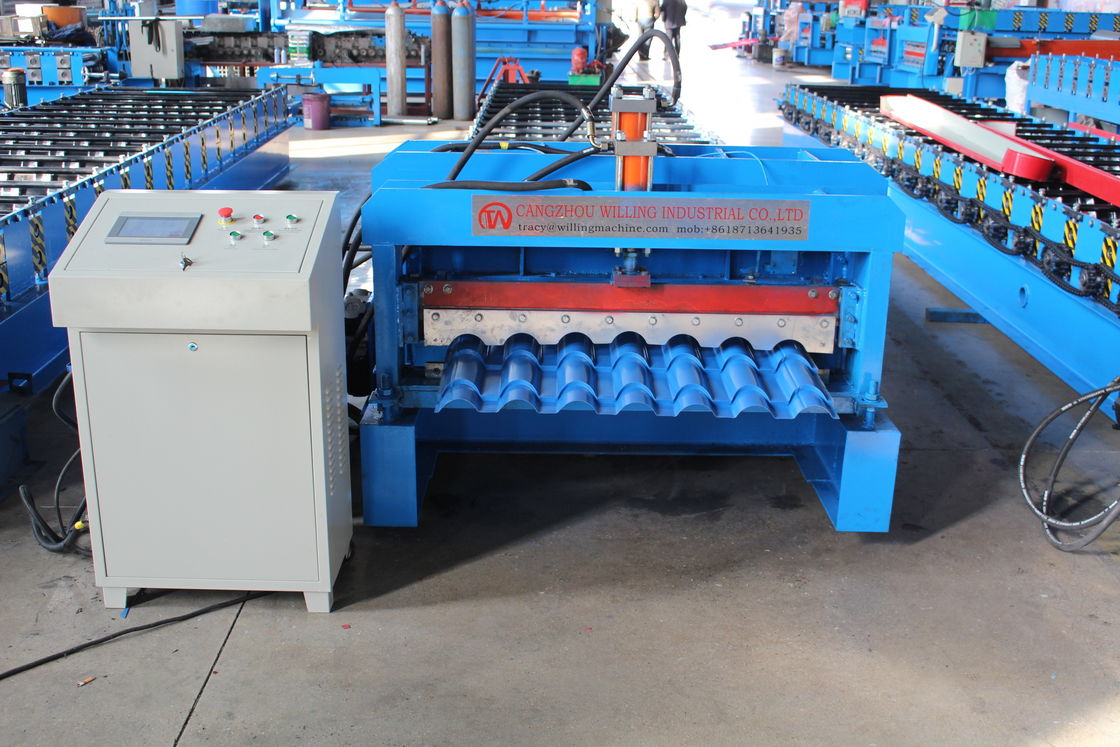

Tipo Teja Colonial Onduladita Tile Roof Roll Forming Machine For PPGI,GI,AL
The raw material of the Tipo Teja Colonial Onduladita Tile Roll forming machine is PPGI,GI,AL.

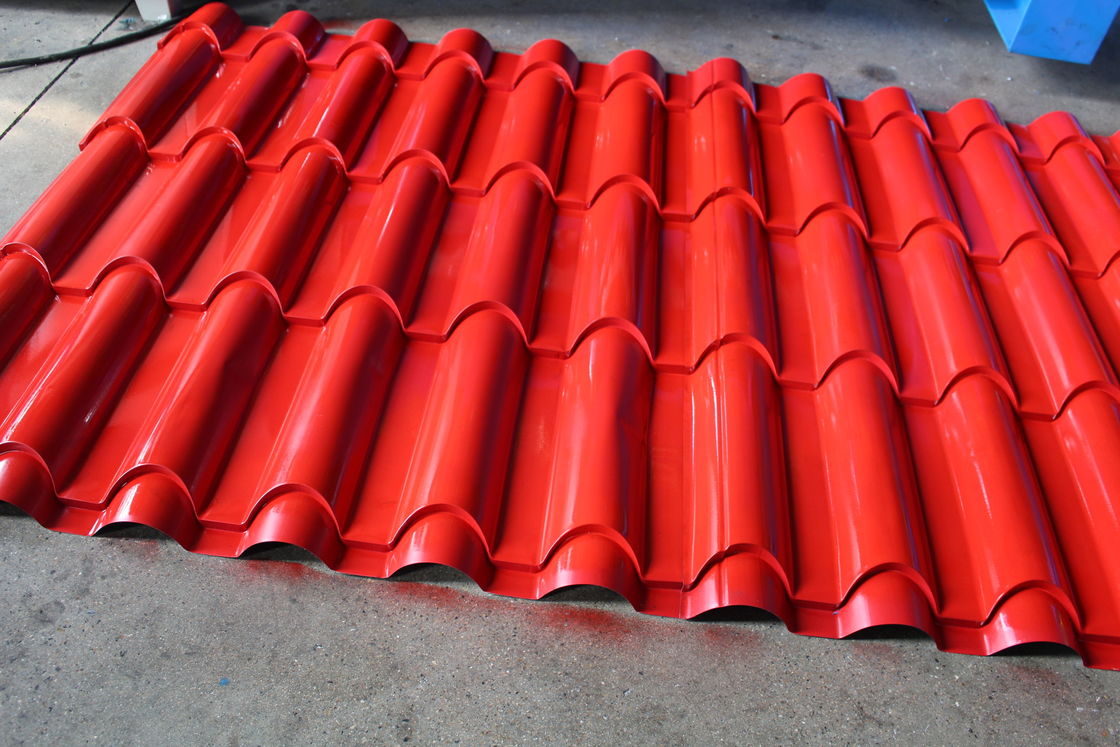

Tipo Teja Colonial Onduladita roll forming machine produces the rich color glazed tile, strong corrosion resistance, for the new building materials, with special paint, rich colors, classical and elegant, finishing touch for your building. Its light weight, high strength, good waterproof, easy to install.
Equipment Detailed Parameters:
|
No
|
||
|
1
|
Suitable Material | PPGI (235Mpa) |
|
2
|
Width of the raw material | 1200mm |
| 3 | Rows of rollers | 18rows |
| 4 | Appearance size | 8500*1550*1200mm |
| 5 |
Total power
|
Main motor +Hydraulic station power 7.5kw with cooling fan |
| 6 | Thickness of raw material | 0.5-0.6mm |
|
7 |
Productivity |
3-4m/min |
| 8 | Diameter of shaft | ￠70mm |
|
9
|
Voltage | 380V 50Hz 3phases |
| 10 | Big frame | 350H steel |
| 11 | Middle plate | 16mm |
