High Speed Steel Coil Levering And Cut - To - Length Line Production
A CTL or a blanking line will take a master coil of flat rolled steel from the integrated or mini mill and unroll, flatten and cut to length sections to a precise length and stack the sheets into a bundle. Equipment will vary according to the width, thickness and incoming coil weight. Depending on the final end product to be utilized from the cut sheet, flatness may be a critical point and use of a double leveler, skin pass or stretcher leveler may be employed into the process.
In this variant of a CTL, the strip is fed out of the master coil and through the flattener and or leveler. The strip is now fed at a constant rate into a looping pit of a desired depth according to the thickness and speed of cutting to length. At the other end of the loop, a separate servo feeder measures and feeds the material to the shear. The shear can be stationary or flying type. The continuous CTL is preferred when lighter gauges are cut to length generally less than .125” thick.
Main Technical Specifications
| No. | Item | Description |
| 1 Main Specification | 1 Raw Material | Galvanized, Aluminum,Color steel, Handness 235MPa - 485MPa |
| 2 Raw Material Thickness | 0.3 mm - 3.0 mm | |
| 3 Raw Material Width | 600 mm - 1600 mm | |
| 4 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 5 TapeOuter Diameter | φ 1600 mm | |
| 6 Coil Weight | 5 tons - 10 tons | |
| 7 The Highest Slitting LineSpeed | 20 m/min - 100 m/min | |
| 8 Cutting Width Precision | ± 0.01 - ± 0.05 mm | |
| 9. Rated Operational Voltage | 240 V, 3 Phase, 60 Hz | |
| 10. Total Weight | 13000 KG | |
| 11. Working Space(L*W) | 20000 mm*6000 mm | |

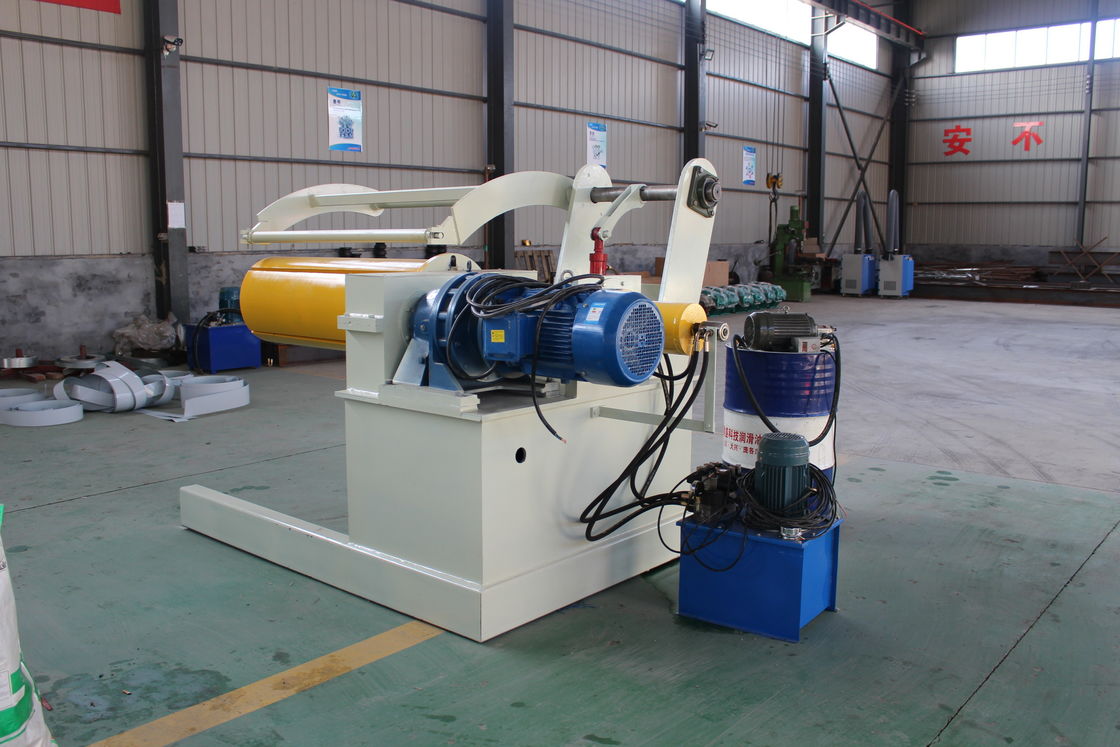

| 2 Decoiler Machine Specification | 1 Tape Outer Diameter | Max φ 1600 mm |
| 2 Tape Width | 600 mm - 1600 mm | |
| 3 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 4 Coil Weight | 5 tons - 10 tons | |
| 5 Max Working Speed | 20 m/min - 100 m/min | |
| 6 Tape Tight Range | φ 480 mm - φ 530 mm | |
| 7 Shaft Diameter | φ180 mm | |
| 2 Decoiler Machine Specification | 8 Roller Effective Length | 1600 mm |
| 9 Drive Moter Power | 5.5 KW | |
| 10. Loading Car Diameter | φ 700 mm - φ 1500 mm | |
| 11 Loading Car Weight | 5 tons - 10 tons | |
| 12 Car Speed | About 4 m/min | |
| 3 Planing Machine | 1 Shaft Diameter | φ 130 mm |
| 2 Shaft No. | Up 2 rows, down 3 rows | |
| 3 Mid Plate Thickness | 40 mm | |
| 4 Mulch Applicator Diameter | φ 130 mm | |
| 5 Film Width | 1600 mm | |
| 4 Tension Table | 1 Segregation Shaft | 3 pcs, 1 pcs pressure shaft |
| 2 Air Cylinder | 3 pcs | |
| 5 Electrical Control System | 1 sets. Computer Control System is Siemens PLC. | |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received.
