Products Specifications
| Brand | Polygold |
| Product DESC.: | Galvanized Steel / Galvalume Steel / Aluminum |
| Base Metal: |
Galvanized Steel Coil(GI), Prepainted Galvanizeded Steel Coil (PPGI), Al-Zn coated steel coil(GL, PPGL) |
| Thickness: | 0.12-1.2mm |
| Width: | 600-1250mm |
| Length: | 600-12000mm |
| Coil ID: | 508mm,610mm |
| Coil weight | 2.5 tons – 5.0 tons |
| Zinc coating weight: | 20-275g/m2 |
| Surface protection: | PE, PVC, PVDF ,SMP,HDP |
| Surface treatment: | Chromate, oil/unoil, bright finish, spangle, anti-finger print |
| Type: | sheet,coil |
| Color: | Ral,NCS,Pantone,acording clients sample |
| Technology: | Cold rolled |
| Capacity: | 5000T/Month |
| MOQ: | 20 Tons |
| Price Terms: | FOB, CNF, CIF |
| Payment Terms: | L/C, T/T |
| Lead time: | 7-30 Days |
| Delivery port: | Qingdao |
| Packaging: | Standard Safety Package |
| Grade: |
Q195-Q235 and SPCC, SPCD, SPCE, SGCC ,CGCC,(DX51D+Z), SGCD, (DX52D+Z), etc. |
| Standard: | DIN, JIS, EN, ASTM, GB |
| Certificate: | ISO, SONCAP, SGS |
| Paint Top | 15-35Microns |
| Paint Back | 5-35Microns |
Product Sectional Structure
| Item | Type | Featur |
| Protection Film | Polyethylene | Protecting from scratches and contamination |
| Clear Varnish | Polyester | Protecting printing layer and enhances the appearance of the surface |
| PVDF link | Various printing patterns,3 color overprint | |
| Top Coat | PE/SMP/HDP/PVDF | Chemical resistance, formability and colors multiformity |
| Primer Coat | Polyester | Workability, corrosion resistance and adhesion to the primer coating |
| Pre-treatment | Crfree Passivation | Good adhesion and corrosion resistance |
| Substrate | GI,GL,EG,CR | Galvanized Steel, Aluzinc Steel, Electro-galvanized Steel, Cold Rolled Steel |
| Pre-treatment | Crfree Passivation | Good adhesion and corrosion resistance |
| Back Coat | Epoxy Resin | Corrosion resistance and adhesion to the substrate |
The RAL chart is now used worldwide to specify the exact colour requirements. It is widely used in production of PPGI for denoting the colour reference.

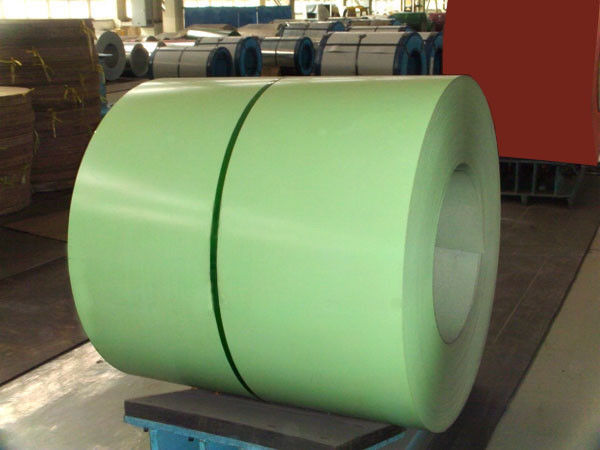

Products Photos
Applications:
Corrugated steel sheets are roll formed by roll forming machine. With the great benefits of light weight,high strength,rich colors and easily installation, they are widely used in industrial and civil buildings, warehouse, large scale steel structure houses and mobile homes, roof, walls, interior and exterior decoration, etc
Packaing and Loading
Coil Packaging
Container Loading
Shipping to worldwide
