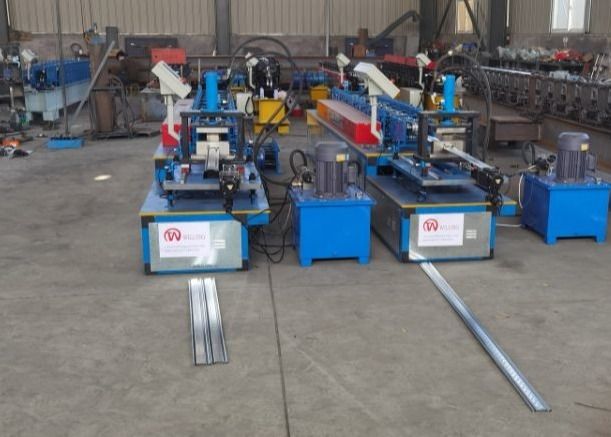

Non stop cutting Shutter Door Slats Roll Forming Machine
Non stop cutting Shutter Door Slats Roll Forming Machine ,the service life of cutting blades exceeds 2 million times and The blade is fixed by bolts ,so it is easy to replace.
This machine Can make the roller shutter size 39mm, 42mm, 55mm, 77mm and 95mm . According to customer's required profile drawing or samples.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.5mm - 1.0 mm |
| 3 | Working Speed | 15-30 m/min |
| 4 | Roller Station | 12 Stations |
| 5 |
Dimension (L*W*H) |
5500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 3.5 tons |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 1 mm |
| 12 |
Driving Mode |
Gear Wheel |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
the shutter door can improve the satisfaction of high-performance logistics and clean places, and save energy, improve the effect of air conditioning, high-speed automatic closing, improve efficiency, and create an ideal and comfortable working environment. Fast rolling doors are widely used in food, textiles, electronics, machinery, pharmaceuticals, printing, supermarkets, shopping malls, cold storage, warehousing, logistics, chemistry, packaging and other places. They are suitable for logistics channels, clean workshops, large-area openings, and windproof requirements. Higher-class indoor and outdoor doors.
Advantage
the shutter door can effectively isolate temperature, heat, insects, noise, and odor, and play a blocking role in the room, reduce energy consumption, and keep the indoor working environment clean.
