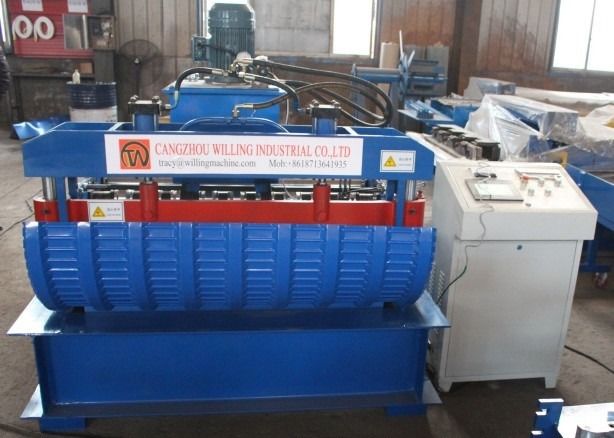

Auomatic Curving Roof Tile Roll Forming Machine
This is a machine designed by our company to solve the water accumulation on the roof. This machine has changed the inefficiency of manual operation before adopting a modern high-efficiency fully automated PLC control system. Thereby increasing the production speed to reach an efficiency of 90° per 4 minutes. Because its bending angle can be adjusted greatly and conveniently, the limitations of traditional production are changed.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 90deg per 4 min |
| 4 | Roller Station | 3 Raws |
| 5 |
Dimension (L*W*H) |
1600 mm*1200 mm*1350 mm |
| 6 | Machine Weight | 1.5 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The curved roofing sheet usually used in metal roof building system, when raining the curved roofing sheet can guiding the water from panel to floor.This kind of roof system can prevent hydrops effectively.
Advantage
The machine adopts an all-steel welded structure, which has high vibration stress and high mechanical strength. Hydraulic upper transmission, stable and reliable.
