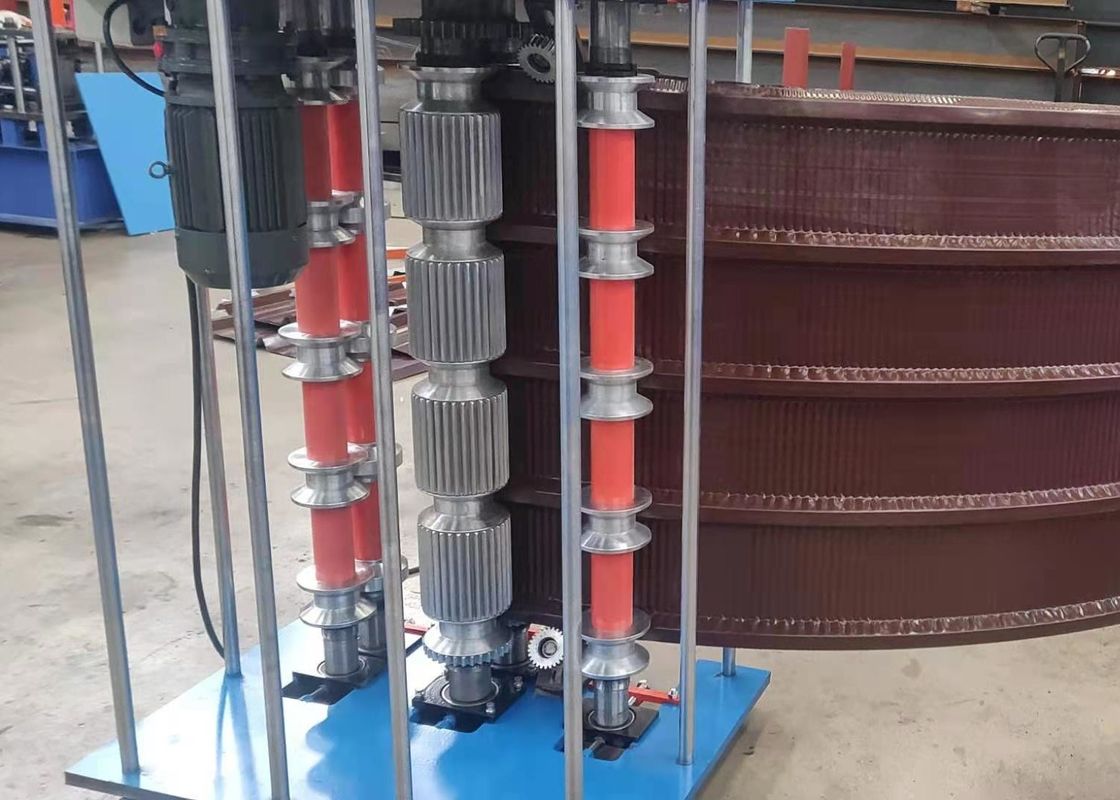

Manual Crimping Bending Roof Roll Forming Machine
In order to meet the special requirements of customers for roof shapes, we have introduced a manual crimping and bending roof coil forming machine. This machine has changed the cold pressing mode of the previous machine. Use the roller to change the shape of the roof slab. This production method is suitable for thin and easily damaged panels. Due to its low cost, small footprint, and simple operation, this equipment is used by customers to produce roof color steel plates.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.9mm |
| 3 | Working Speed | 0-15 m/min |
| 4 | Roller Station | 3 Raws |
| 5 |
Dimension (L*W*H) |
2000 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 1000 KG |
| 7 |
Electrical Control System |
Manual |
| 8 |
Drive Motor Power |
3KW |
| 9 |
Tile type |
bending |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The tiles produced by this equipment have the characteristics of easy drainage and low cost, so they are commonly used in garage roofs, workshop roofs, prefab roofs, laboratory roofs, apartment roofs, etc.
Advantage
(1) Large carrying capacity
The color steel tile is made of color steel plate and has good carrying capacity. In harsh environments, even if there is often snow on the roof, the surface of the tiles will not be damaged or cracked.
(2) The color lasts
The colored steel roof tiles are made by pressing colored coated steel plates, so there is no need to paint the surface. In this way, colored steel ridge tiles have extraordinary durability in natural environments, and can maintain color stability even in harsh environments.
(3) Waterproof
The material of the colored steel ridge tile is metal, so the density is small, it does not absorb water, and there is no problem of microporous water seepage. In addition, the color steel roof ridge tile has a large single-layer area, few roof joints, and tight joints, which enhances the waterproof effect.
