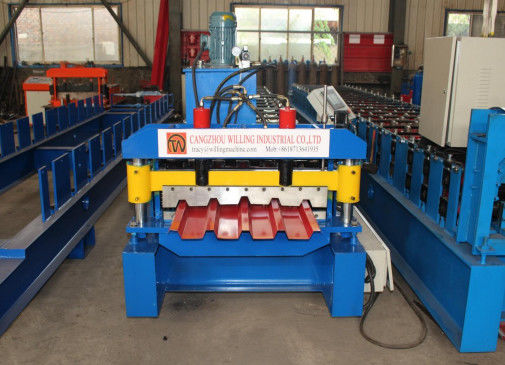

IBR 686 High Speed Productive Roof Tile Roll Forming Machine
IBR 686 is our company’s main model in the Zimbabwe market. The version produced by it has a usage rate of up to 90% in Zimbabwe. Because of the stable operation, high efficiency and low energy consumption of the machine, it can effectively save customers production costs and labor costs. .
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.25-0.6mm |
| 3 | Working Speed | 15-20/min |
| 4 | Roller Station | 18 Raws |
| 5 |
Dimension (L*W*H) |
8500 mm*1200 mm*1200 mm |
| 6 | Machine Weight | 4800 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
This type of tile is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decorations of large-span steel structure houses. The anti-corrosion materials of the tile are polyester, silicon modified polyester, polyvinyl fluoride and plastisol, etc. It has anti-corrosion and acid-resistant effects, so its service life is 10-15 years
Advantage
This version is mostly used for roofing, wall and interior and exterior wall decoration of buildings, warehouses, special buildings, large-span steel structure houses, etc. It has light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rainproof, and long life. Features such as, protection-free, etc., have been widely implemented.
