उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
CANGZHOU WILLING
प्रमाणन:
ISO CE
मॉडल संख्या:
सी एंड जेड मशीन
वीडियो
वीडियो
वीडियो
वीडियो

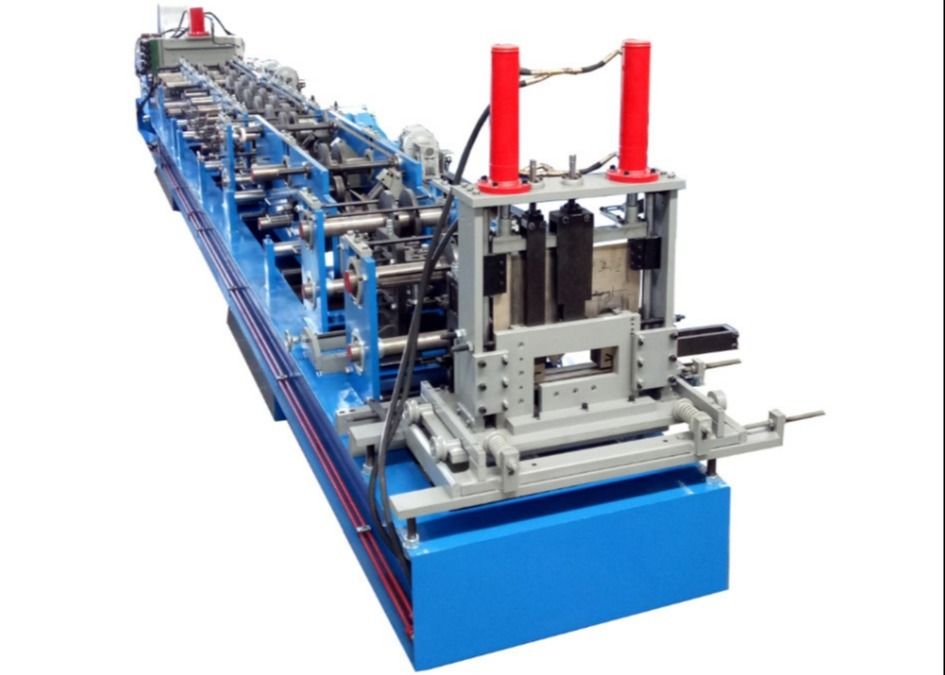

High Speed And Low Noise CZ Purlin Roll Forming Machine
Specification
| No. | Item | Description |
| 1 | Coil | Galvanized |
| 2 | Material Thickness | 1 mm- 3 mm |
| 3 | Working Speed | 20- 25 m/min |
| 4 | Roller Station | 12-16 Raws |
| 5 |
Dimension (L*W*H) |
9500 mm*1400 mm*2000 mm |
| 6 | Machine Weight | 8000 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
15KW |
| 9 |
Hydraulic Station Power |
22 KW |
| 10 |
Power Supply |
360V/60HZ/3PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 2 inch |
| 13 |
Material of Shaft |
80 mm 45#steel forged |

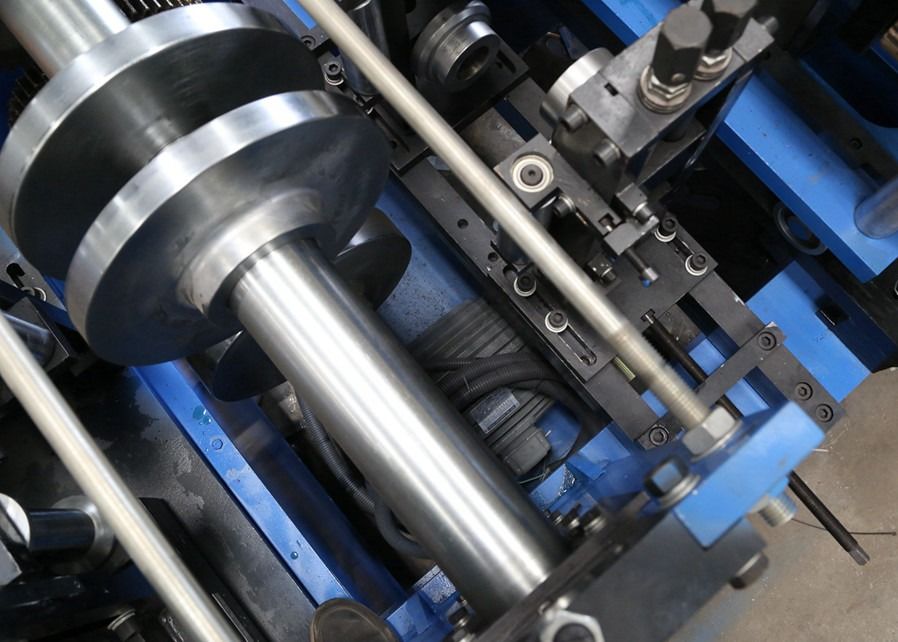

| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application

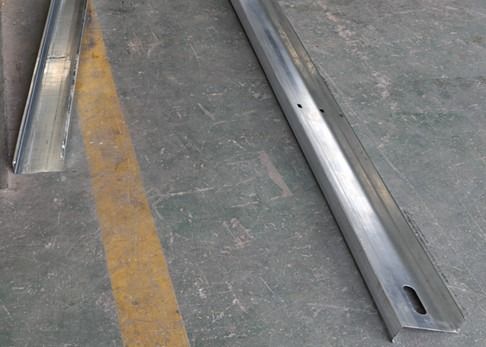

The products of C & Z prulin roll forming machine produce have excellent bending resistance and easy to install. They are widely used as supports for roofs and walls of large and medium-sized buildings such as factories and warehouses, garages, exhibition centers, cinemas, theatres, gardens, etc.
Advantage
The advantages of C& Z purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.

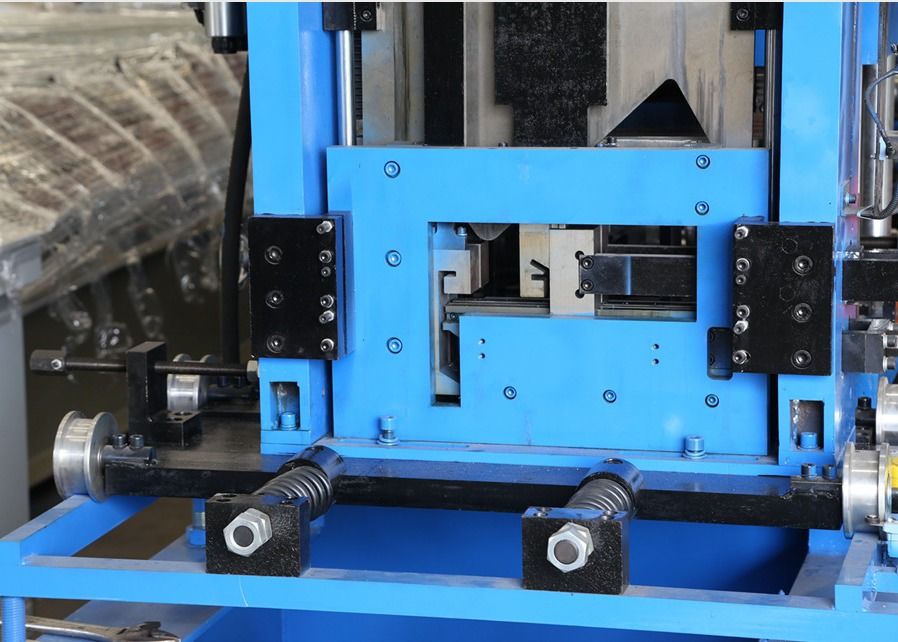

2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
