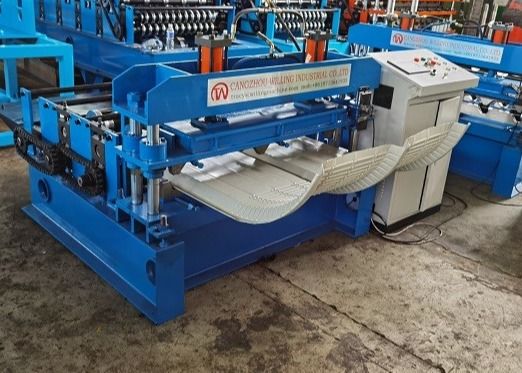

Curved Arch Roof Color Steel Roof Roll Forming Machine
Curved Arch Roof Color Steel Roof Roll Forming machine uses a rolling method to change the shape of the roof slab. The machine is flexible in control and can choose any bending position such as the middle and both ends. So as to better meet the needs of customers for different application scenarios
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.9mm |
| 3 | Working Speed | 90Deg/4 min |
| 4 | Roller Station | 3 Raws |
| 5 |
Dimension (L*W*H) |
2800 mm*1200 mm*1800mm |
| 6 | Machine Weight | 1000 KG |
| 7 |
Electrical Control System |
Automatic |
| 8 |
Drive Motor Power |
4KW+4KW |
| 9 |
Tile type |
bending |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Curved roofs are usually used on the roof or eaves. When it rains, rainwater can be guided from the panel to the floor. This roof system can effectively prevent water accumulation and is widely used in apartment houses, prefab roofs, laboratory roofs, etc.
Advantage
The color steel roof has the advantages of light weight, high strength, thermal insulation, beautiful and durable, easy to cut and install, etc. The color steel roof construction cleaning is widely used in large-span activity workshops, warehouses, office buildings, villas, roof additions, air purification Housing, cold storage, shops, kiosks and temporary housing.
