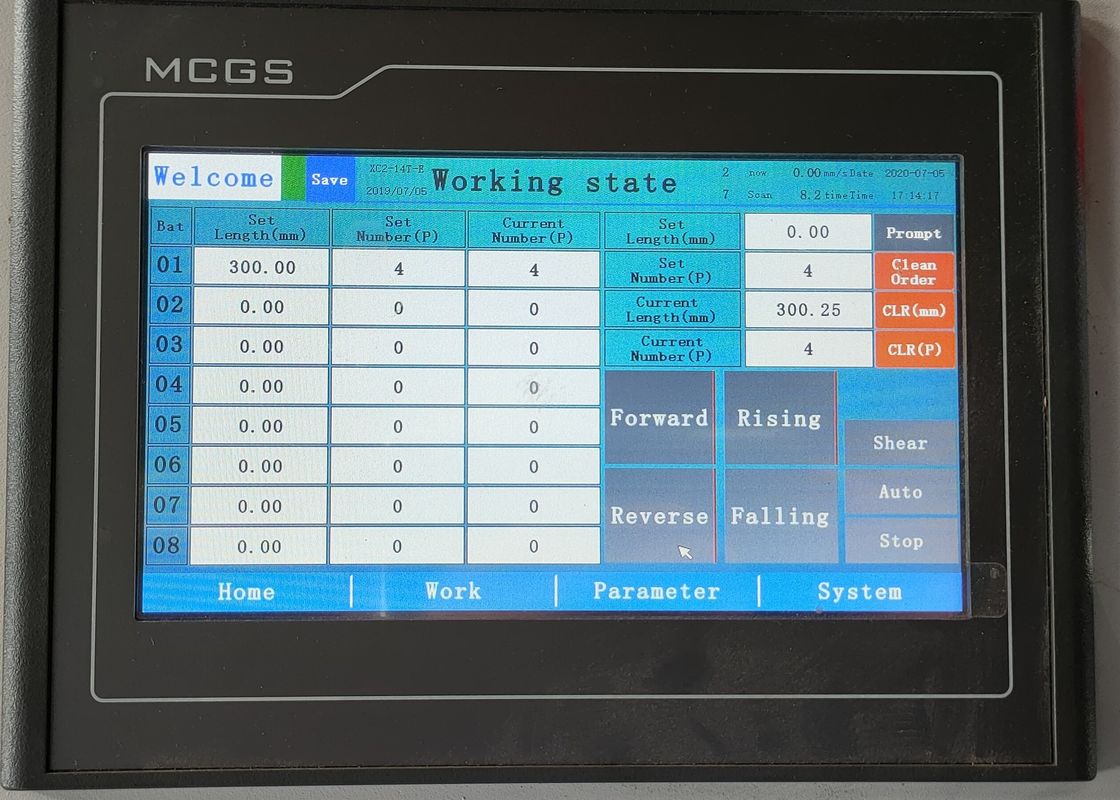

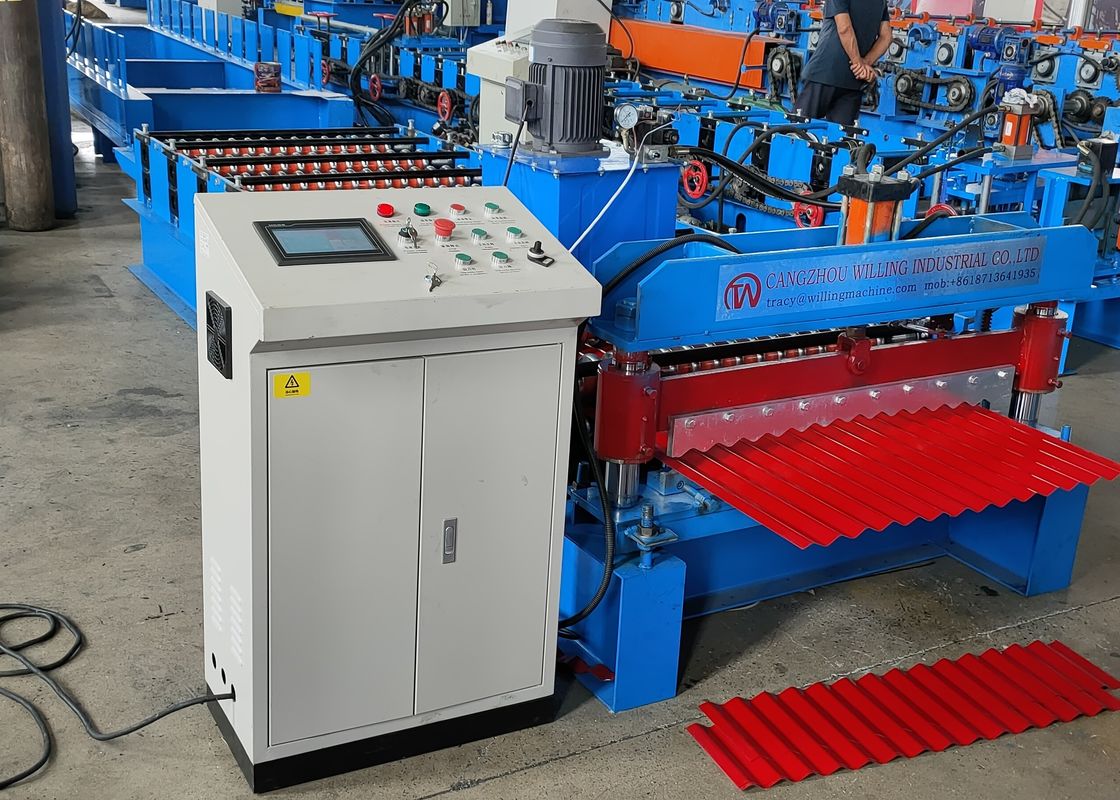

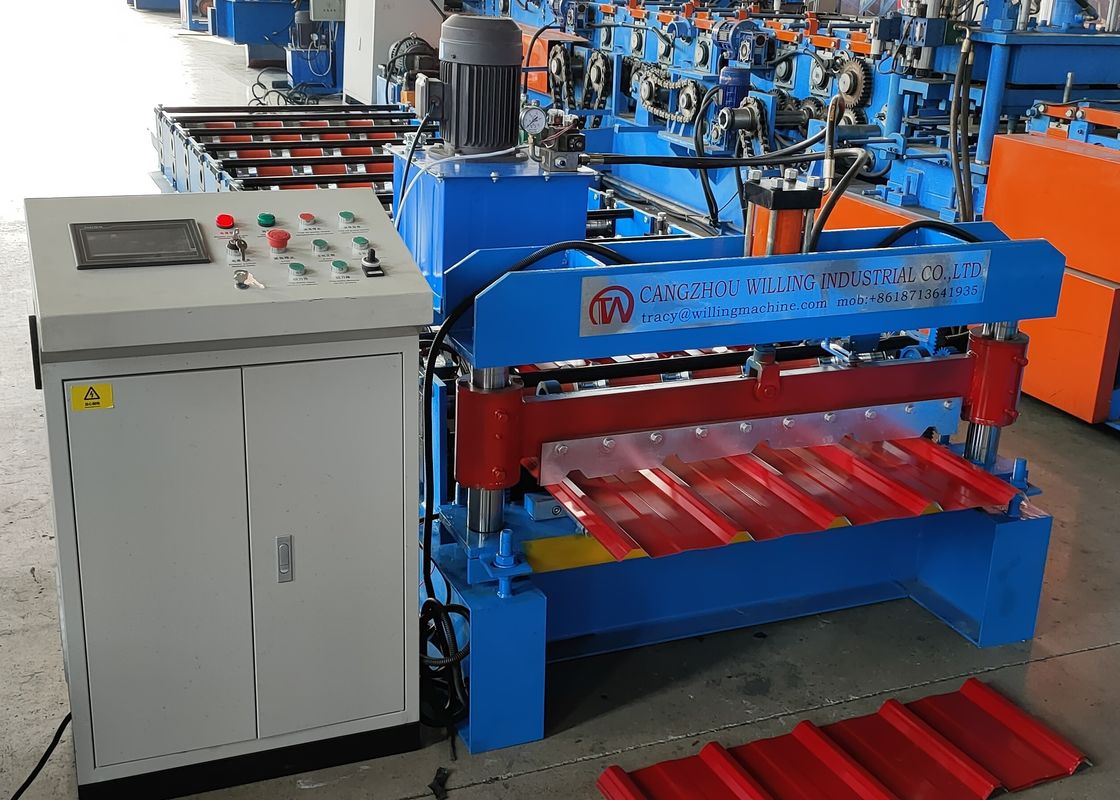

Corrugated 840 Touch Screen Roof Tile Roll Forming Machine
Corrugated 840 Touch Screen Roof Tile Roll Forming Machine is our main model in the African market. The usage rate of its version in Africa is as high as 95%. The machine has high efficiency, low energy consumption and stable operation, which can effectively save customers' time and labor costs.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3mm-0.8mm |
| 3 | Working Speed | 15-20/min |
| 4 | Roller Station | 12 Raws |
| 5 |
Dimension (L*W*H) |
4500 mm*1200 mm*1200 mm |
| 6 | Machine Weight | 3800 KG |
| 7 |

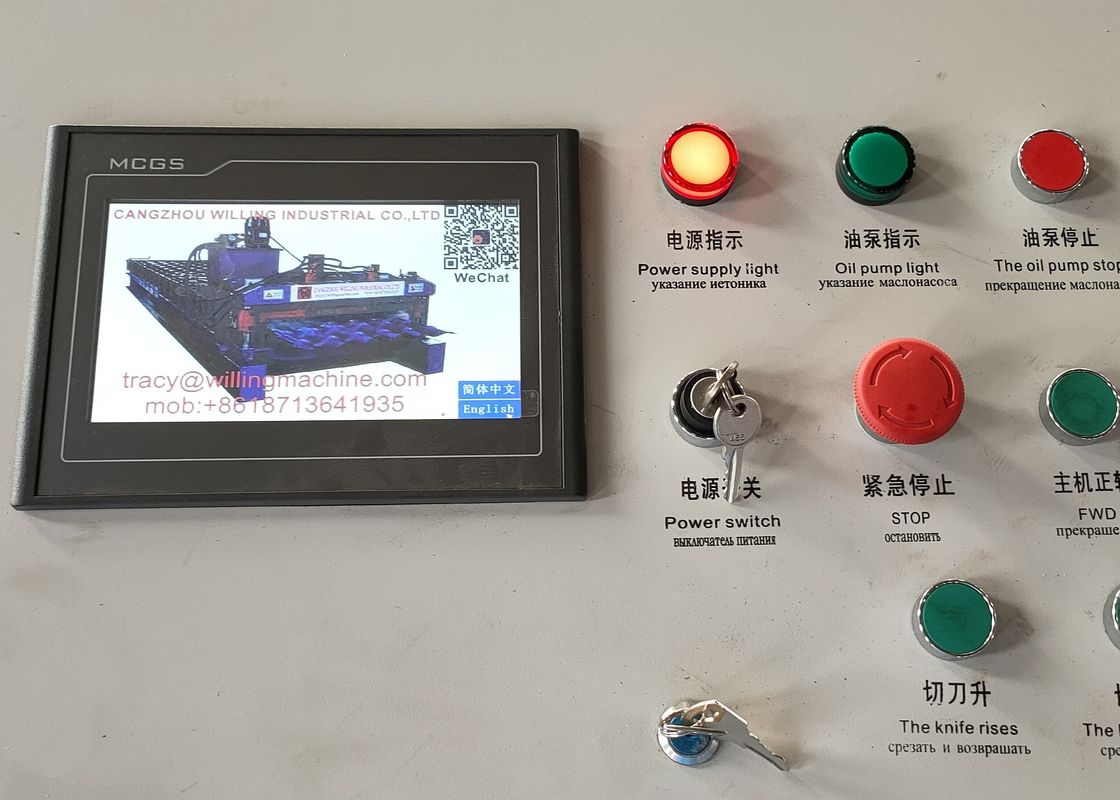

Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
This type of tile is suitable for daily buildings such as warehouses, special buildings, roofs, walls and large-span steel structure houses, etc. The tiles have anti-corrosion and acid-resistant effects. It has light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rainproof, and long life. the service life of this tiles is 10-15 years
Advantage
Cangzhou willing industrial is located in Fuzhuang Development Zone, 104 National Road, Botou City, Cangzhou City, Hebei Province. It is a manufacturer specializing in the design, production and sales of cold-formed machinery and composite board assembly lines. The company covers an area of 14,000 square meters and has 88 employees. , The company has strong strength, perfect quality and perfect after-sales service. It is a professional manufacturer of cold-formed machinery and equipment.
