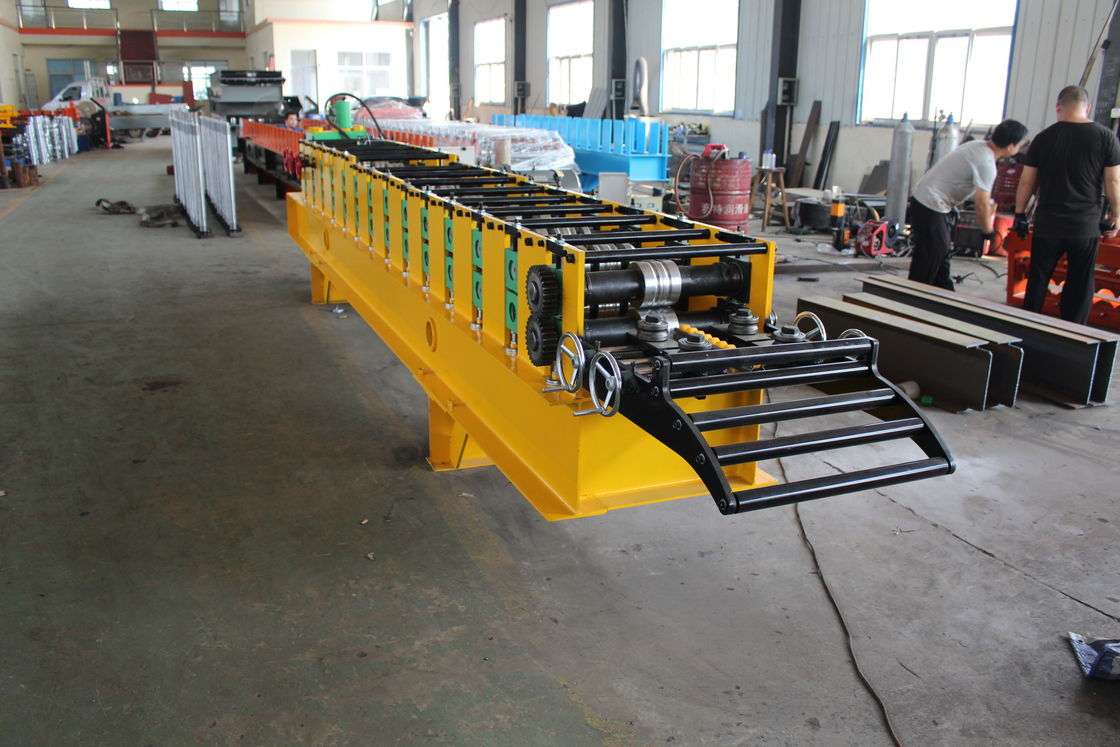

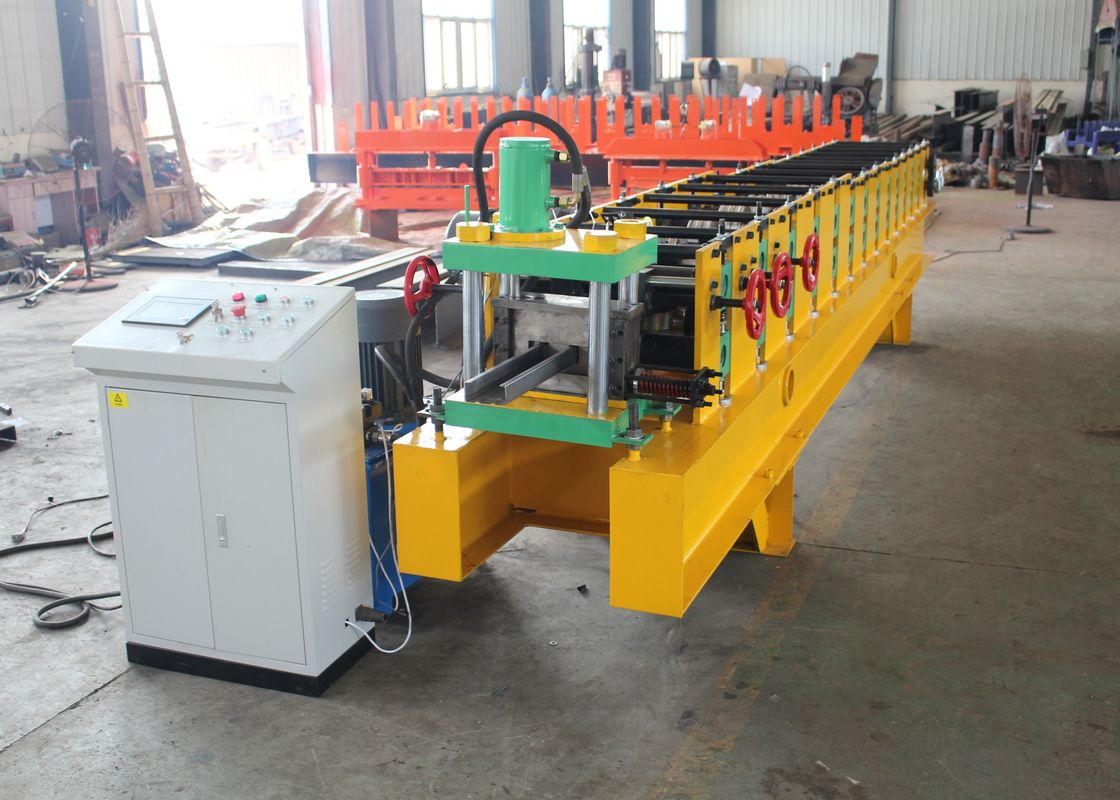

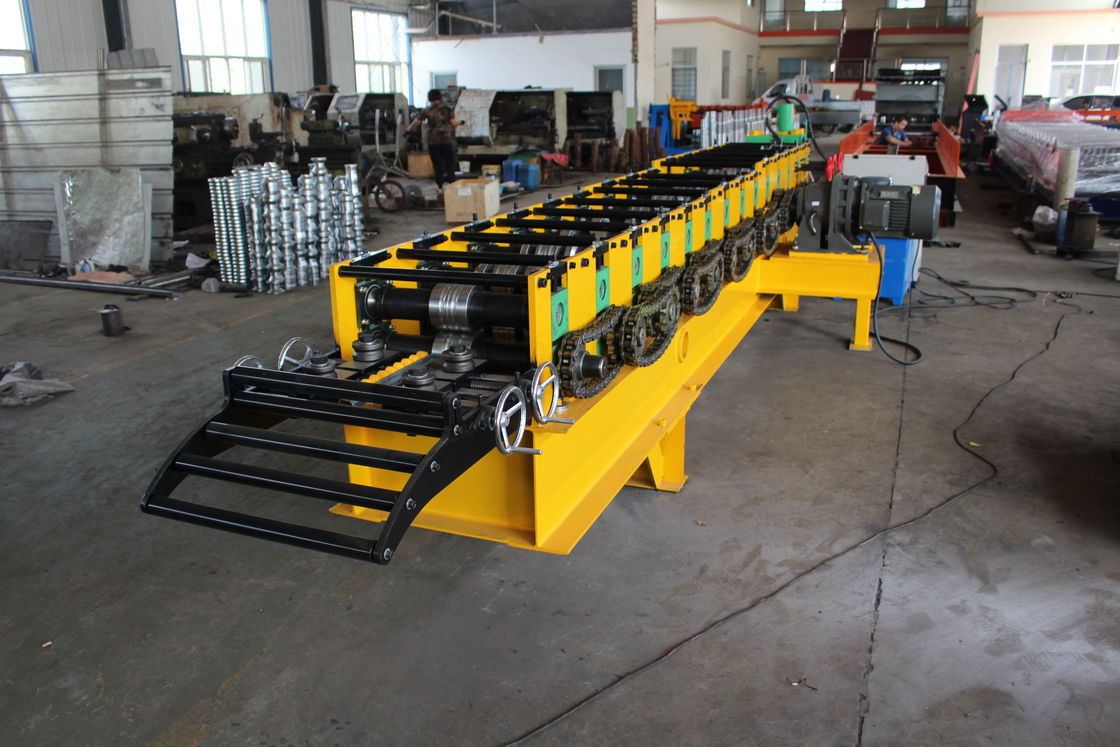

Channel C Stop Cutting System Purlin Roll Forming Machine
Channel C Stop Cutting System Purlin Roll Forming Machine can produce roof slats and ceiling slats of 40mm, 45mm, 60mm and any other size you need.
We can help customers to design machines according to the different requirements of logo punching and embossing, and we can work with customer team to create a good shape with the special characters of customer factory
Specification
| No. | Item | Description |
| 1 | Coil | Galvanized |
| Material Thickness | 1 mm- 3 mm | |
| 3 | Working Speed | 15- 20 m/min ( not including the cutting time) |
| 4 | Roller Station | 14 Raws |
| 5 |
Dimension |
6500*1300*1200 |
| 6 | Machine Weight | 8000 KG |
| 7 |

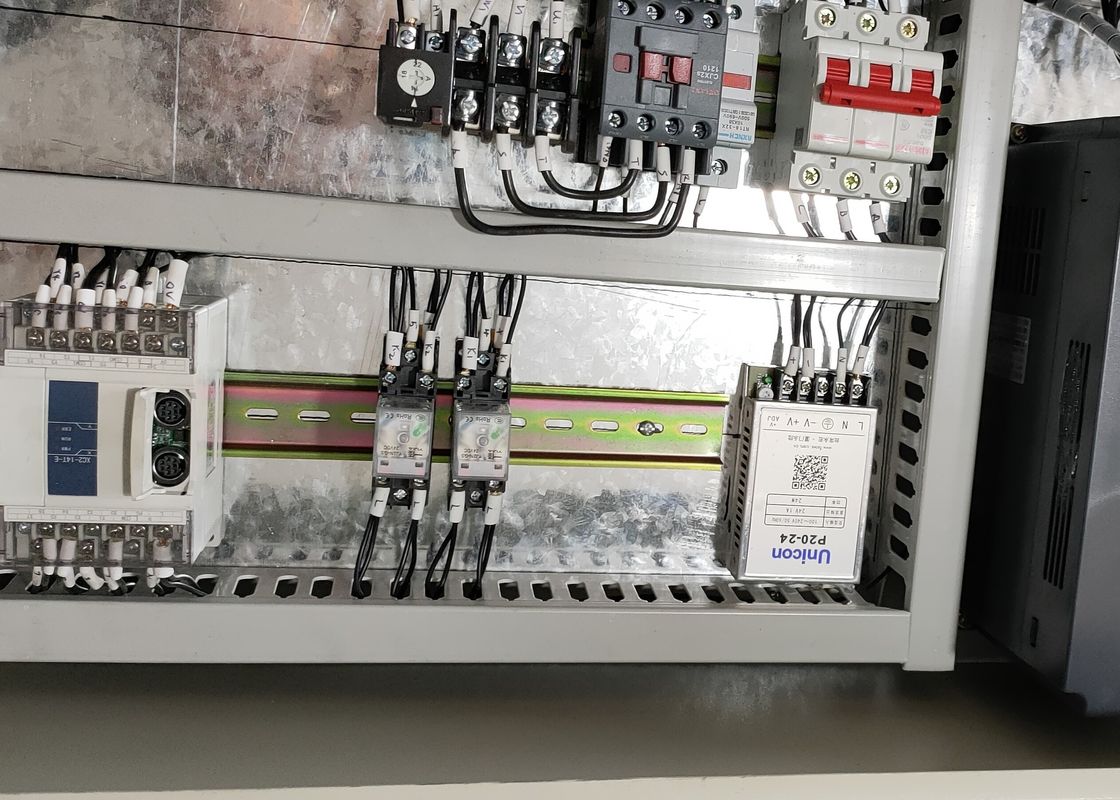

Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
15KW |
| 9 |
Hydraulic Station Power |
15 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 2 inch |
| 13 |
Material of Shaft |
80 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
C-slot machine is used to produce C-type purlins, suitable for hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration, roofs and other places. C slot machine materials are galvanized steel sheet, snowflake sheet, cold rolled steel sheet, etc.
Advantage
The C-channel purlin forming machine adopts a servo motor tracking and cutting system, which can produce 8-15 meters per minute. The body is a column structure with a safety shield. It can effectively prevent workers from being injured during the operation.
