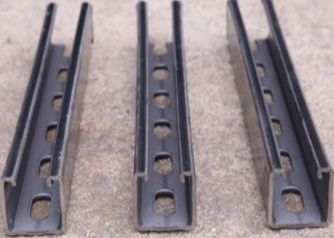

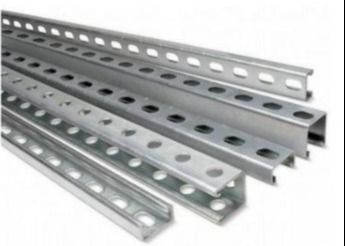

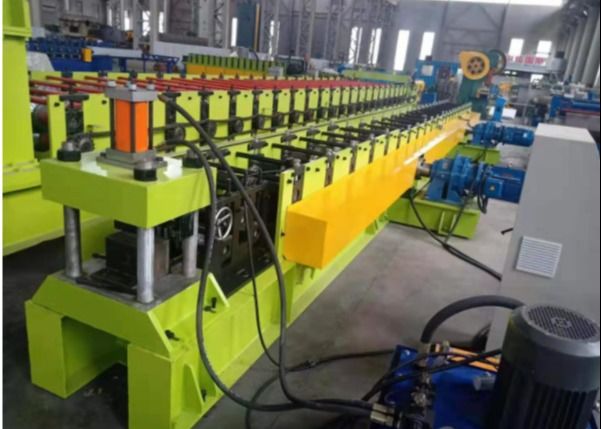

Solar Stand Channel C Roof Tile Roll Forming Machine
Solar energy bracket roll forming machine is used to Production of solar photovoltaic support.It is important to choose a good Solar panel bracket roll forming machine cause Solar energy is a new type of energy, energy saving and environmental protection. Compared with the normal production, the solar energy bracket roll forming machine has a much wider scope and without length limitation. From simple Tracks to complex profiles, we can manufacture custom roll formed products for any industry.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3mm-0.8mm |
| 3 | Working Speed | 10-15/min |
| 4 | Roller Station | 12 Raws |
| 5 |
Dimension (L*W*H) |
4500 mm*1200 mm*1200 mm |
| 6 | Machine Weight | 3800 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application

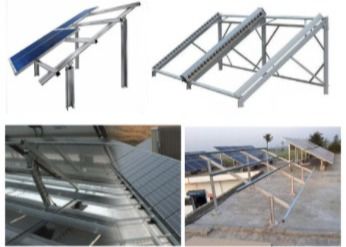

New solar photovoltaic stents is a new type of photovoltaic solar cell, belong to the bracket of photovoltaic solar technology, including concrete column, is installed on the concrete column hoop, installed on the concrete pillars steel column, installed on the steel column tilt shaped beam, connecting beam bottom and embrace hoop before support, support after connecting upper beam and the hoop, A purlin fitted to a beam by purlin.The beneficial effect is that the structure is simple, convenient installation and transportation, has a certain seismic and wind resistance, has the popularization and practical value.The solar scaffold production equipment we provide can complete the production of new solar scaffold, which has been produced and operated in many enterprises and achieved good benefits.
Advantage
Cangzhou Willing roll forming machine co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building.
It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
