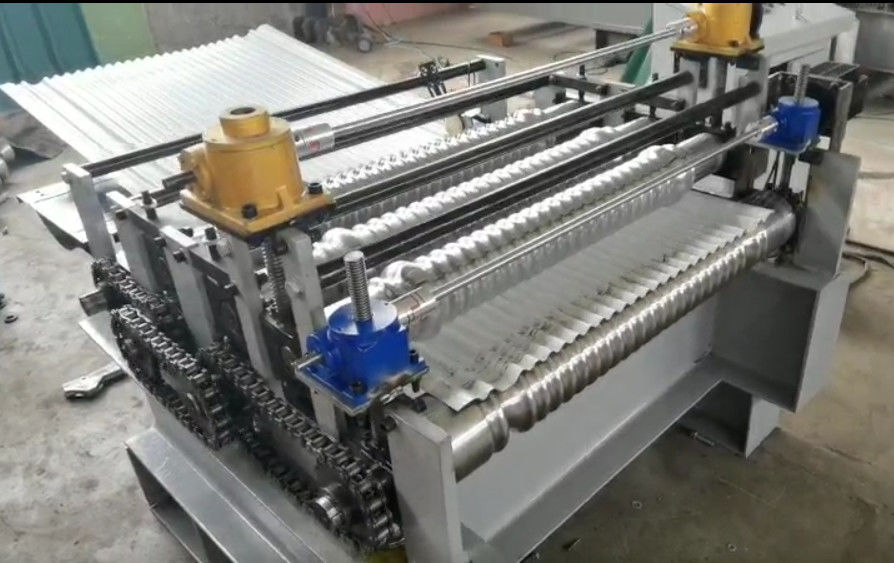

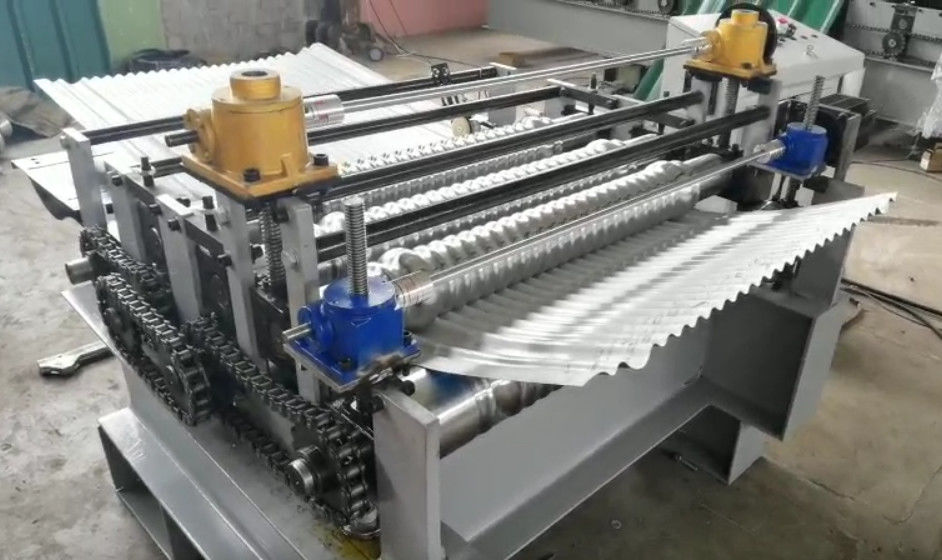

Automatic Crimping Bending Roof Roll Forming Machine
This machine changed the cold pressing method of the previous machine. Use the scroll wheel to change the shape of the roof slab. This production method is suitable for thin and easily damaged panels. Due to its small size, small footprint, and simple operation, this equipment is used by customers to produce roof color steel plates.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 0-15 m/min |
| 4 | Roller Station | 3 Raws |
| 5 |
Dimension (L*W*H) |
2000 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 1000 KG |
| 7 |
Electrical Control System |
Automatic |
| 8 |
Drive Motor Power |
4KW |
| 9 |
Tile type |
bending |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application

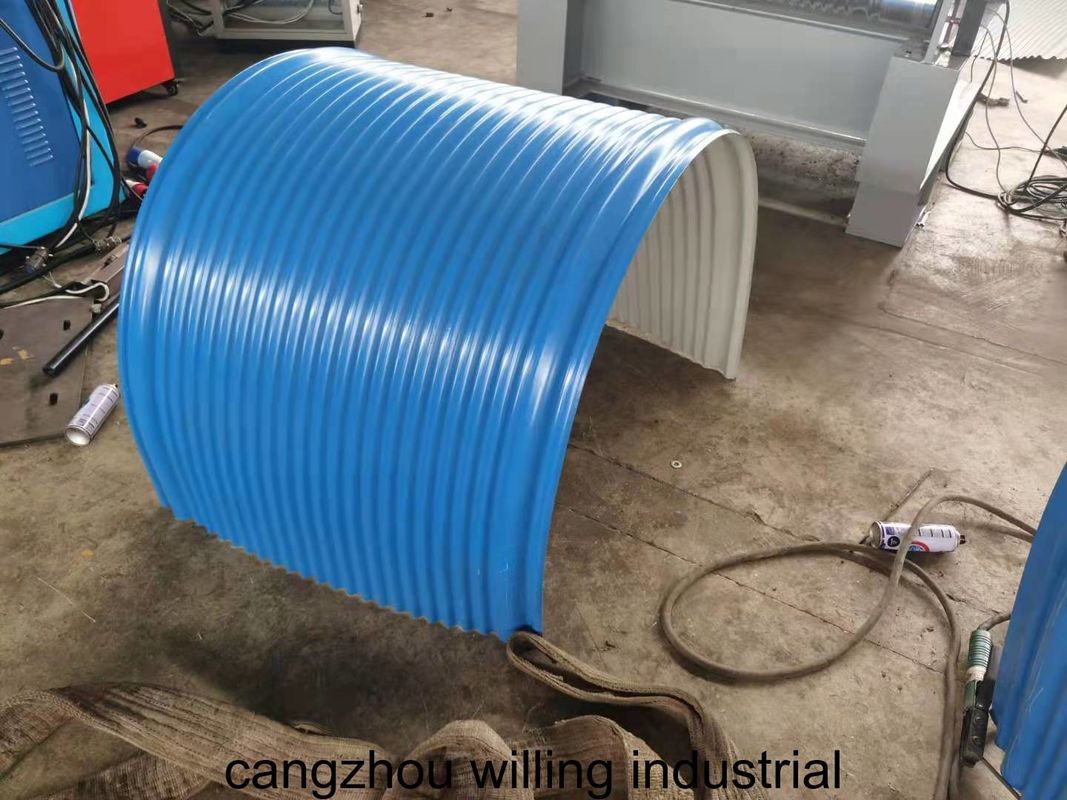

the tiles widely used in garage roofs, workshop roofs, prefab roofs, laboratory roofs, apartment roofs, shopping mall roofs etc.
Advantage
The color steel tile is made of color steel plate and has good carrying capacity. It have extraordinary durability in natural environments, and can maintain color stability even in harsh environments.due to density is small, it does not absorb water, and there is no problem of microporous water seepage. In addition, the color steel roof ridge tile has a large single-layer area, few roof joints, and tight joints, which enhances the waterproof effect.
