उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
CANGZHOU WILLING
प्रमाणन:
ISO, CE
मॉडल संख्या:
लेवलिंग मशीन
वीडियो
वीडियो
वीडियो

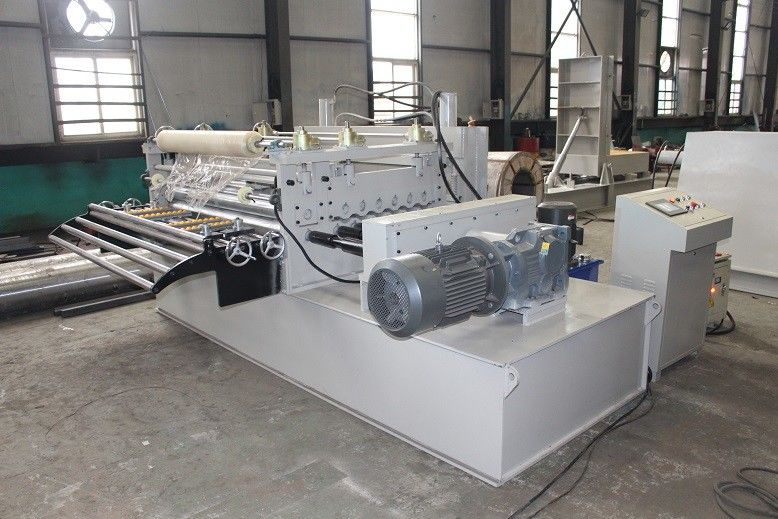

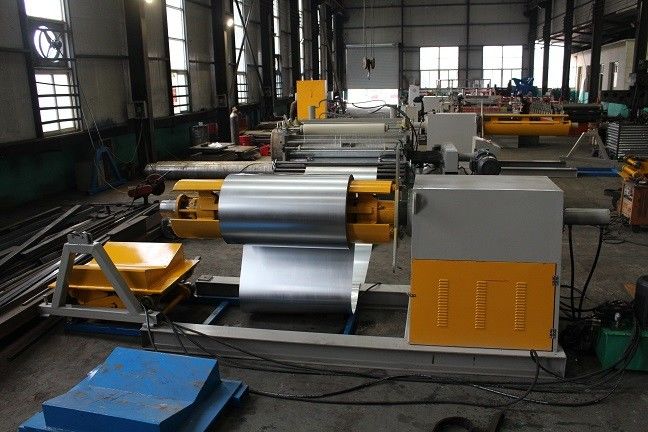

Multi-Function Metal Coil Leveling Slitting And Cut To Length
The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well .
| 1 | Raw Material | Galvanized, Aluminum,Color steel |
| 2 | Raw Material Thickness | 0.3 mm - 3.0 mm |
| 3 | Raw Material Width | 600 mm - 1600 mm |
| 4 | Tape Inner Diameter | φ 480 mm - φ 530 mm |
| 5 | Tape Outer Diameter | φ 1600 mm |
| 6 | Coil Weight | 5 tons - 10 tons |
| 7 | The Highest Speed | 8 m/min - 20 m/min |
| 8 | Cutting Width Precision | ± 0.01 - ± 0.05 mm |
| 9 | Rated Operational Voltage | 380 V, 3 Phase, 60 Hz |
| 10 | Total Weight | 13000 KG |
| 11 | Working Space(L*W) | 20000 mm*6000 mm |
Application
A series of processing operations are carried out on the sheet metal, usually with slitting and winding machinery. Form a complete unwinding and rewinding production line.
Advantage
The main components of the hydraulic system of the production line adopt high-precision components, and the electrical control adopts imported PLC program controller and touch screen for full-line functional control. It has the characteristics of high automation, good leveling quality, high cutting precision, stable and reliable performance, and convenient operation and maintenance. , One-time loading of coil material can realize the smooth completion of each process, effectively reduce the labor intensity of workers, and has a high cost performance. It is a high-performance product integrating machinery, electricity and hydraulics.
