उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
CANGZHOU WILLING
प्रमाणन:
ISO CE
मॉडल संख्या:
आईबीआर 900 प्रोफाइल
वीडियो
वीडियो
वीडियो

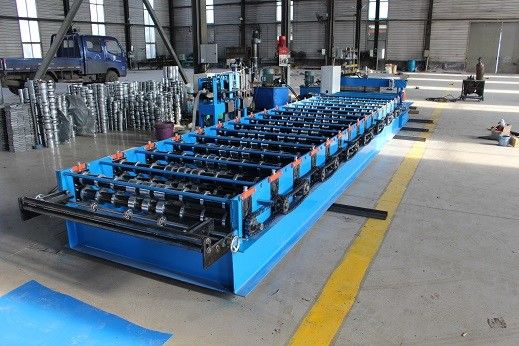

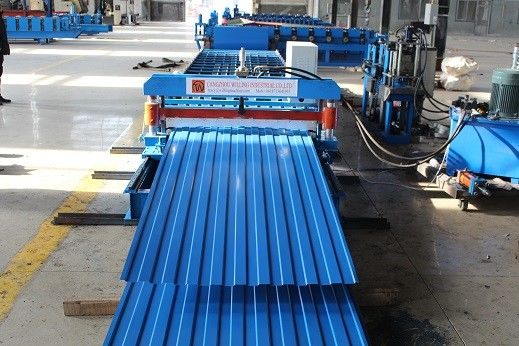

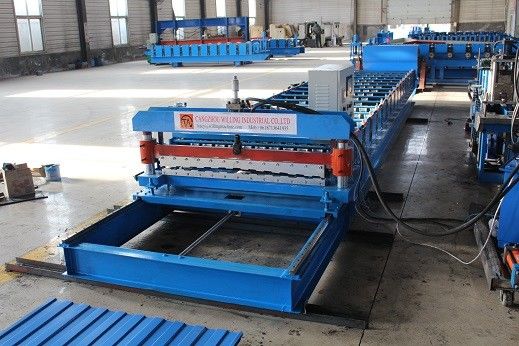

IBR 900 Trapezoid Hydraulic Shear Roof Roll Forming Machine

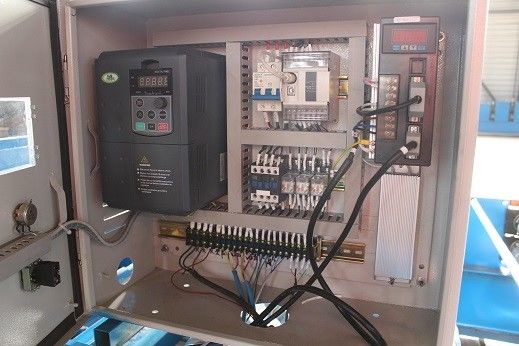

IBR 900 Trapezoid Hydraulic Shear Roof Roll Forming Machine is accompanied by the efficient integration of PLC computer control system, hydraulic pump station system, and fully automatic post-shearing system. So as to efficiently meet the different needs of customers
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 20-30 m/min ( not including the cutting time) |
| 4 | Roller Station | 12 Raws |
| 5 |
Dimension (L*W*H) |
58000 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
3.5KW |
| 9 |
Hydraulic Station Power |
3.5KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The color steel plate products produced by IBR 900 Trapezoid Hydraulic Shear Roof Roll Forming Machineare widely used in construction household appliances and transportation industries. For the construction industry, they are mainly used for the roof walls and doors of industrial and commercial buildings such as steel structure factories, airports, warehouses, and refrigeration. Fewer color steel plates are used in buildings.
Advantage
The advantages of color steel plates are good corrosion resistance, bright colors, beautiful appearance, convenient processing and forming, and have the advantages of the original strength of steel plates and low cost.
