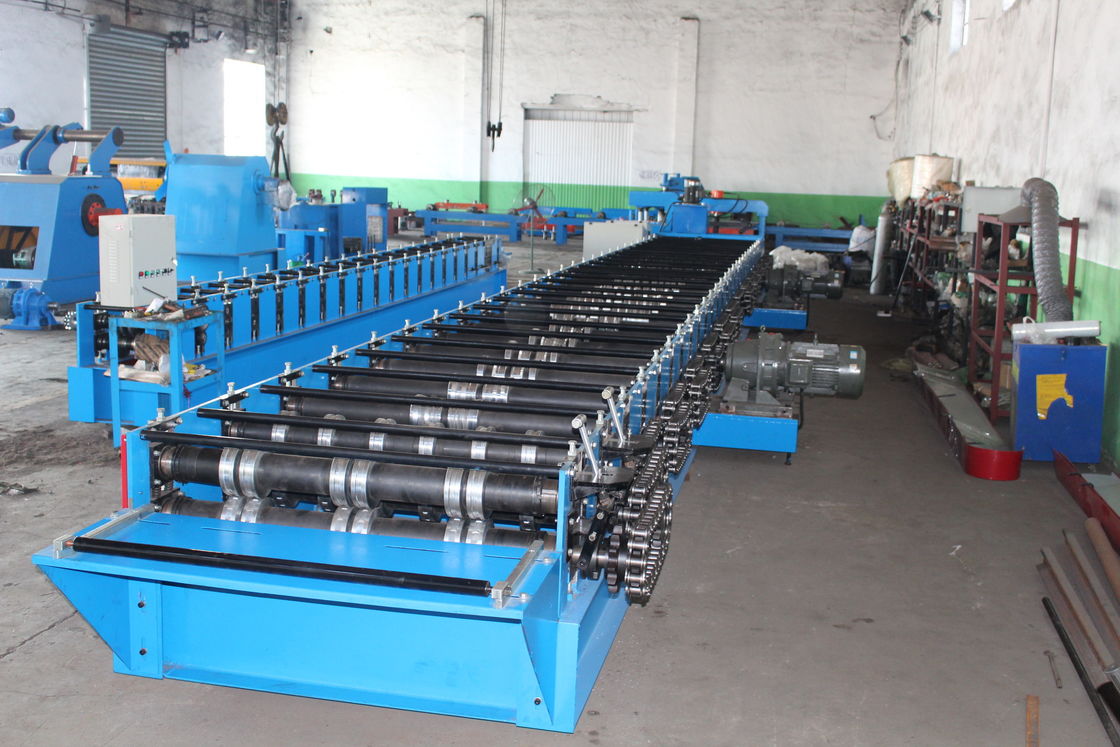

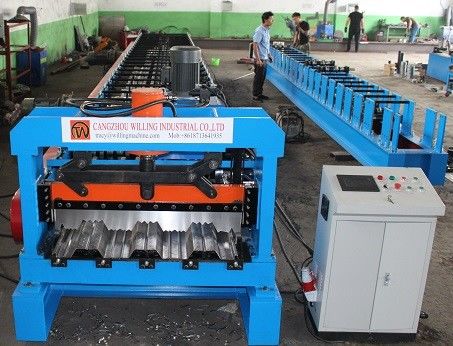

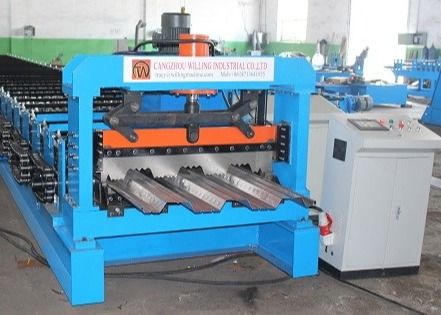

915 Metal Deck Galvanized Embossing Sheet Roll Forming Machine
The floor deck roll forming machine can form the flat sheet into a customized shape, the material of floor deck sheet is galvanized steel.The steel floor deck is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops,cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets,logistics centers, Olympic venues and gymnasium Steel structures.Adapting to the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time,and can be used to lay the profiled steel plate on multiple floors, and the flow water construction of the layered concrete slab.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 15-25/min |
| 4 | Roller Station | 18 Raws |
| 5 |
Dimension (L*W*H) |
7500 mm*1200 mm*1200 mm |
| 6 | Machine Weight | 4500 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The deck is beautiful in appearance, reasonable in structure, sturdy and durable. It is widely used in various industrial plants, gymnasiums, warehouses, cold storage, containerized mobile board houses, fixed board houses, villas, residential buildings, and various building additions and other large and medium-sized plants. The design and installation have won unanimous praise from users.
Advantage
The open floor deck has light weight, high strength, good load-bearing resistance, simple and fast construction, and convenient assembly. It replaces the traditional model and improves the shortcomings of the traditional model
