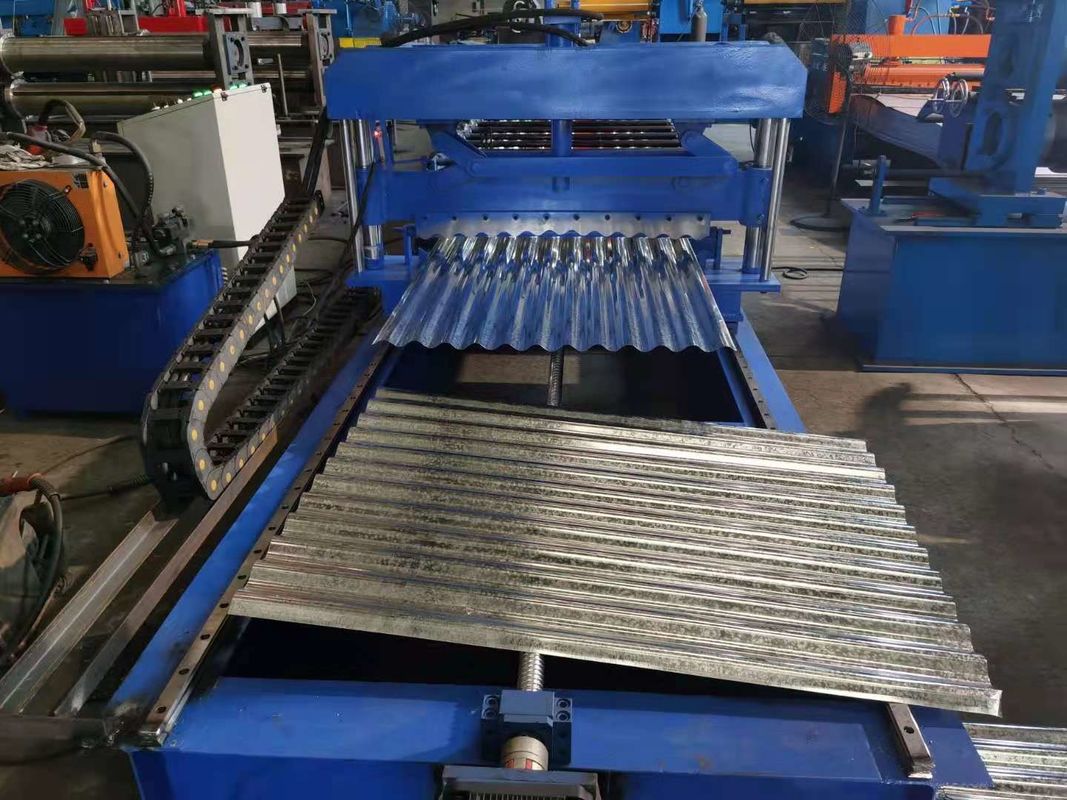

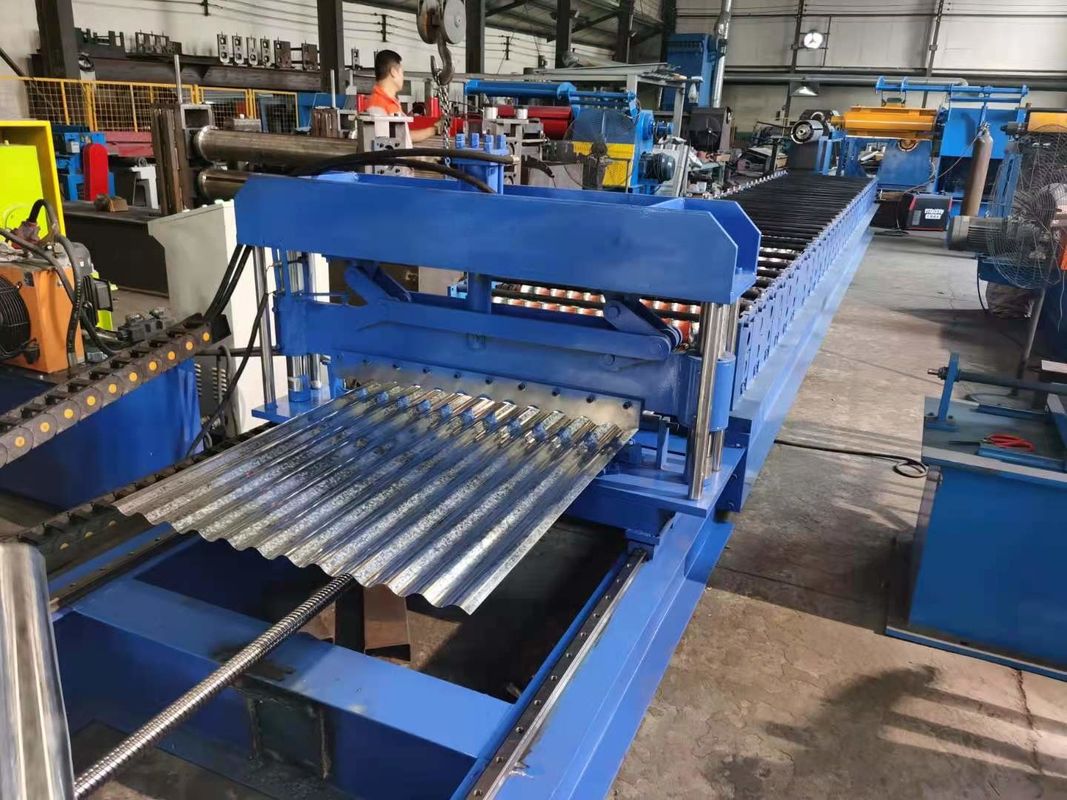

Flying Cut System Corrugated Roof Roll Forming Machine

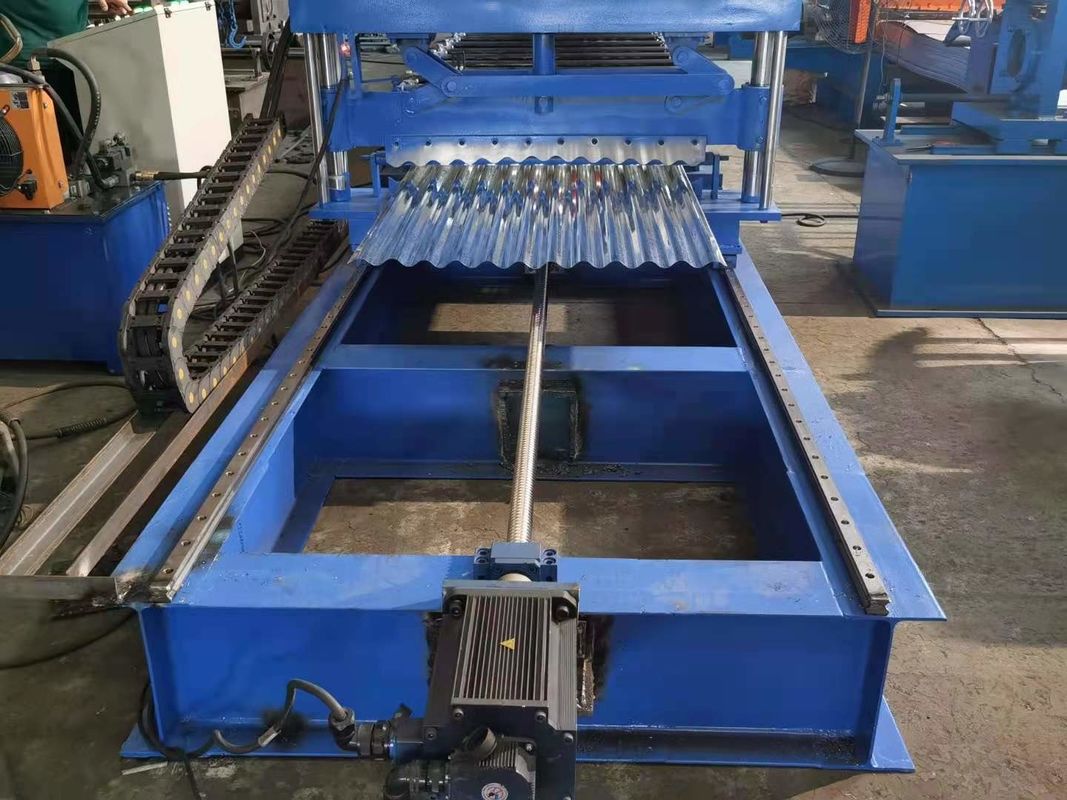

The machine is equipped with a tracking shear system. The flying shear system automatically generates numerical commands to drive the shearing machine according to the cutting length and feed speed. When the "feed length" is close to the "set length" position, the shearing machine will accelerate or decelerate. While accurately positioning the cutting position, the shearing machine and the material realize the speed synchronization to realize the cutting.
Equipment Detailed Parameters:
|
1 |
Suitable Material | PPGI (235Mpa) |
|
2 |
Width of the raw material | 1250mm |
| 3 | Rows of rollers | 15 rows & 16 rows |
| 4 | Dimension | 9500*1550*1200mm |
| 5 |
Main servo |
7.5kw |
| 6 | Hydraulic station power | 11kw |
| 7 | Thickness of raw material | 0.3-0.8mm |
|
8 |
Productivity |
20-25m/min |
| 9 | Diameter of shaft | ￠75mm |
|
10 |
Voltage | 380V 50Hz 3phases |
| 11 | Frame | 350H steel |
| 112 | Middle plate | 16mm |
Application
The color steel produced by the above machines is suitable for industrial and civil buildings, warehouses, laboratories, roofs, walls, large-span steel structure houses, and construction site guardrails.
