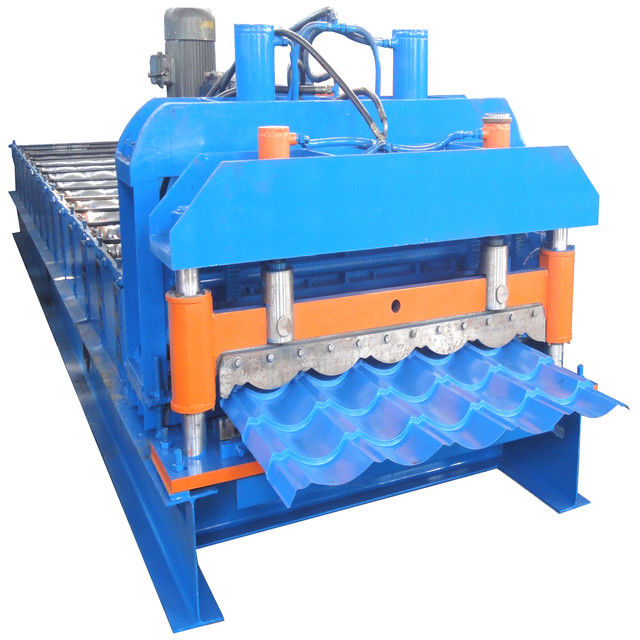

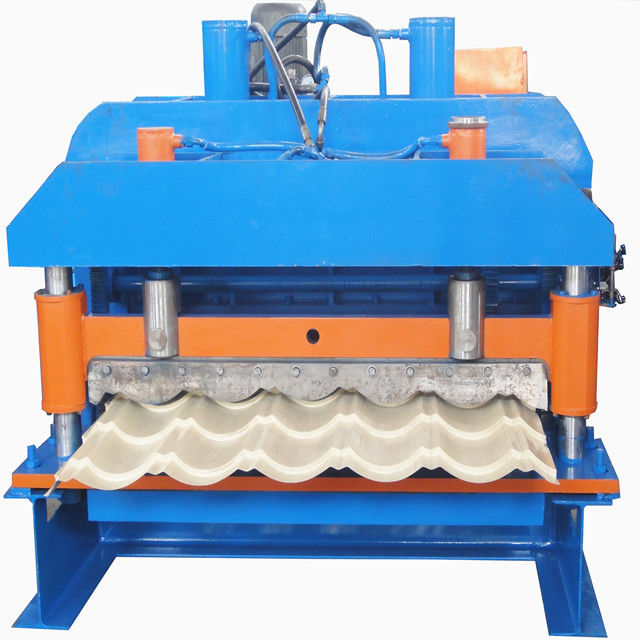

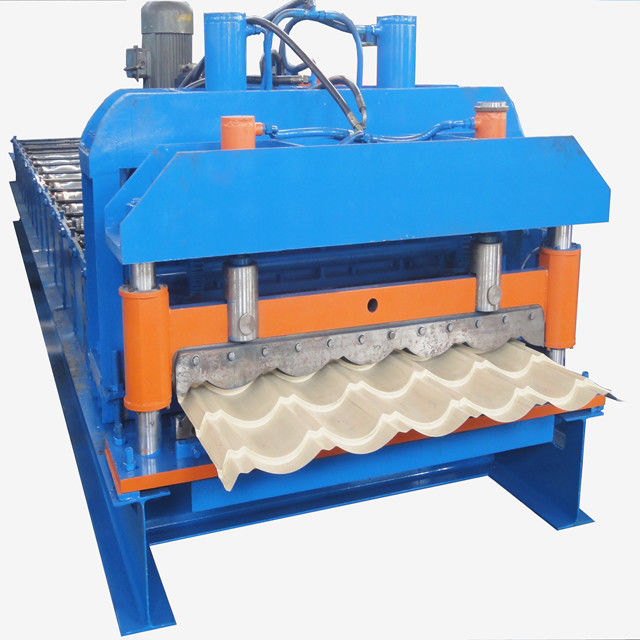

Model 640 Glazed Steptile Roof Tile Roll Forming Machine
Model 640 Glazed Steptile Roof Tile Roll Forming Machine adopts hydraulic creasing and hydraulic shearing has high efficiency, low energy consumption and stable operation, which can effectively save customers' time and labor costs.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3mm-0.8mm |
| 3 | Working Speed | 15-20/min |
| 4 | Roller Station | 16 Raws |
| 5 |
Dimension (L*W*H) |
4500 mm*1200 mm*1200 mm |
| 6 | Machine Weight | 3800 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Such tiles are suitable for daily buildings such as warehouses, special buildings, roofs, building materials stores, production workshops, farms, construction sites, walls and large-span steel structure houses.
Advantage
Ceramic tiles have anti-corrosion, acid resistance and other functions. It has the advantages of light weight, high strength, beautiful appearance, convenient and quick construction, earthquake resistance, fire resistance, rain and moisture resistance. Long life and other characteristics, so it is widely used in civil and industrial buildings
