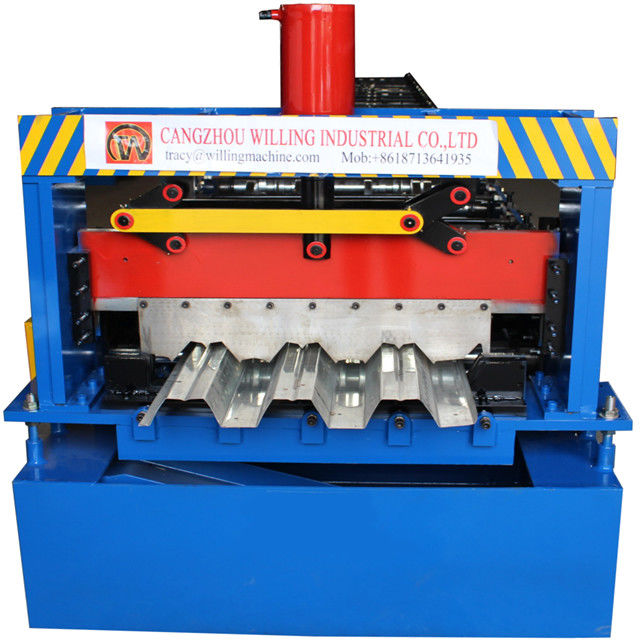

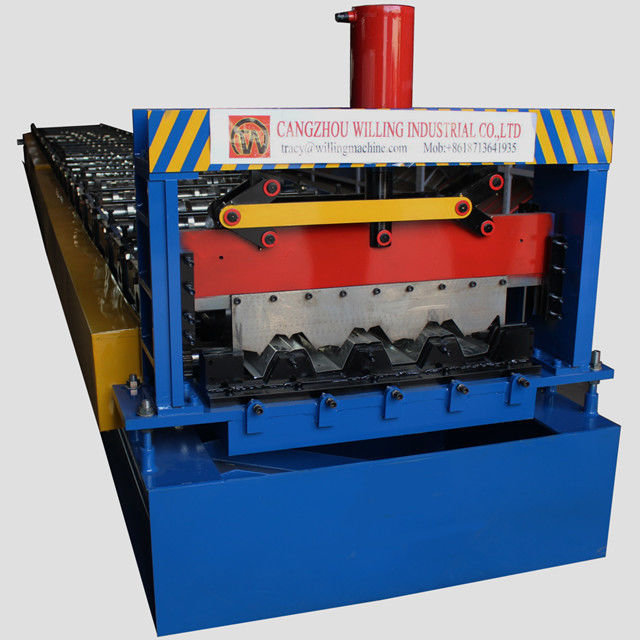

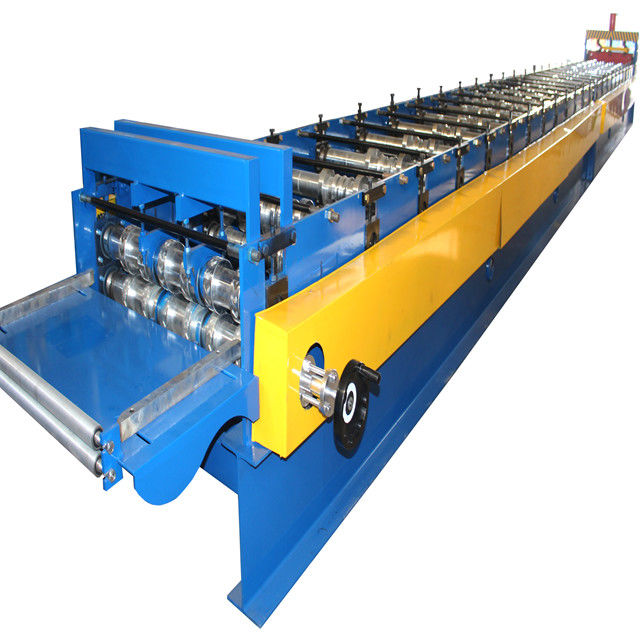

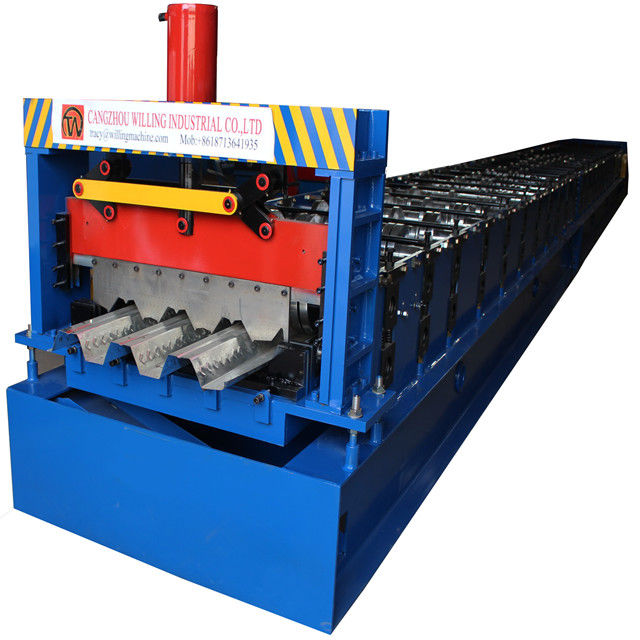

Metal Embossing Floor Deck Roll Forming Machine
It is widely used in multi-story and high-rise steel structures, and is the most widely used floor method in domestic multi-story and high-rise steel structures (profiled steel plate-concrete composite structure). It adopts hot-dip galvanized steel sheet to be formed by rolling and cold bending. Its characteristics are construction, convenience and short construction period, saving steel bars, double as steel formwork, low cost and so on.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 20-30 GA |
| 3 | Working Speed | 3-5 m/min ( not including the cutting time) |
| 4 | Roller Station | 16 Raws |
| 5 |
Dimension (L*W*H) |
7500 mm*1500 mm*1500 mm |
| 6 | Machine Weight | 5800 KG |
| 7 |
Electrical Control System |
Panasonic PLC (can be customized) |
| 8 |
Drive Motor Power |
7 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
240V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Floor deck tile press, roll forming floor deck has the advantages of light weight, heavy bearing, beautiful appearance, seamless, good, and convenient installation. It has been widely used in power plants, power equipment companies, automobile exhibition halls, and steel Structural workshops, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues, stadiums and many other steel structure buildings
Advantage
1. Stable performance: The steel plate decoiler has uniform feeding speed and high stability.
2. Work: hydraulic synchronization and hydraulic punching system, improve work efficiency, precision and quality of finished products.
3. Good quality of the finished product: the floor deck produced by it is light in weight, heavy in load, and good in performance.
