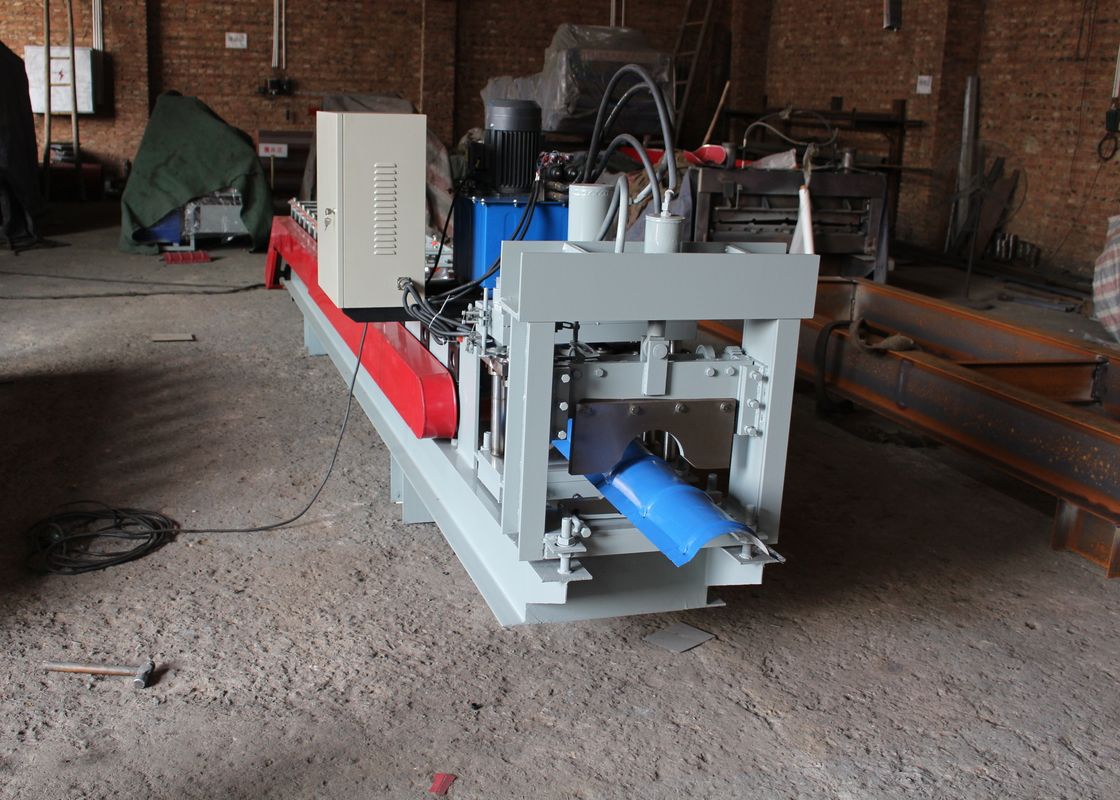

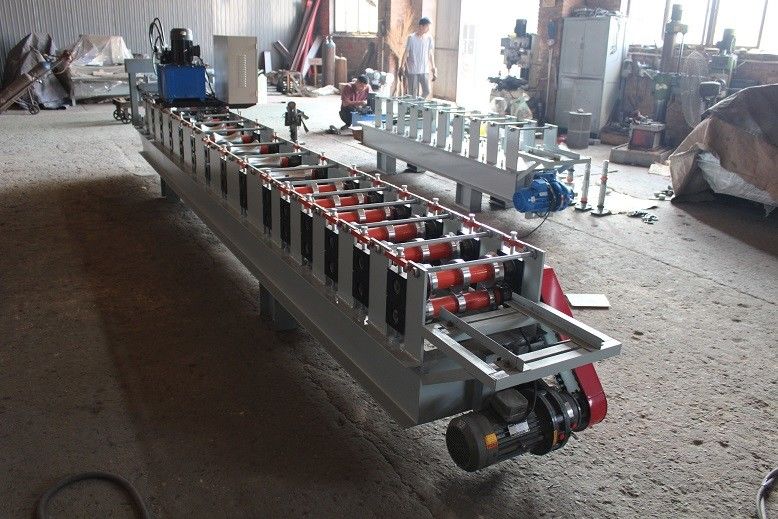

Anti Corrosion And Waterproof Roof Tile Ridge Roof Roll Forming Machine

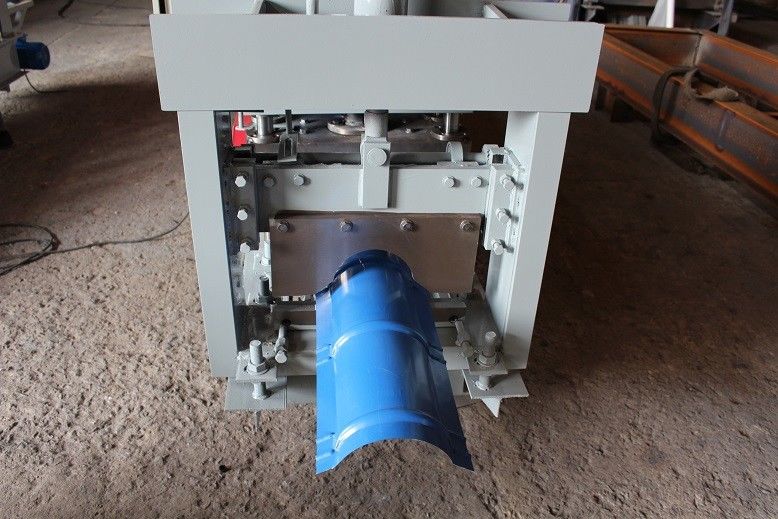

The ridge tile forming equipment adopts roller forming technology and is used for hydraulic forming with a die. Products are widely used in the roof connection of building color steel plates. The host adopts programmable controller and touch screen control, and the speed is continuously adjustable. Fully automatic length setting and cutting, easy to operate. This machine can be customized according to customer requirements
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.9mm |
| 3 | Working Speed | 15-20 m/min ( not including the cutting time) |
| 4 | Roller Station | 12 Raws |
| 5 |
Dimension (L*W*H) |
58000 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
4KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |

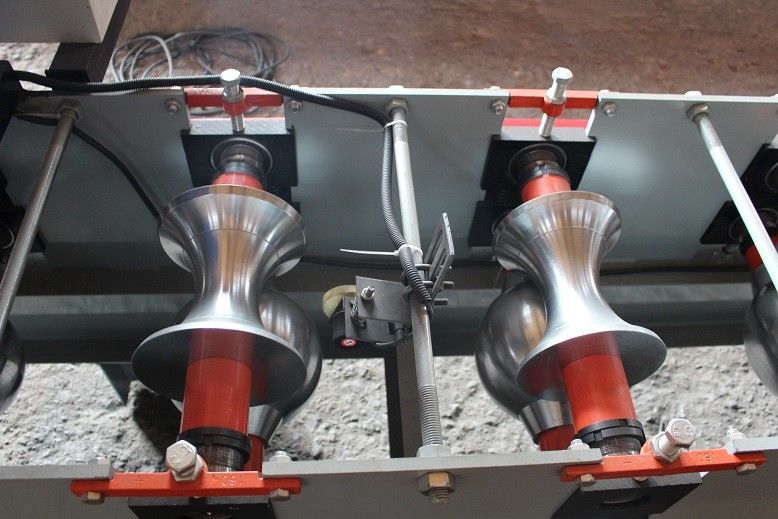

| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
It is widely used in the production of various industrial plants, houses, warehouses and simple steel shed roof ridge tiles, and is beautiful and durable.
Advantage
The ridge tile forming machine can be produced continuously like other roll forming machines, replacing the tedious process of making ridge tiles with a bending machine, saving human resources and greatly reducing labor costs.
