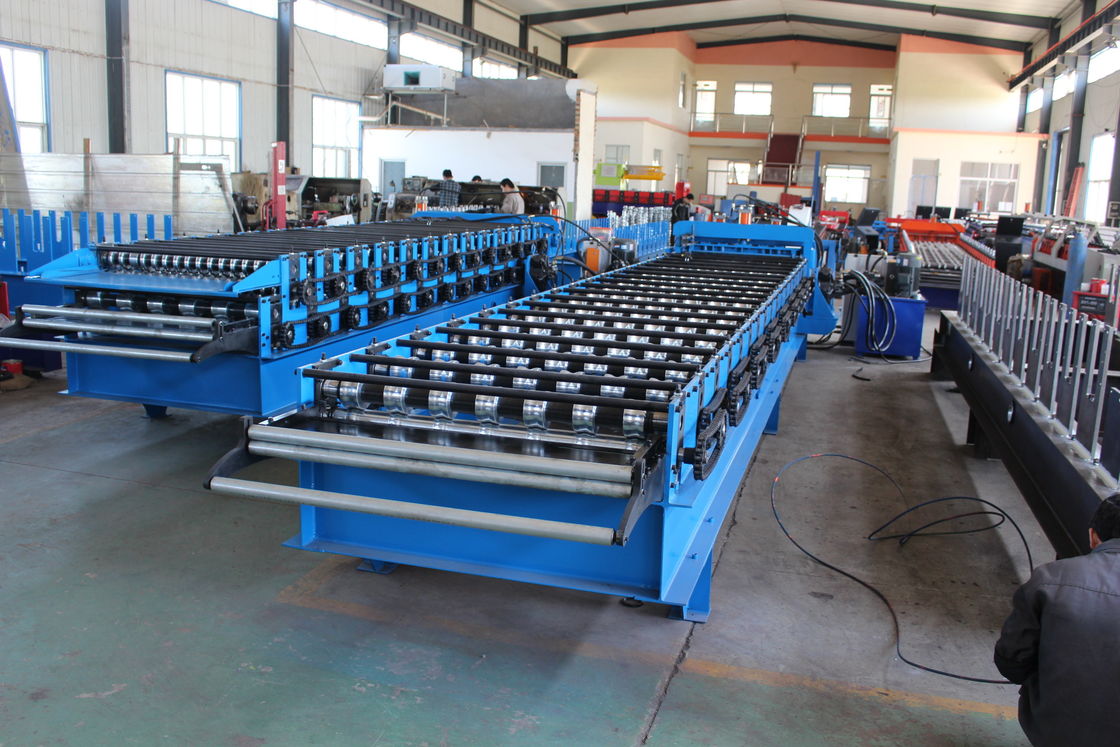

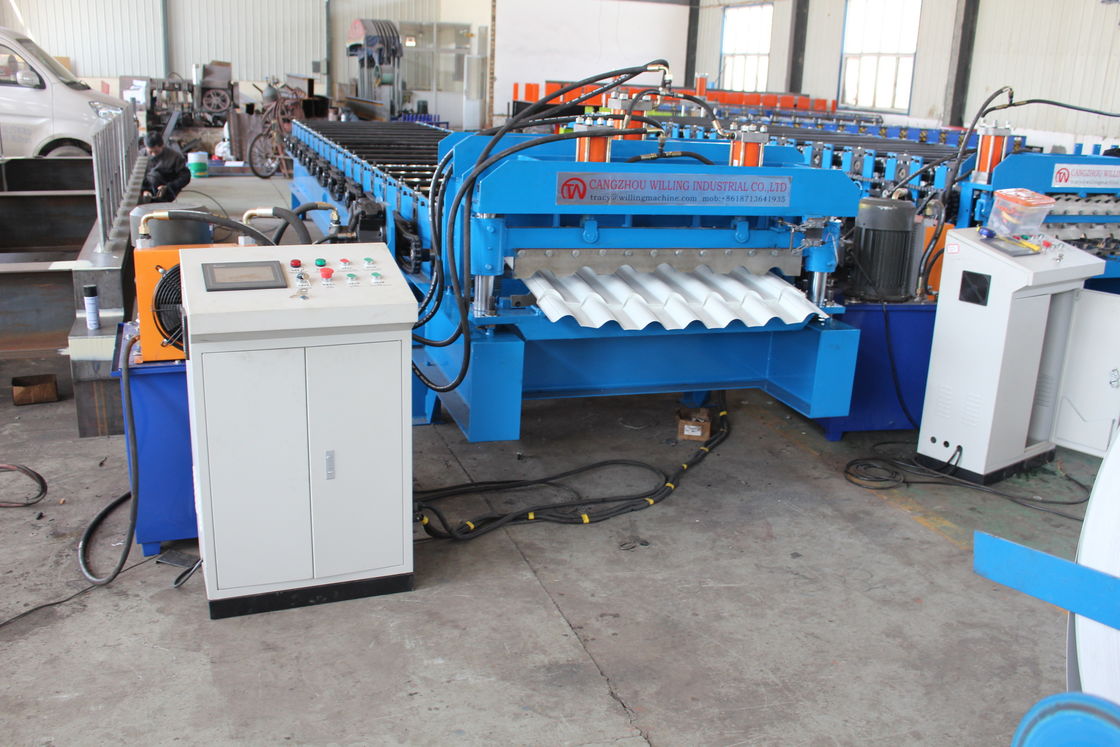

Arc Sheet Aluminium Step Tiles Roof Roll Forming Machine
Arc Sheet Aluminium Step Tiles Roof Roll Forming Machine adopts a fully automatic hydraulic creasing and hydraulic shearing system, which has fast production speed and stable operation, which can effectively save customers' time and labor costs.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3mm-0.8mm |
| 3 | Working Speed | 8-15/min |
| 4 | Roller Station | 16 Raws |
| 5 |
Dimension (L*W*H) |
5000 mm*1200 mm*1200 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Due to its good appearance, anti-corrosion and acid resistance, such tiles are mostly used in daily buildings such as warehouses, roofs, building materials stores, production workshops, farms, construction sites, walls and large-span steel structure houses.
Advantage
This version is generally used in many types of buildings, roofs, walls and interior and exterior wall decorations of large-span steel structure houses, etc. It has light texture, rich color, convenient and fast construction, good seismic effect, and long service life. , Maintenance-free and other advantages, has now been widely promoted.
