उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
CANGZHOU WILLING
प्रमाणन:
ISO CE
मॉडल संख्या:
कोण विश्राम
वीडियो
वीडियो
वीडियो

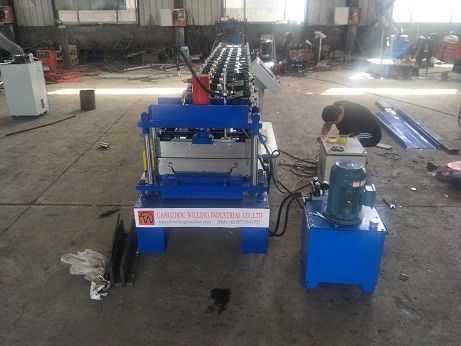

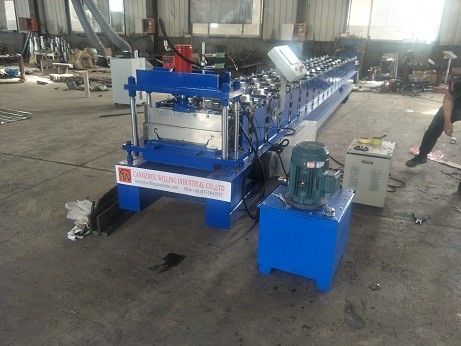

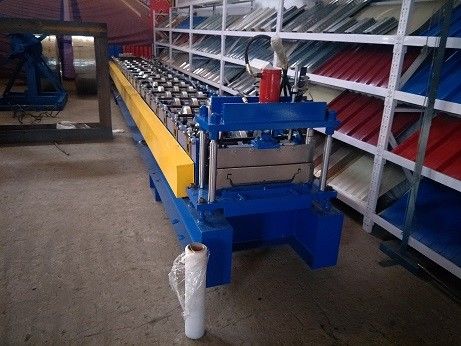

Automatic Control System Standing Seam Selflock Roll Forming Machine
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI |
| 2 | Raw Material Thickness | 0.3 mm - 0.9 mm |
| 3 | Working Speed | 8-10 m/min |
| 4 | Roller Station | 20 Stations |
| 5 |
Dimension (L*W*H) |
9200 mm*800 mm*1200 mm |
| 6 | Machine Weight | 9000 KG |
| 7 |
Electrical Control System |
PLC (can be customized) |
| 8 |
Drive Motor Power |
5.5 KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The profiled board produced by the type Automatic Control System Standing Seam Selflock Roll Forming Machine solves the roof leakage problem of the conventional series of profiled boards. The connection of the profiled board breaks the convention of traditional roof bolt connection. The installation method adopts 45-degree lock bite installation, so that The roof effect is more compact.
Advantage
Our company is equipped with a professional design team. With many years of production experience, we can customize corresponding machines for customers according to customer drawings to meet customers' special requirements for plate, thickness and shape.
