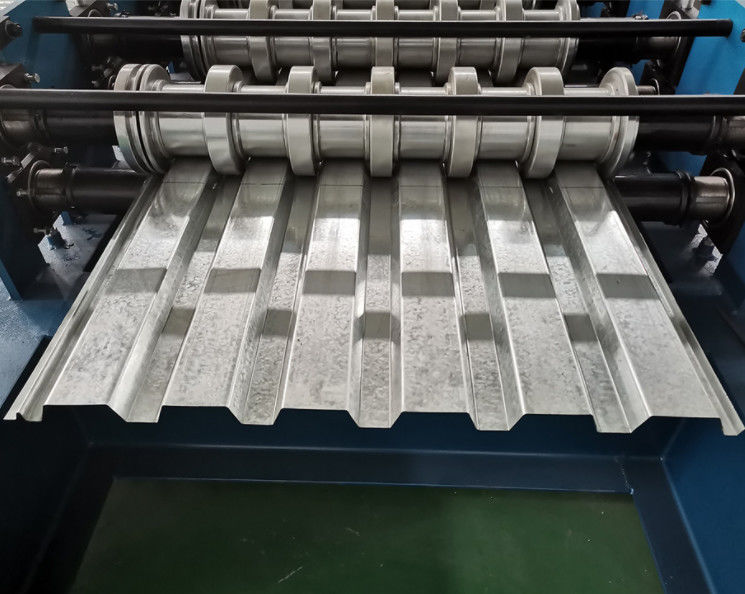

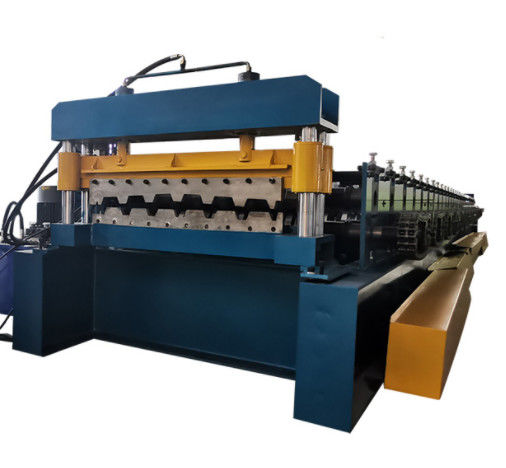

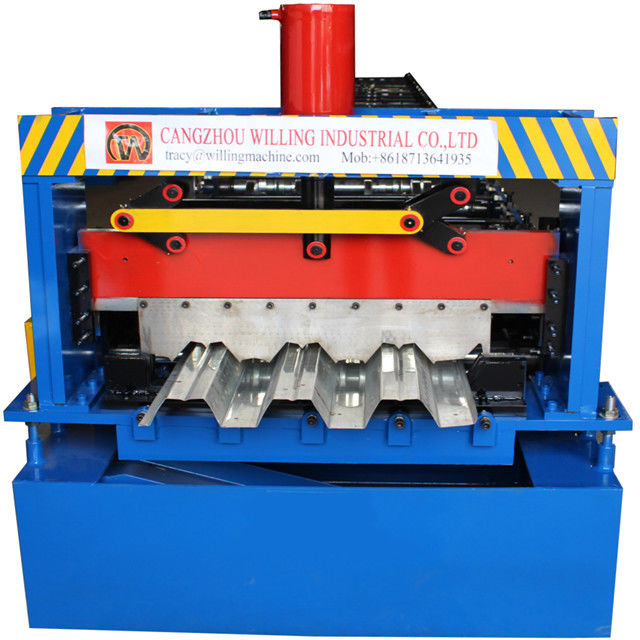

trapezoidal profile colored metal Floor Deck Roll Forming Machine
The Floor deck roll forming machine is a special production line equipment specially designed for the metal sheet cold forming processing industry. It can carry out continuous rolling production according to the requirements of users, automatically fix the length, and shut down the machine. This production equipment has the characteristics of low noise, stable transmission, convenient operation and beautiful rolling products.

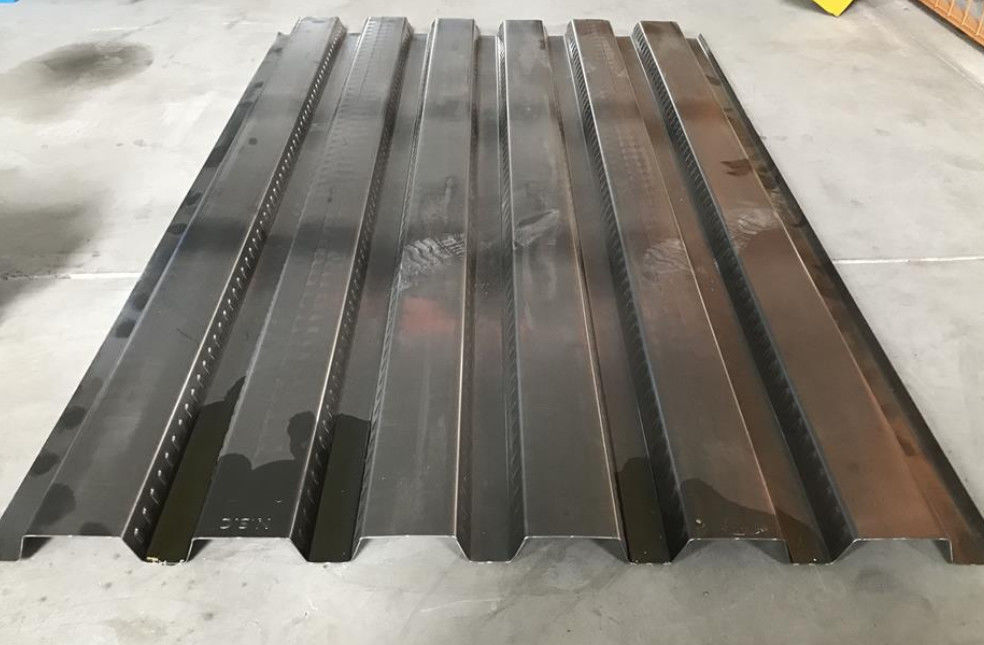

In short,Roof decking floor profiles are typically used as the structural component. The steel decking floor is a cold-formed steel sheet. Metal Decking use in roof and floor systems for supporting the concrete or insulating membrane of a roof. Its design and construction magnify properties of the steel.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-1.5mm |
| 3 | Working Speed | 3-5 m/min ( not including the cutting time) |
| 4 | Roller Station | 16 Raws |
| 5 |
Dimension (L*W*H) |
7500 mm*1500 mm*1500 mm |
| 6 | Machine Weight | 5800 KG |
| 7 |
Electrical Control System |
Panasonic PLC (can be customized) |
| 8 |
Drive Motor Power |
7 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
240V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Floor deck forming machine is suitable for all kinds of irregular floor construction, and has very prominent application fields in different types of prefabricated panels and high-speed railway structures and buildings. There are many advantages in the use of floor decks, which can help users save installation costs and reduce the difficulty of disassembly. At the same time, it can also save decoration time.
Advantage
The material selection of the floor deck forming machine is economical, and the comprehensive cost advantage is particularly obvious, that is, the product is very cost-effective, and its products can improve the quality and efficiency of laying; the equipment is also suitable for laying across a large slab, and it can be laid in a large range. Reduce construction costs and help users save decoration costs; after using the equipment, it can also reduce the construction period and reduce the cost of on-site installation.
The floor deck is convenient for transportation and installation and erection, which can help the workload of on-site steel reinforcement and reduce the workload of on-site disassembly. At the same time, the force distribution of the board is more reasonable, so the quality of construction can be easily guaranteed.
