उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
FMS
प्रमाणन:
ISO CE
मॉडल संख्या:
दोहरी परत
वीडियो
वीडियो

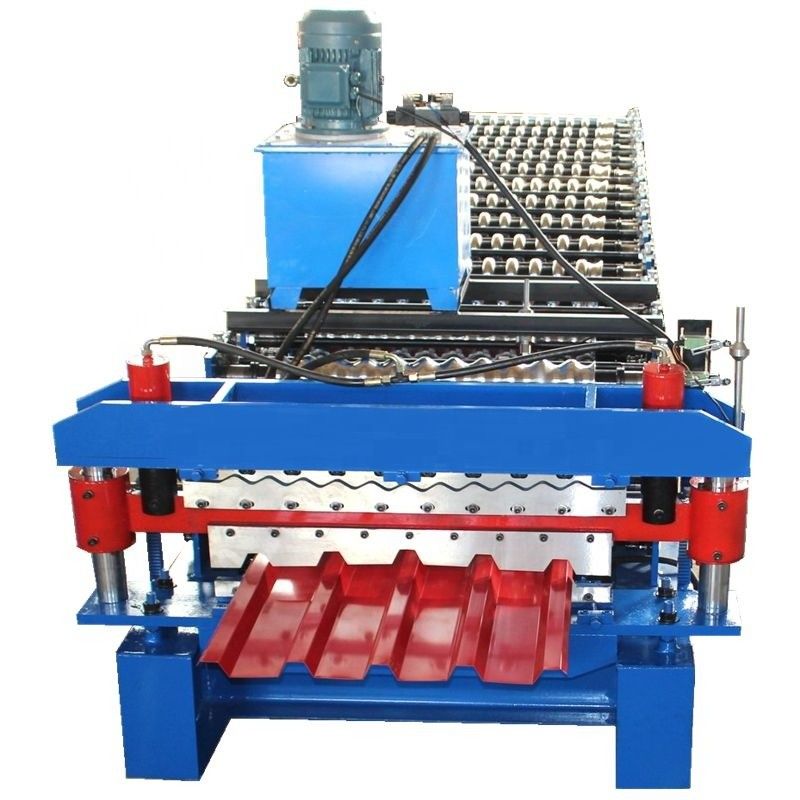

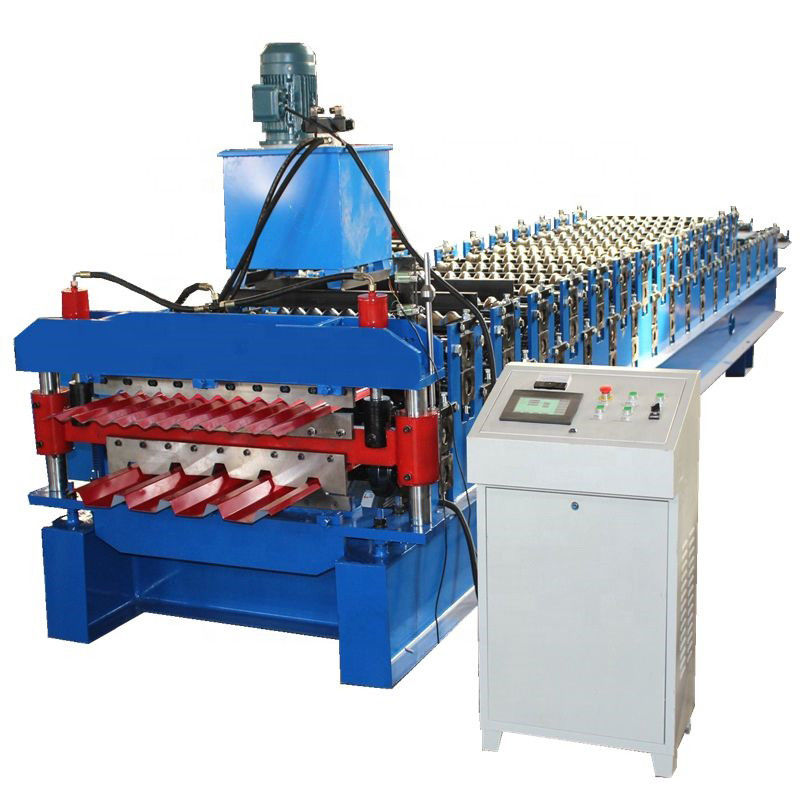

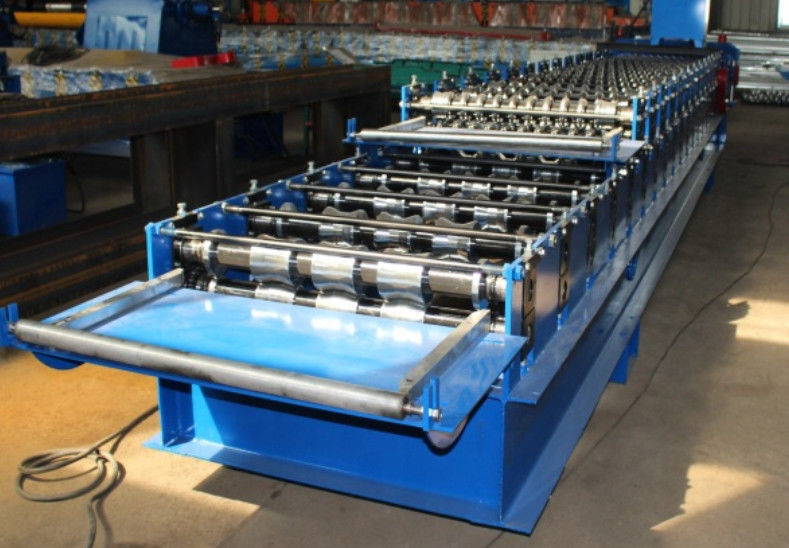

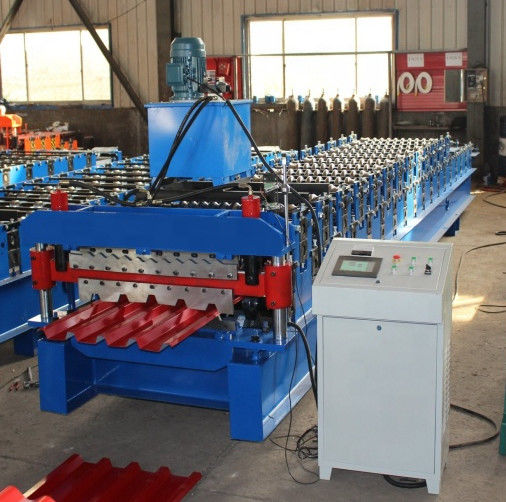

686/762 Double Layer Corrugated Profile Roll Forming Machine
One piece of double-laminated tile machine can press two types of tiles. The biggest advantage is that it has a small footprint, saves space, and is automatically controlled by a computer. However, only one type of plate can be produced during the operation, which is equivalent to two. Single board computer.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 15-20/min |
| 4 | Roller Station | 18/16 Raws |
| 5 |
Dimension (L*W*H) |
8500 mm*1200 mm*1200 mm |
| 6 | Machine Weight | 4800 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
This type of tile is suitable for interior and exterior wall decoration of industrial and civil buildings, warehouses, special buildings, roofs, walls and large-span steel structure houses. The raw material can be GI, GL, PPGI, PPGL, aluminum plate, etc., which has the function of anti-corrosion and acid resistance, and the service life is 10-15 years
Advantage
This version is mainly used for roof, wall and internal and external wall decoration of buildings, warehouses, special buildings, long-span steel structure houses, etc. It has the characteristics of light weight, high strength, rich colors, convenient and fast construction, earthquake resistance and so on Fireproof, rainproof and long service life. Functions such as protection free have been widely used.
