उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
FMS
प्रमाणन:
ISO CE
वीडियो
वीडियो

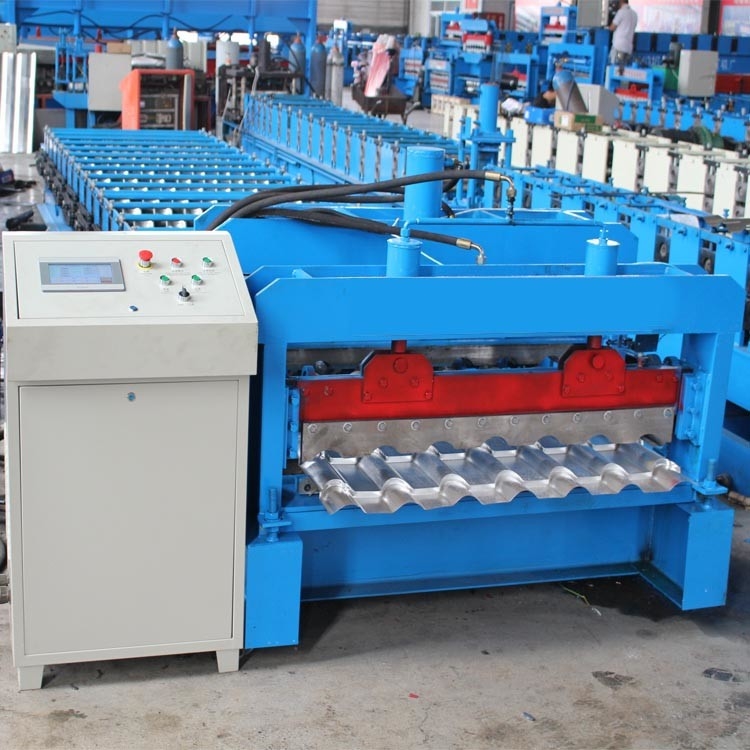

Monterrey Step Tile Roofing Roll Forming Machine work Automaticly
Step Tile Roll Forming Machine adopts hydraulic creasing and hydraulic shearing has high efficiency, low energy consumption and stable operation, which can effectively save customers' time and labor costs.
|
Material Thickness
|
0.25-0.8 mm
|
|
Working Speed
|
18-20m/min
|
|
Roller Stations
|
13/13 stations
|
|
Major Color of Machine Painted
|
RAL 5015 (Blue) or as per customer's requirements
|
|
Material of Main Shaft
|
45 steel forged
|
|
Main Motor Power
|
7.5 KW
|
|
Electric Standard
|
380V /50Hz/3PH or as per customer's requirements
|
|
Hydraulic Station Pressure
|
12.0 Mpa
|
|
Material of Cutter
|
Cr12 Mov HRC 58-62
|
|
Driving Mode
|
Single chain 1 inch
|
Application

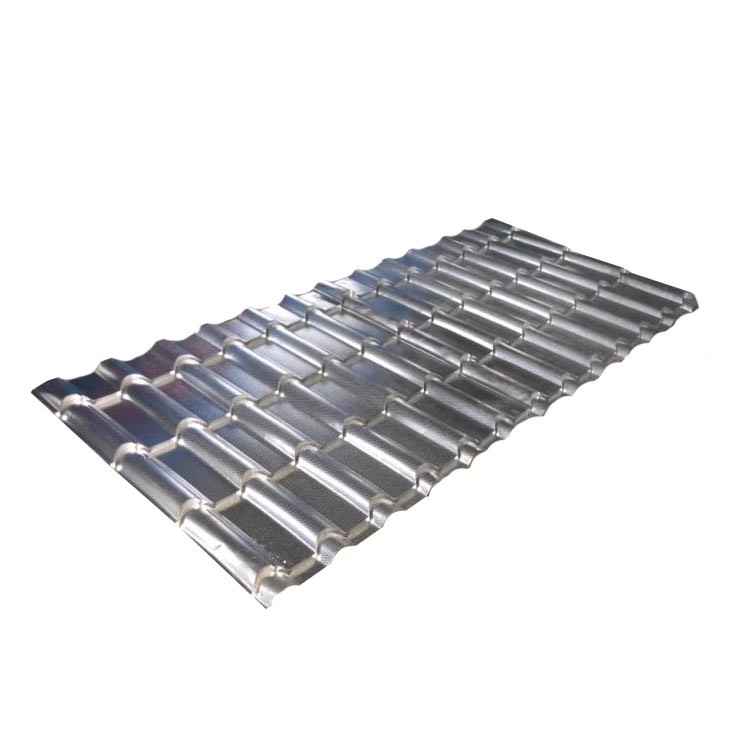

Such tiles are suitable for daily buildings such as warehouses, special buildings, roofs, building materials stores, production workshops, farms, construction sites, walls and large-span steel structure houses.
Advantage
Ceramic tiles have anti-corrosion, acid resistance and other functions. It has the advantages of light weight, high strength, beautiful appearance, convenient and quick construction, earthquake resistance, fire resistance, rain and moisture resistance. Long life and other characteristics, so it is widely used in civil and industrial buildings
