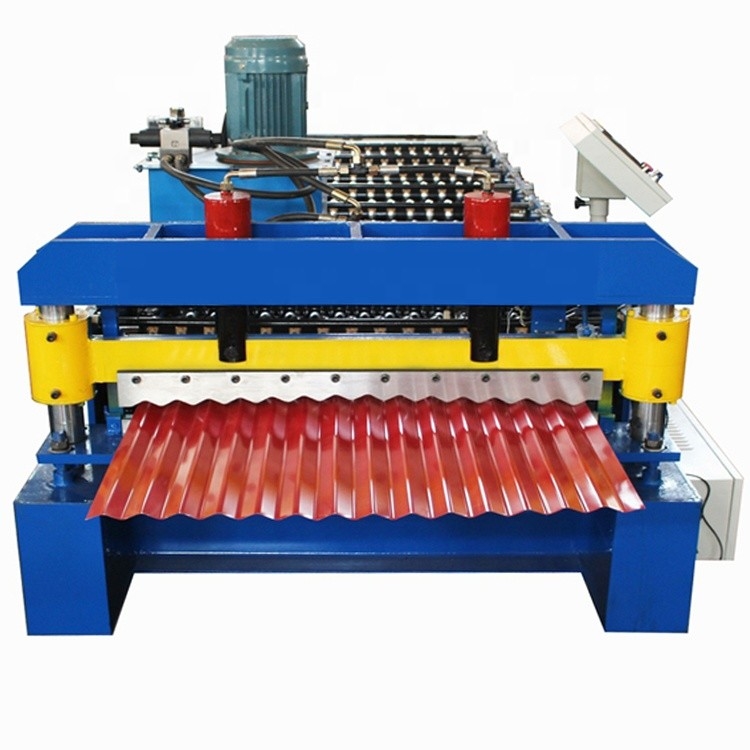

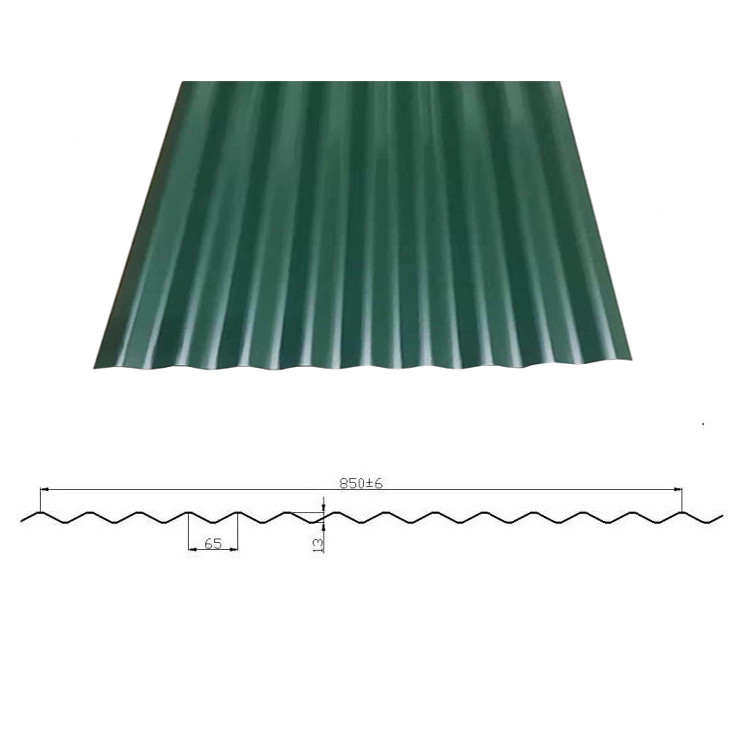

Corrugated Steel Sheet Making Colored Steel Wall Roof Roll Forming Machine
The corrugated roll forming machine is a production-type machine composed of several parts such as discharging, forming, post-forming and cutting. The colored panels produced by it have smooth and beautiful appearance, uniform paint pattern, high strength, and durability.
It has advantage of pretty appearance, durable using and so on
Equipment Detailed Parameters:
| No. | Item | Description |
| 1 | Coil | Width:1000mm |
| 2 | Forming speed | 8-15 m/min (not including cutting time) |
| 3 | Roller Stations | 9 stations |
| 4 | Material of Roller | 45# steel finish machining, plated hard chromium surface |
| 5 | Material of Main Shaft | 45# steel finishing machining and then slack quench processed |
| 6 | Material of Shaft | 70 mm 45#steel forged |
| 7 | Hydraulic Station Power | 3 KW |
| 8 | Hydraulic Station Pressure | 12.0 Mpa |
| 9 | Electrical Control System | DELTA PLC |
| 10 | Material of Cutter | GCr12 |
| 11 | Driving Mode | single chain 0.6 inch |
| 12 | Material Thickness | 0.3-0.8mm |
| 13 | Power Supply | 380V, 60HZ, 3 PHASES |
| 14 | Cutting accuracy | ±2 mm |
Application
They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, walls and roofs.
