उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
FMS
प्रमाणन:
ISO CE
वीडियो
वीडियो
वीडियो
वीडियो

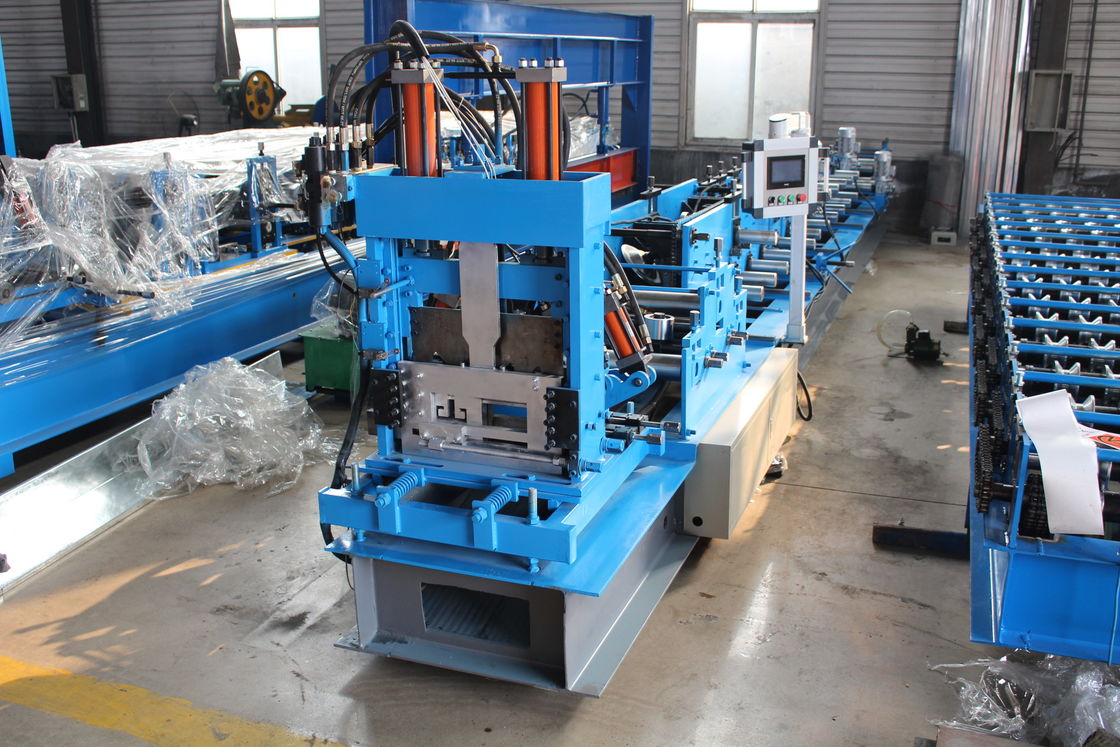

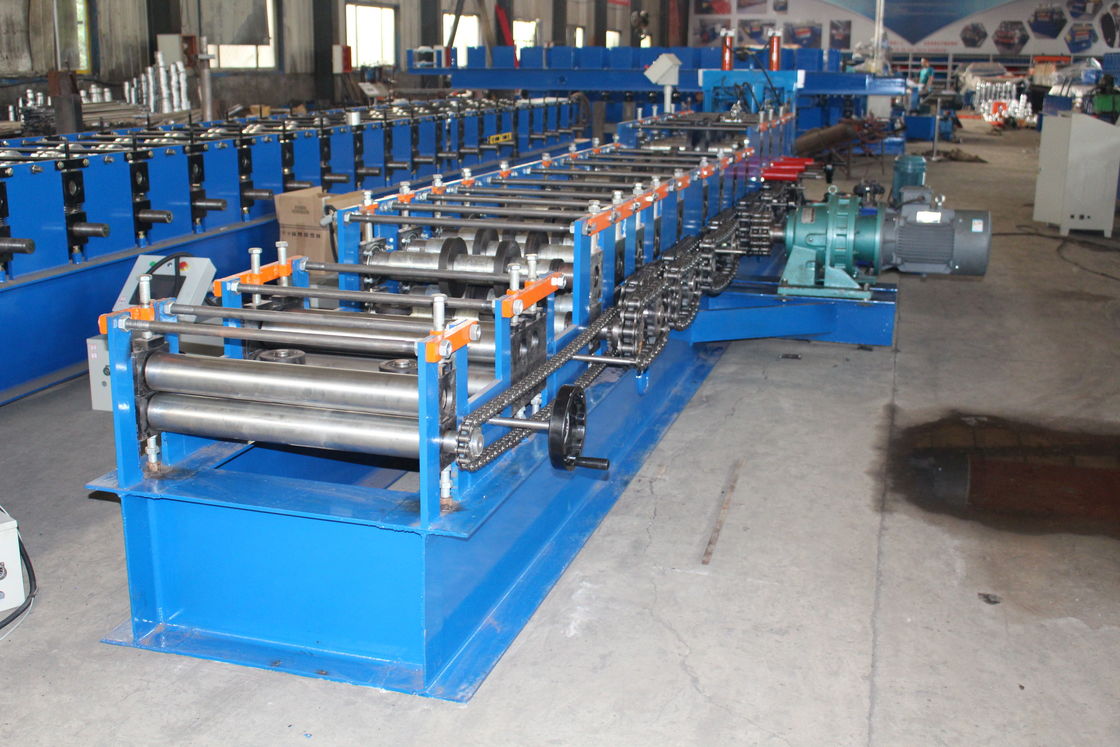

C Z Shape Purlin Forming Machine Full Automatic Change Size Type
Specification
| No. | Item | Description |
| 1 | Coil | Galvanized |
| 2 | Material Thickness | 1 mm- 3.5 mm |
| 3 | Working Speed | 15- 20 m/min ( not including the cutting time) |
| 4 | Roller Station | 12-16 Raws |
| 5 | Dimension (L*W*H) | 7000 mm*1000 mm*1300 mm |
| 6 | Machine Weight | 4000 KG |
| 7 | Electrical Control System | Panasonic PLC |
| 8 | Drive Motor Power | 15KW |
| 9 | Hydraulic Station Power | 15 KW |
| 10 | Power Supply | 360V/60HZ/3PH |
| 11 | Cutting Accuracy | ±2 mm |
| 12 | Driving Mode | Single Chain 2 inch |
| 13 | Material of Shaft | 80 mm 45#steel forged |
| 14 | Material of Roller | 45# Steel Finish Machining, Plated Hard |
Application
The finished product of Purlin Making Machine Non-polar Cutting Z Purlin Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family
construction, shopping malls shutter doors and etc.
Advantage
The CZ interchange purlin machine has a fully automatic electrical control system and error reporting device, which can effectively ensure the safety and stability of the production line. The equipment is driven by a geared motor, with frequency conversion speed regulation, speed regulation, and fixed-length positioning. And the conversion of the two profiles can be realized without changing the forming roller. The speed is very fast and the efficiency is very high.
