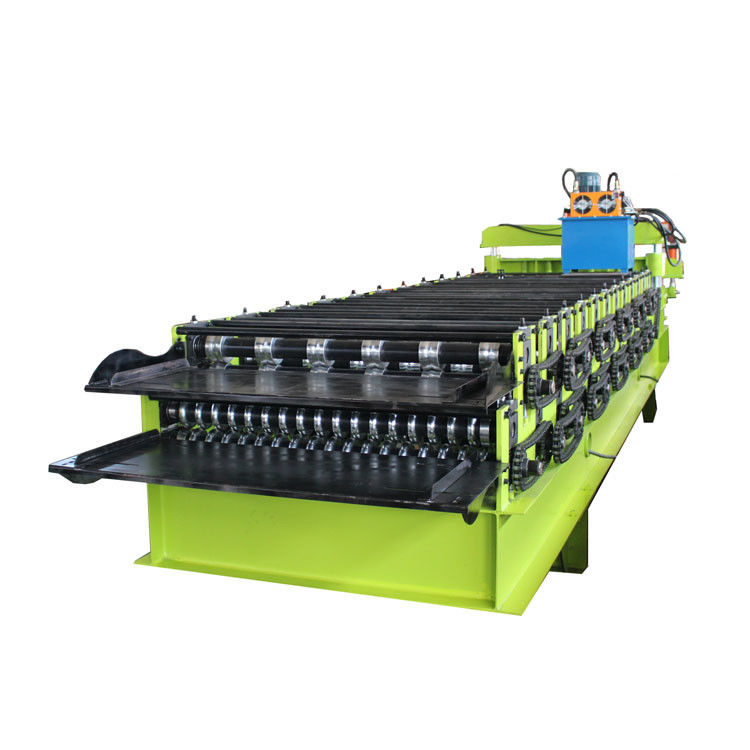

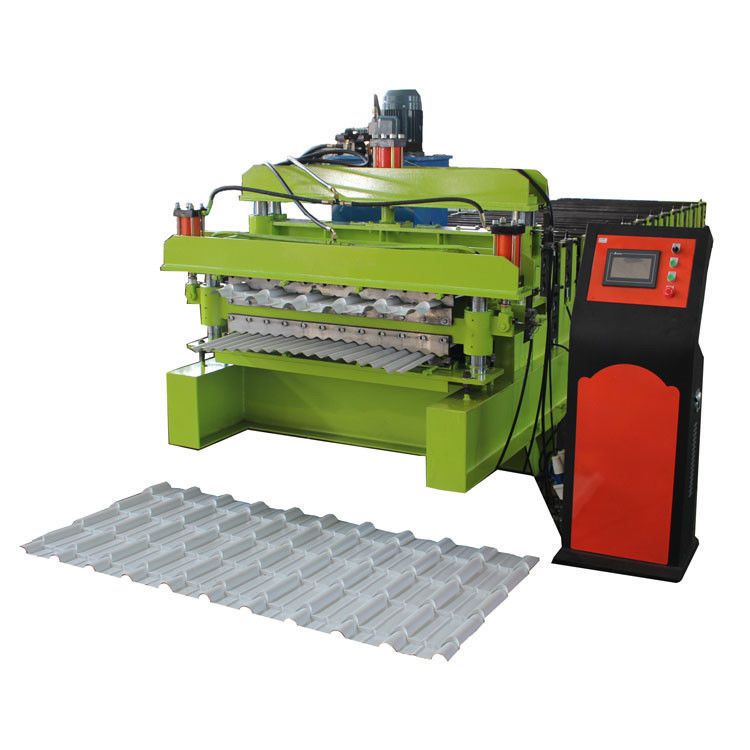

Full automatic IBR roof sheeting roll forming machine with double deck
One piece of double-laminated tile machine can press two types of tiles. The biggest advantage is that it has a small footprint, saves space, and is automatically controlled by a computer. However, only one type of plate can be produced during the operation, which is equivalent to two. Single board computer.
We can design the machine according to your specification and profile drawing.
This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface. This type of roof sheet has advantage including beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
Specification
|
Material Thickness
|
0.25-0.8 mm
|
|
Working Speed
|
8-15 m/min
|
|
Roller Stations
|
13/15
|
|
Material of Roller
|
45# steel quenching process and chrome coated
|
|
Material of Main Shaft
|
45 steel forged
|
|
Main Motor Power
|
5.5 KW
|
|
Electrical Hydraulic Station Power
|
4 KW
|
|
Hydraulic Station Pressure
|
12.0 Mpa
|
|
Material of Cutter
|
Cr12 Mov HRC 58-62
|
|
Driving Mode
|
Single chain 1 inch
|
