उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
FMS
प्रमाणन:
ISO CE
मॉडल संख्या:
लाइट गेज स्टील
वीडियो

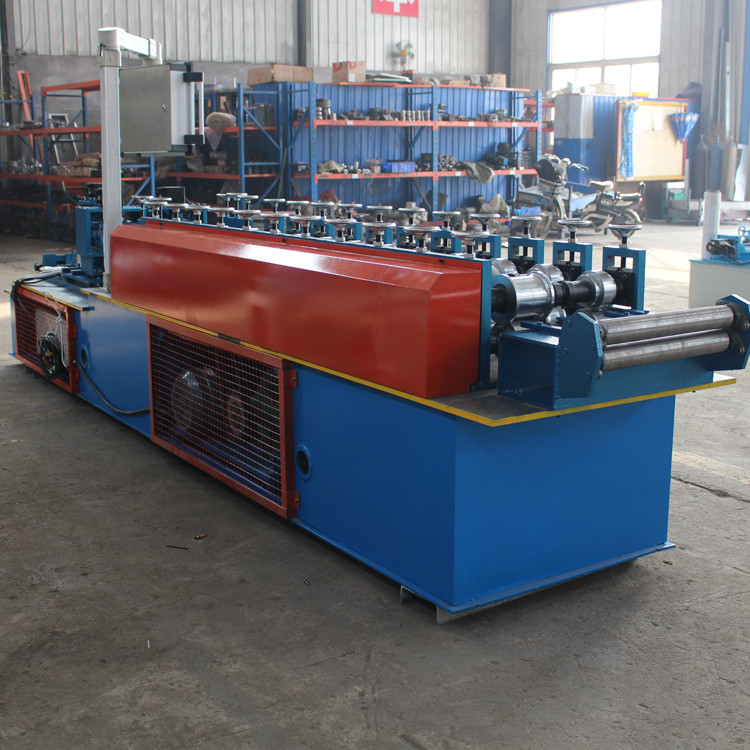

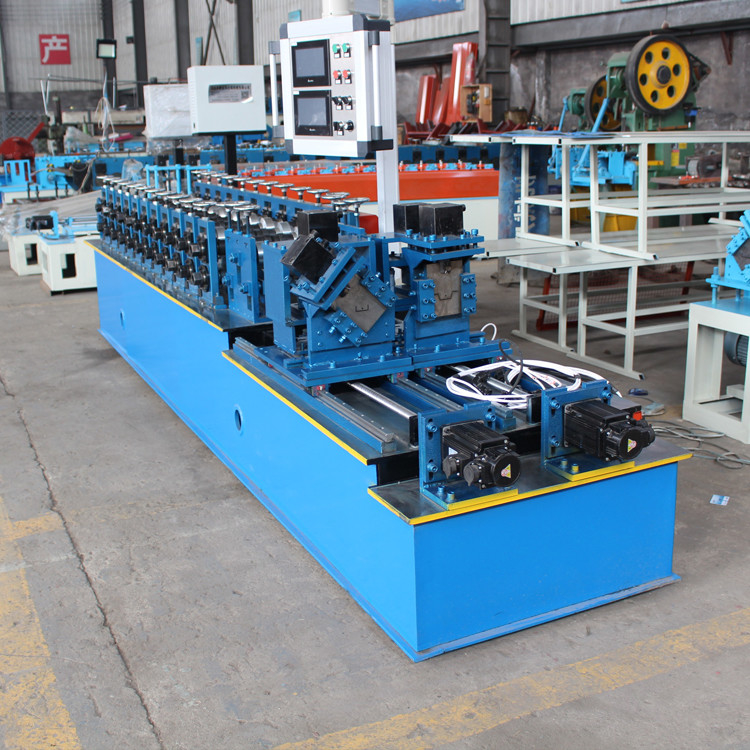

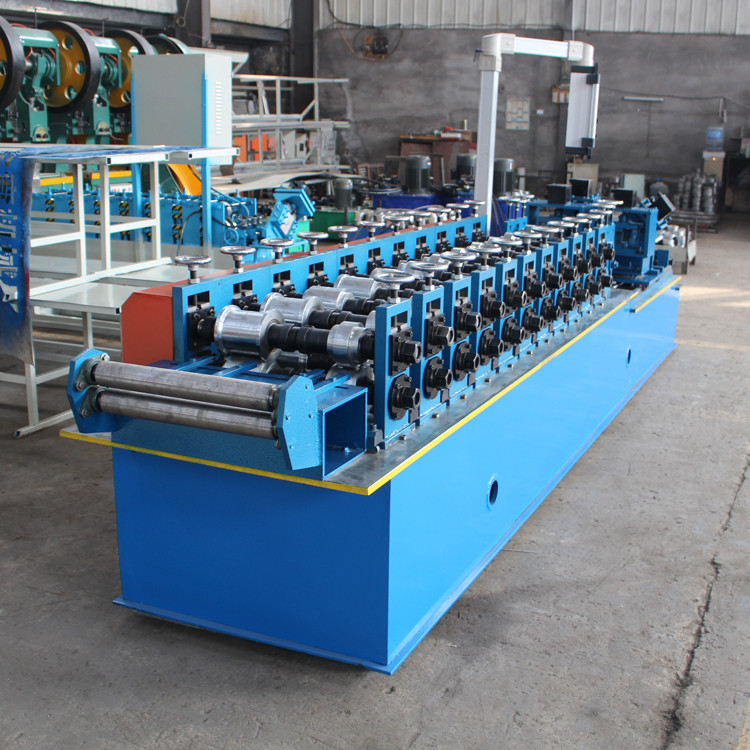

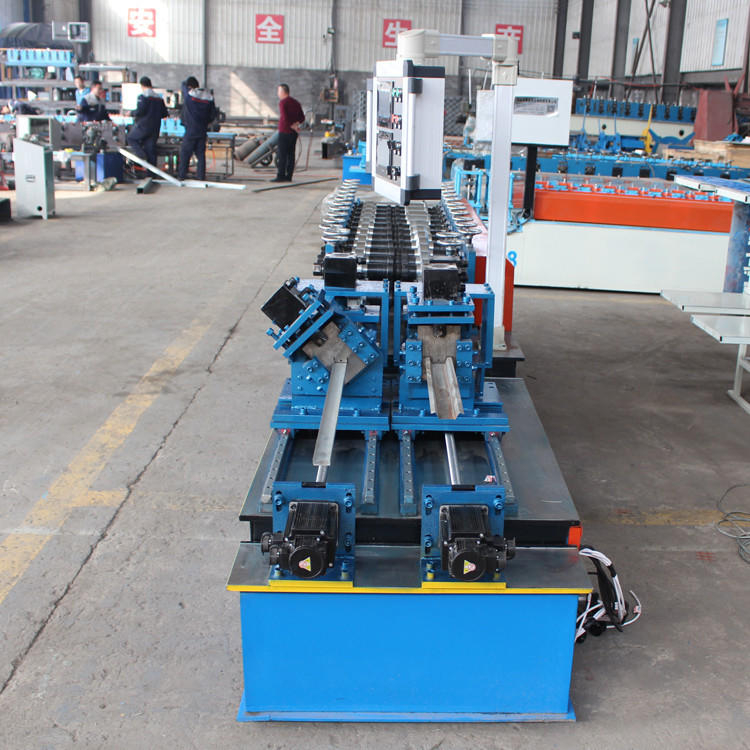

Double Out Light Gauge Steel Roll Forming Machine Make Drywall Profiles
double out light guage steel roll forming machine, which is combined with the C chanel roll forming machine and the Omega roll forming machine. It can work separately Due to it has independent control system so two lines working at the same time .
Specification
| No. | Item | Description |
| 1 | Coil | PL,GL,PPGL,PPGI |
| 2 | Raw Material Thickness | 0.3-1.5mm |
| 3 | Working Speed | 16-20m/min |
| 4 | Roller Station | 13 Raws |
| 5 |
Dimension (L*W*H) |
6000 mm*1500 mm*1500 mm |
| 6 | Machine Weight | 5500 KG |
| 7 |
Electrical Control System |
PLC (can be customized) |
| 8 |
Drive Motor Power |
7.5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Because light steel construction has the characteristics of quick disassembly and assembly, saving time and effort, light weight, long service life, good stability, convenient transportation, multiple disassembly and assembly, beautiful appearance, strong structure, etc., it is widely used in daily life..
Advantage
Cangzhou FMS has a long history in producing Roll forming machine. Their technology experience was solidified decades ago with a flexible hydraulic punching system called the soft punch. Since then cangzhou FMS has produced several systems to accommodate the changing industry needs.We have a team of professionals with years of experience and proven track record in bringing to you something advanced and innovative that is energy efficient too.
