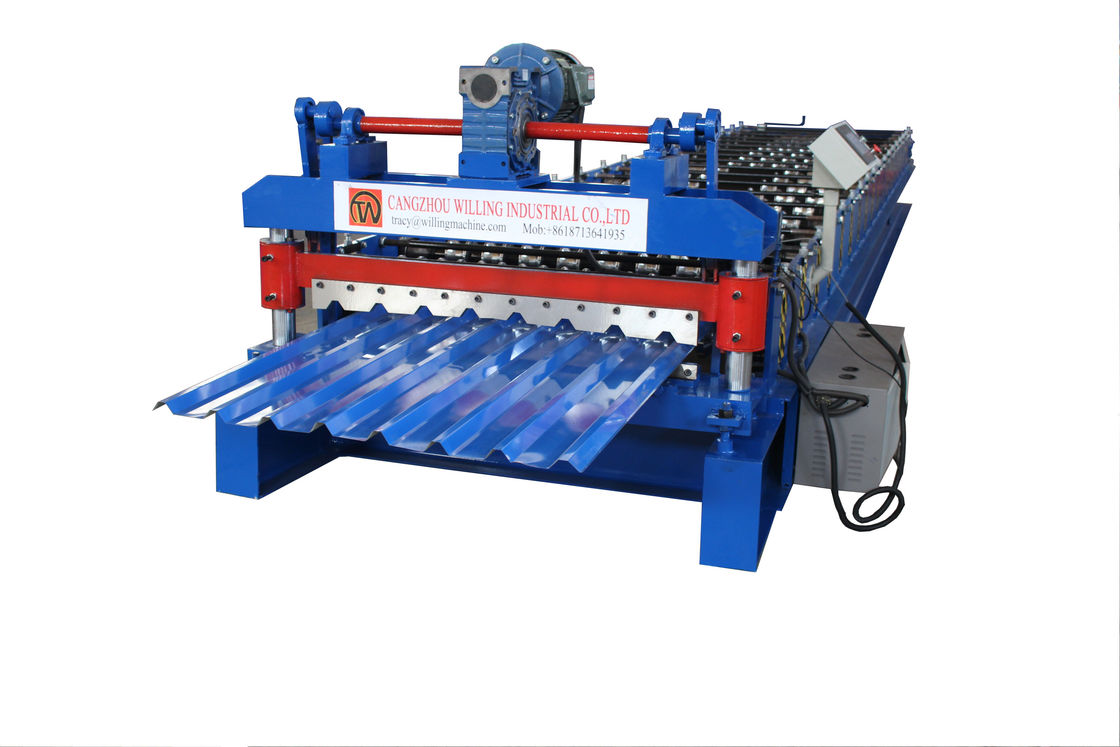

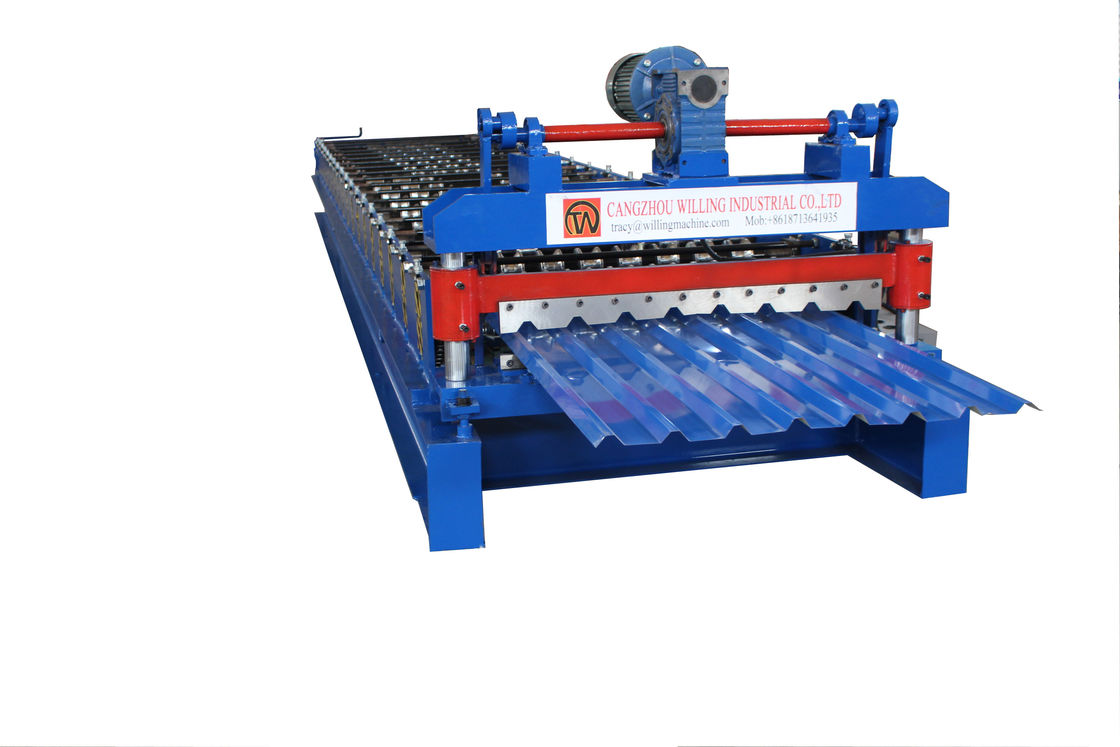

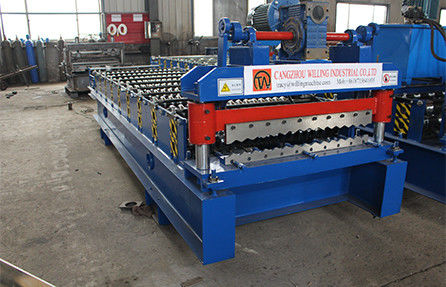

Electric Shear IBR Roof Tiles Roll Forming Machine PLC Control
Specification
| No. | Item | Description |
| 1 | Coil | PL,GL,PPGI,PPGL |
| 2 | Raw Material Thickness | 0.25 mm - 0.9 mm |
| 3 | Working Speed | 15-20 m/min |
| 4 | Roller Station | 15 Stations |
| 5 |
Dimension (L*W*H) |
4500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
4 KW |
| 9 |
Electric Shear Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 1 mm |
| 12 |
Driving Mode |
Gear Wheel |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
This product is widely used in many fields. For example, in factories, warehouses, stadiums, exhibition halls, theaters, laboratories, and prefabricated houses, color steel plates have the advantages of simple installation, durability, long life, corrosion resistance, and good appearance, so they are also widely used in the chemical construction industry.
Advantage
Our roll forming machine consists of the following parts: decoiler, color steel tile press main body, PLC computer control system, automatic post-cutting system and receiving table.
The entire unit is automatically controlled, which can effectively save the need for manpower, thereby reducing production costs for customers
