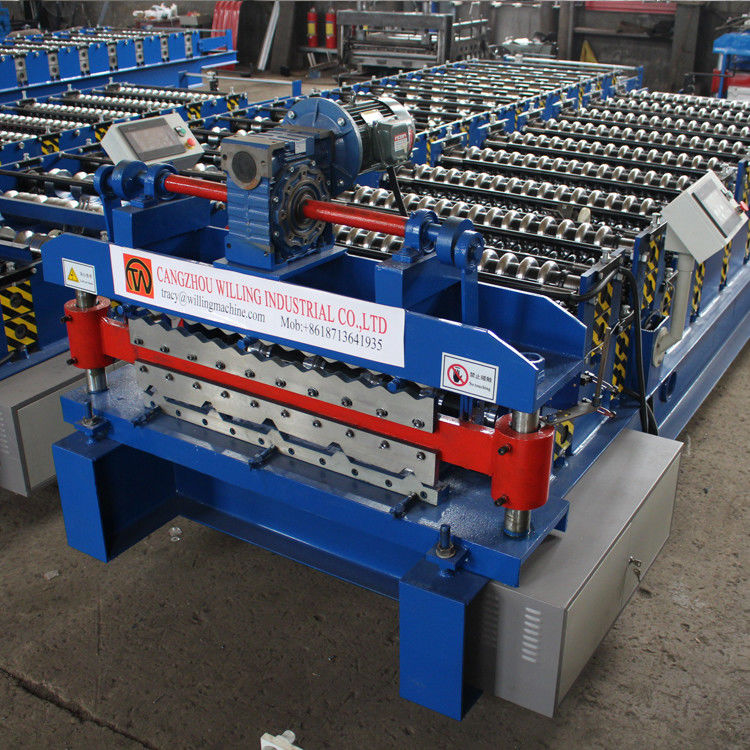

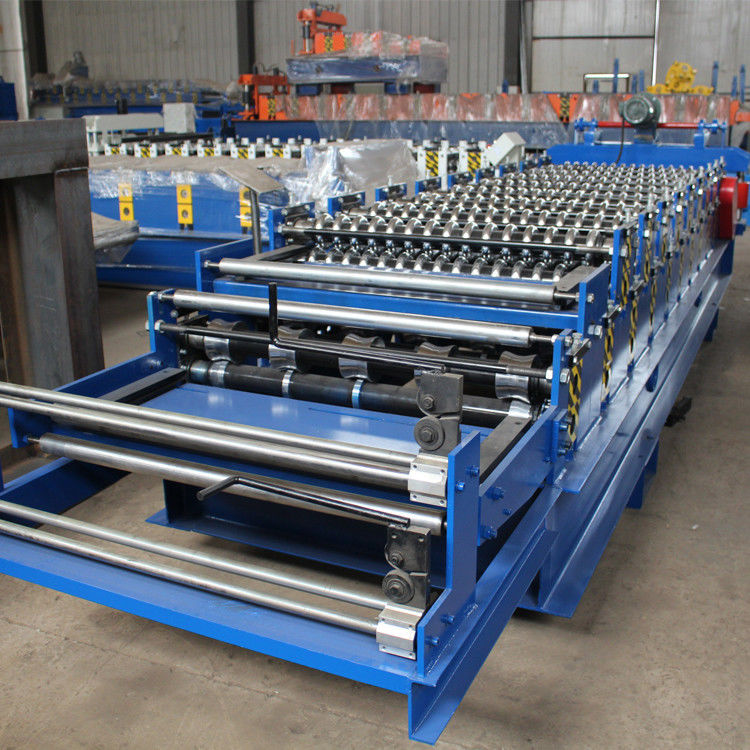

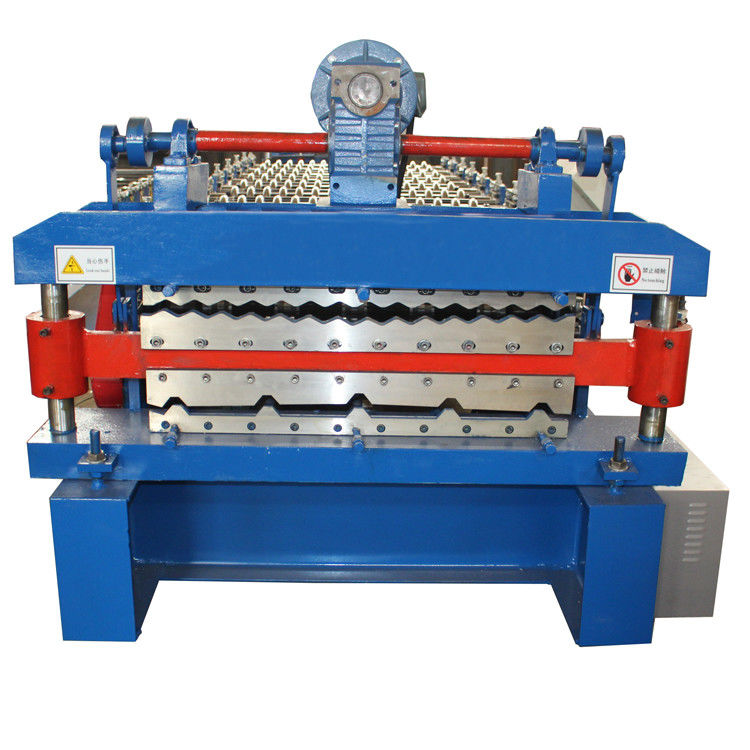

Electric Shearing Double Layer Roll Forming Machine Trapezoid And Corrugated
Electric Shearing Double Layer Roll Forming Machine can press two types of sheets. The advantage is that it has a small footprint, saves space, and is automatically controlled by a computer. However, only one type of plate can be produced during the operation, which is equivalent to two Single board computer.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.25-0.8mm |
| 3 | Working Speed | 15-20/min |
| 4 | Roller Station | 18/16 Raws |
| 5 |
Dimension (L*W*H) |
8500 mm*1200 mm*1200 mm |
| 6 | Machine Weight | 4800 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Electric Shearing Power |
3 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
This two type sheet is the common used roof tiles, widely use in wall and internal and external wall decoration of buildings, warehouses, special buildings, long-span steel structure houses, etc.
Advantage
this mahcine suitable for many type raw materials like GI, GL, PPGI, PPGL, aluminum plate, etc. due to it have the function of anti-corrosion and acid resistance so the service life is 10-15 years , It has the characteristics of light weight, high strength, rich colors, convenient and fast construction, earthquake resistance , Fireproof, rainproof and long service life ect.
