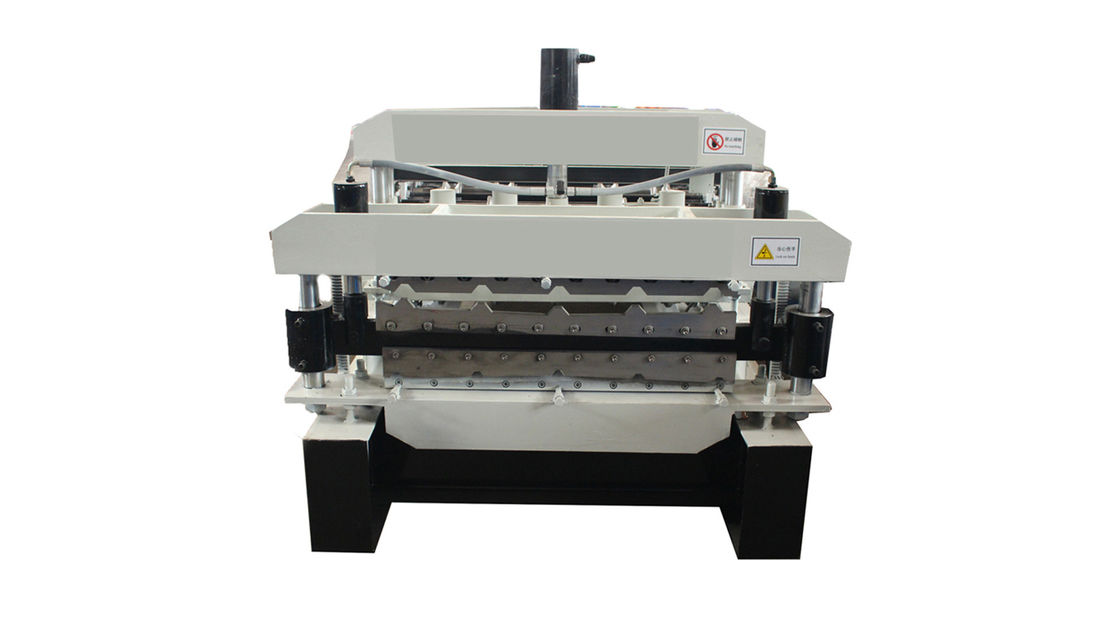

0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency

0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency

380v double layer roll forming machine

0.3mm double layer roll forming machine

corrugated double layer roofing sheet machine

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

FMS

प्रमाणन:

CE,ISO

मॉडल संख्या:

दोहरी परत

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
उत्पाद वर्णन:
डबल परत नालीदार छत शीट धातु रोल बनाने की मशीन उच्च दक्षता
मोटाई:
0.3-0.8 मिमी
शाफ्ट सामग्री:
सामग्री 45# फोर्ज स्टील है
आयाम(एल*डब्ल्यू*एच):
6500*1200*1500 मिमी
नियंत्रण प्रणाली:
पीएलसी
रफ़्तार:
8-15 मीटर/मिनट
वोल्टेज:
380V 50HZ 3PH
वज़न:
3500 किलोग्राम
प्रमुखता देना:

380v double layer roll forming machine

,

0.3mm double layer roll forming machine

,

corrugated double layer roofing sheet machine

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
मुख्य मशीन नग्न है, कंप्यूटर नियंत्रण बॉक्स प्लास्टिक से पैक किया गया है।
प्रसव के समय
30 दिन
भुगतान शर्तें
टी/टी, एल/सी, डी/ए, डी/पी, टी/टी
आपूर्ति की क्षमता
प्रति माह 35 सेट
संबंधित उत्पाद
अच्छा दाम High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine ऑनलाइन वीडियो

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम New Style  Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine ऑनलाइन वीडियो

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम 2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine ऑनलाइन वीडियो

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम 2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine ऑनलाइन वीडियो

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
अब संपर्क करें
उत्पाद वर्णन

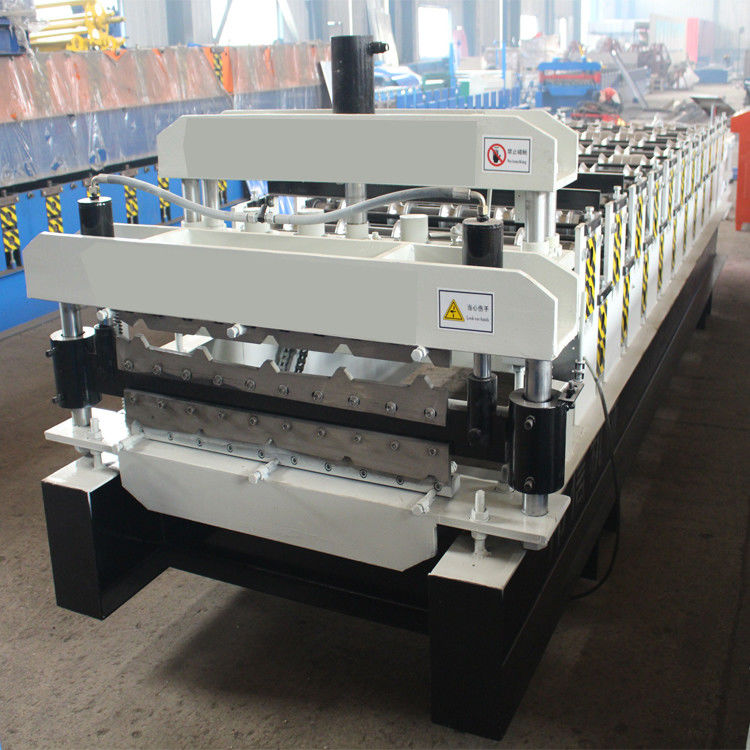

Double Layer Corrugated Roofing Sheet Metal Roll Forming Machine High Efficiency
This model machine can produce two different samples with fast speed and high quality,which can save more space and money than using two different machines.
These two samples also can be customized. Just send us your smaples, we will design and produce the double deck machine for you.Sincerely hope we can work with you to provide you with cost-effective products, and quality service.






Equipment Detailed Parameters:



1

Suitable Material PPGI (235Mpa)

2

Warranty of core components 1 Year
3 Rows of rollers 15 rows & 16 rows
4 Dimension 6500*1200*1500 mm
5
Cutting power

3kw

6
Main Motor Power
3kw
7 Thickness of raw material 0.3-0.8mm

8

Productivity

8-15m/min
9 Diameter of shaft ¢75mm

10

Voltage 380V 50Hz 3phases
11 Frame 350H steel
12 Middle plate 16mm



Application



The double-layer tile machine is economical and can combine two types of equipment into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The plate rolled by this machine has the characteristics of flatness, uniform corrugation and high utilization rate.



Advantage



Double-layer tile machine equipment adopts PLC control system. The operation is simple and easy to use. The double-layer laminated tile machine adopts advanced automatic control software.  In order to make the performance of the automation system more superior, the color steel tile equipment also has the advantages of maintenance, maintenance, mechanical debugging, and convenient mold replacement.
