Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v

Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v

ppgi high speed roll forming machine

380v high speed roll forming machine

ppgi tile roll forming machine

उत्पत्ति के प्लेस:

चीन (महाद्वीप

ब्रांड नाम:

CANGZHOU FMS

प्रमाणन:

ISO CE

मॉडल संख्या:

मेट टाइल/ग्लेज़्ड टाइल

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
प्रोडक्ट का नाम:
यूएसए मेट/ग्लेज़ टाइल रोलिंग मोल्डिंग मशीन हाई स्पीड
कच्चा माल:
गैलवेल्यूम, गैल्वनाइज्ड, पीपीजीआई, एल्युमीनियम, तांबा
वोल्टेज:
380V
उपयोग:
छत का फर्श
गारंटी:
1 वर्ष
सामग्री की मोटाई:
0.25-0.8 मिमी
विद्युत हाइड्रोलिक:
4 किलोवाट
सटीकता:
±2 मिमी
प्रमुखता देना:

ppgi high speed roll forming machine

,

380v high speed roll forming machine

,

ppgi tile roll forming machine

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
40' एफएलसी
प्रसव के समय
35 कार्य दिवस
भुगतान शर्तें
एल/सी, टी/टी, डी/ए, डी/पी
आपूर्ति की क्षमता
प्रति माह 20 सेट
संबंधित उत्पाद
अच्छा दाम Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line ऑनलाइन वीडियो

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine ऑनलाइन वीडियो

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw ऑनलाइन वीडियो

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine ऑनलाइन वीडियो

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
86-317-2016816
अब संपर्क करें
उत्पाद वर्णन

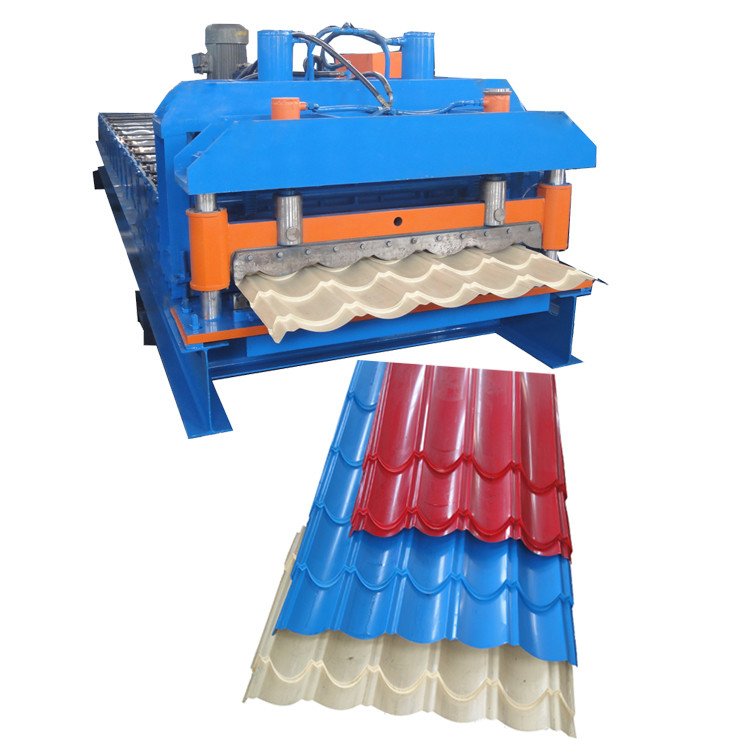

USA Met / Glaze Tile Rolling Molding Machine High Speed



Because Met-Tile is a panelized roofing system, installation requires a fraction of the time required by the installation of real ceramic tiles.

Met-Tile roofing panel provides the appearance of tile roofing with all the advantages and performance of metal. Met-Tile is lightweight, energy efficient and aesthetically attractive. A Met-Tile roof looks so much like tile, most people are surprised to learn that they are actually metal roof tiles.

Metal roof tiles with “steps” are rollformed using a rollforming machine from pre-painted steel and Galvanized steel. The Step Tile is formed using pre-painted steel and Galvanized steel.

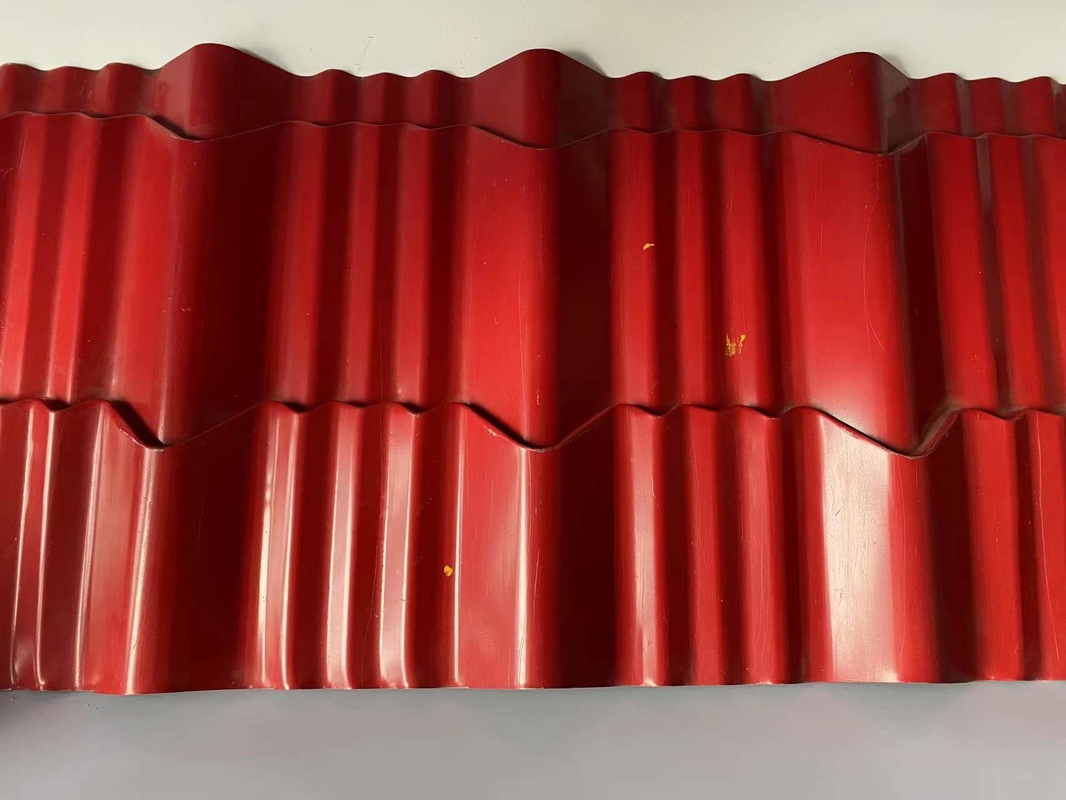

Profile

Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v 0

Specification



Material Thickness
0.25-0.8 mm
Working Speed
8-15m/min
Main servo
5.5kw
Hydraulic Station Power
4 kw
Electrical Control System
PLC
Suitable Material
PPGI (235Mpa)
Material of Cutter
Cr12
Driving Mode
single chain 1 inch
Cutting accuracy
±2 mm
Power Supply
380 V, 60 HZ, 3 PHASES
Hydraulic Station Pressure
12.0 Mpa





Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
