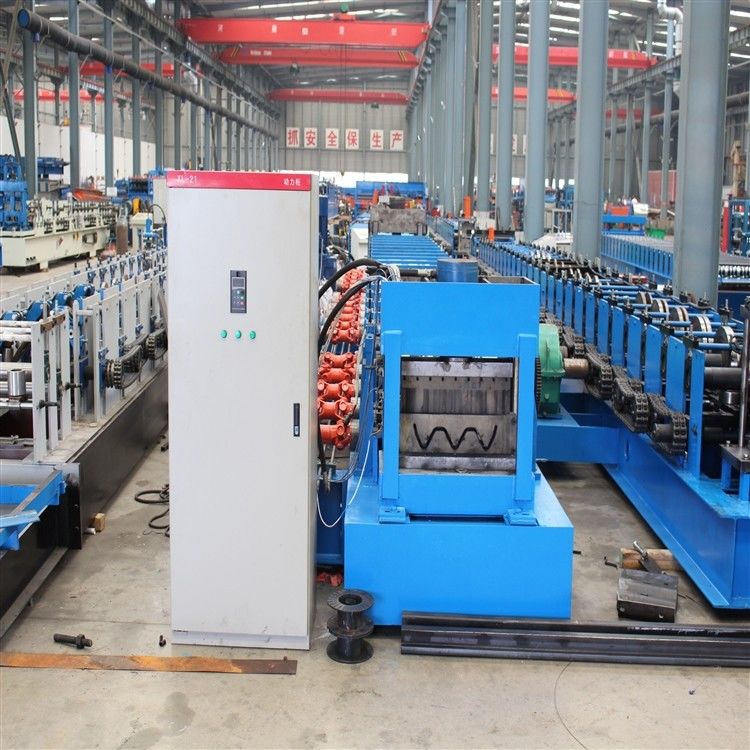

Highway Guardrail Roll Forming Machine With Gearbox Driven Highway Guard

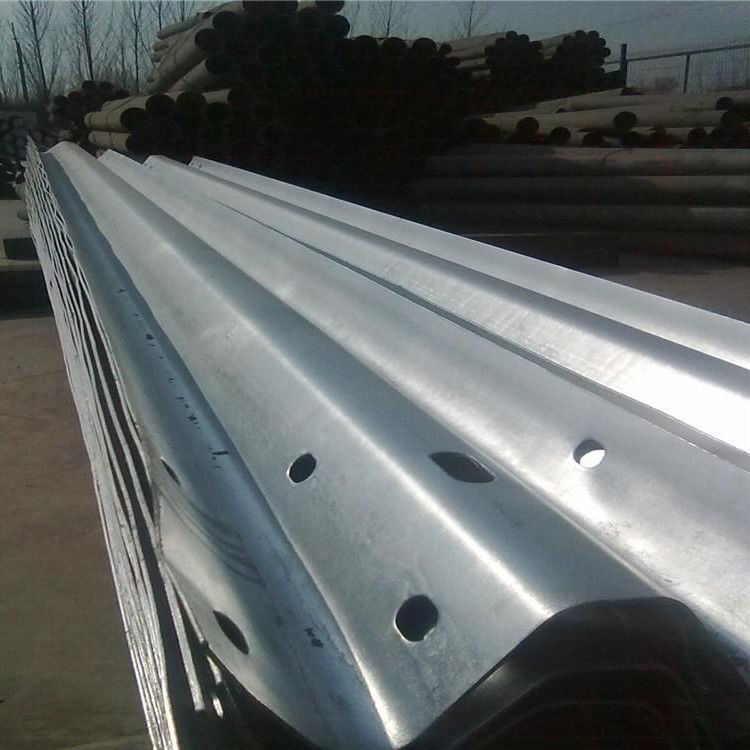

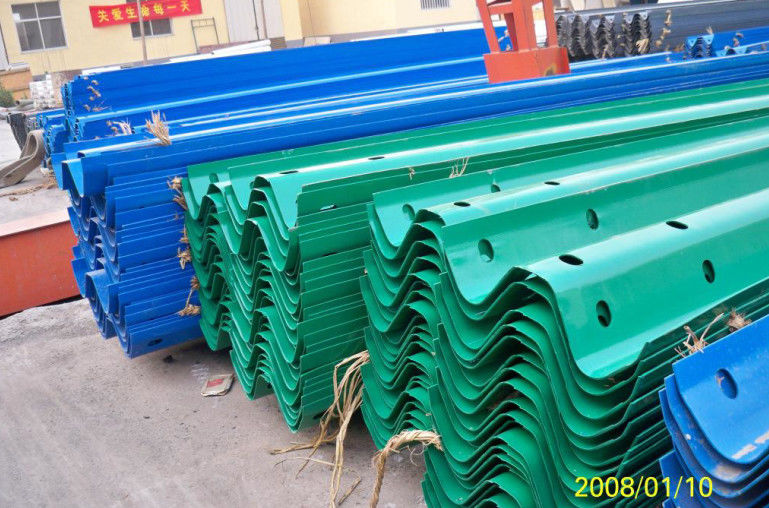

Highway guardrail forming machine is a guardrail machine used to produce highway industry, and the finished product is highway guardrail. It is mostly used in safety guardrails on highways, national roads, provincial roads, urban roads, rural roads and other motor vehicle lanes.
2.Equipment Detailed Parameters:
|
No
|
||
|
1
|
Suitable Material | Cold rolled coil, hot rolled coil, galvanized coil |
|
2
|
Width of the raw material | 480mm |
| 3 | Rows of rollers | 15 rows |
| 4 |
Total power
|
Main motor 22kwx2 Hydraulic station power 4kw |
| 5 | Thickness of raw material | 2.5-3mm |
| 6 | Speed | 10-12m/min |
| 7 | Diameter of shaft | ￠116mm |
|
8
|
Voltage | 380V 50Hz 3phases |
| 9 | Big frame | 400H steel |
| 10 | Middle plate | 18mm |
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received.
