Low Noise Glazed Plc Roof Tile Roll Forming Machine For Color Ppgi Steel

Low Noise Glazed Plc Roof Tile Roll Forming Machine For Color Ppgi Steel

plc roof tile roll forming machine

ppgi roof tile roll forming machine

plc color steel roll forming machine

उत्पत्ति के प्लेस:

चीन (महाद्वीप

ब्रांड नाम:

CANGZHOU FMS

प्रमाणन:

ISO CE

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
प्रोडक्ट का नाम:
कम शोर वाली चमकदार छत-टाइल बनाने की मशीन रंग स्टील
बिक्री के बाद सेवा प्रदान की गई:
विदेशों में सेवा मशीनरी, वीडियो तकनीकी सहायता, ऑनलाइन समर्थन, क्षेत्र रखरखाव और मरम्मत सेवा, फील्ड इ
उत्पादन क्षमता:
3-5 मी / मिनट
वोल्टेज:
380V 50Hz 3phases
नियंत्रण प्रणाली:
पीएलसी
वज़न:
5.8t
डिलीवरी का समय:
45 कार्य दिवस
स्वचालन:
पूर्ण स्वचालित
प्रमुखता देना:

plc roof tile roll forming machine

,

ppgi roof tile roll forming machine

,

plc color steel roll forming machine

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
40' एफएलसी
प्रसव के समय
30 कार्य दिवस
भुगतान शर्तें
एल/सी, टी/टी, डी/ए, डी/पी
आपूर्ति की क्षमता
प्रति माह 20 सेट
संबंधित उत्पाद

6m Automatic Stacker for Roof Sheet Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine ऑनलाइन वीडियो

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम 2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows ऑनलाइन वीडियो

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम 4meter/Min Glazed Tile Roll Forming Machine With 18 Rows ऑनलाइन वीडियो

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
अब संपर्क करें
उत्पाद वर्णन

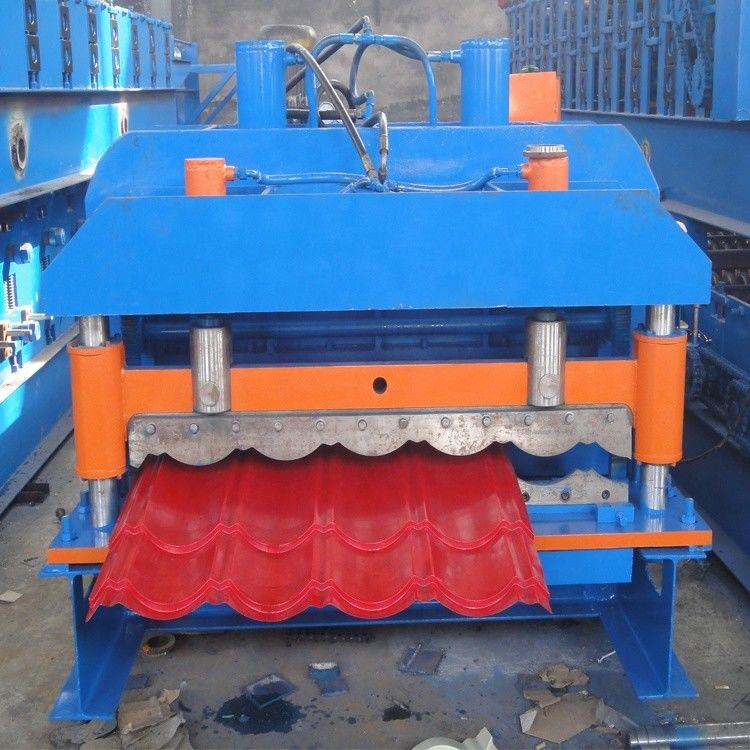

Low Noise Glazed Roof-Tile Making Machine Color Steel

Our Full automatic PPGI Versatile Versa tile roofing tile color steel roll forming machine 0.3-0.8mm for different models based on different designs or customer's samples . It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.



ADVANTAGES OF OUR ROLL-FORMERS AS A START-UP COMPANY

Simple manufacturing process (one manufacturing process).

Easy administration (very few product lines and variations).

High demand for product.

Easy to market.

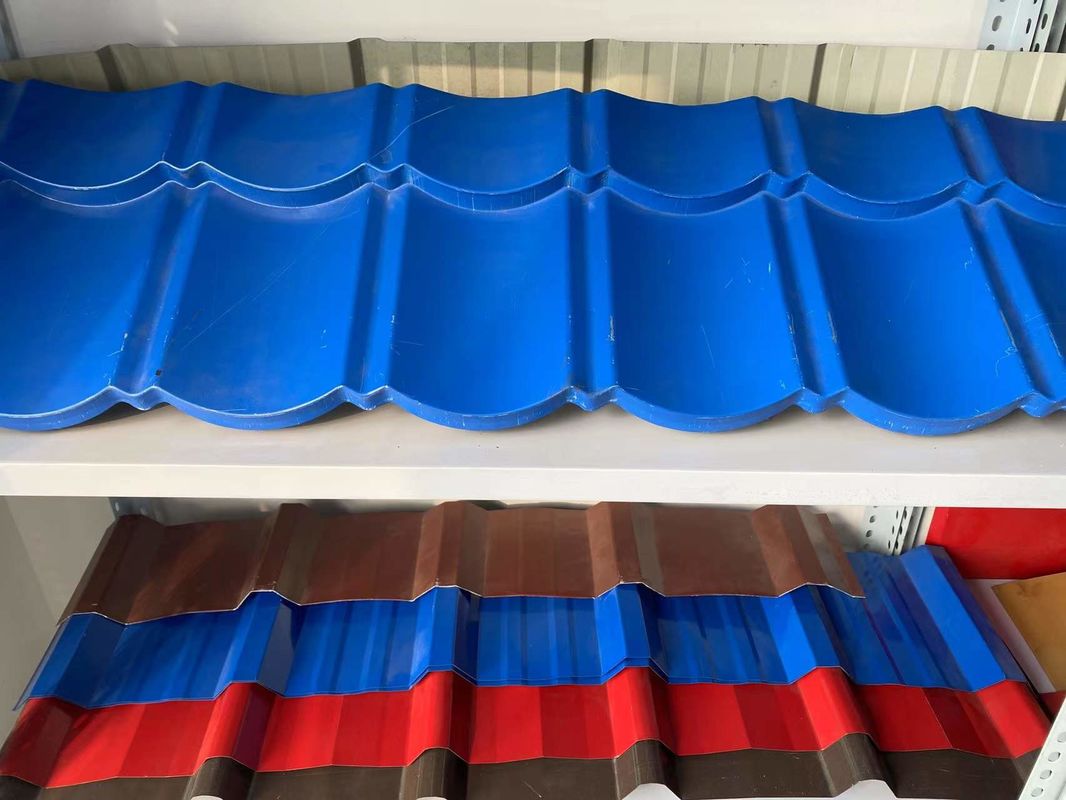

Profile
Low Noise Glazed Plc Roof Tile Roll Forming Machine For Color Ppgi Steel 0

Specification

1.Formed Material
PPGI,GI,AI
Thickness:0.3-0.8mm Width:1000mm/1250mm(customized)
2.Decoiler
Hydraulic automatic decoiler
Manual decoiler(will give you as free)
3.Main body
Roller station
13 rows(As your requirement)
Diameter of shaft
80mm solid shaft
Material of rollers
45# steel, hard chrome plated on the surface
Machine body frame
350 H steel
Drive
Chain transmission
Weight
5.8T
4.Cutter
Automatic
cr12mov material, no scratches, no deformation
5.Power
Motor Power
5.5KW
Hydraulic system power
5.5KW
6.Voltage
380V 50Hz 3Phase
As your requirement





Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
