उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
CANGZHOU WILLING
प्रमाणन:
ISO CE
मॉडल संख्या:
सैंडविच पैनल

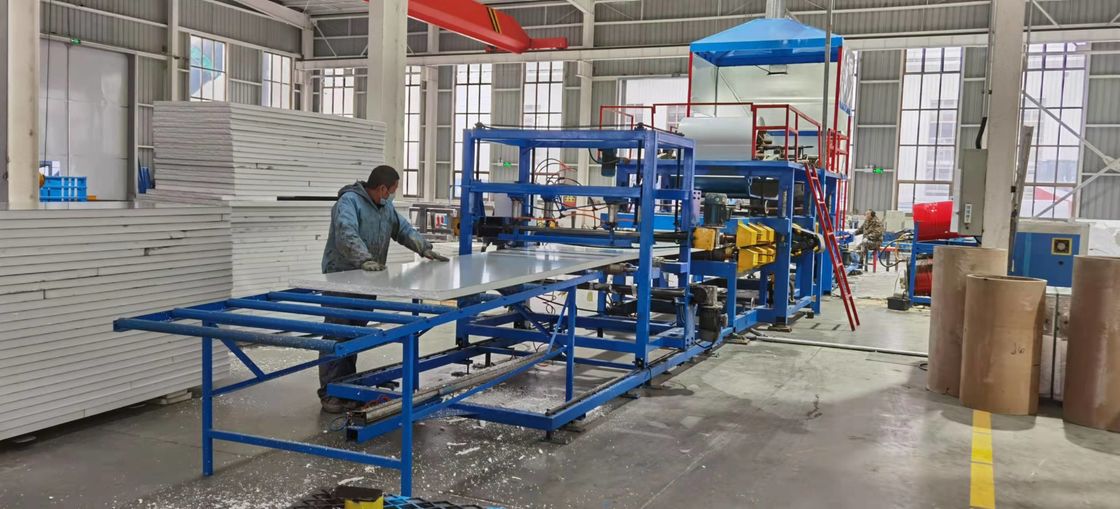

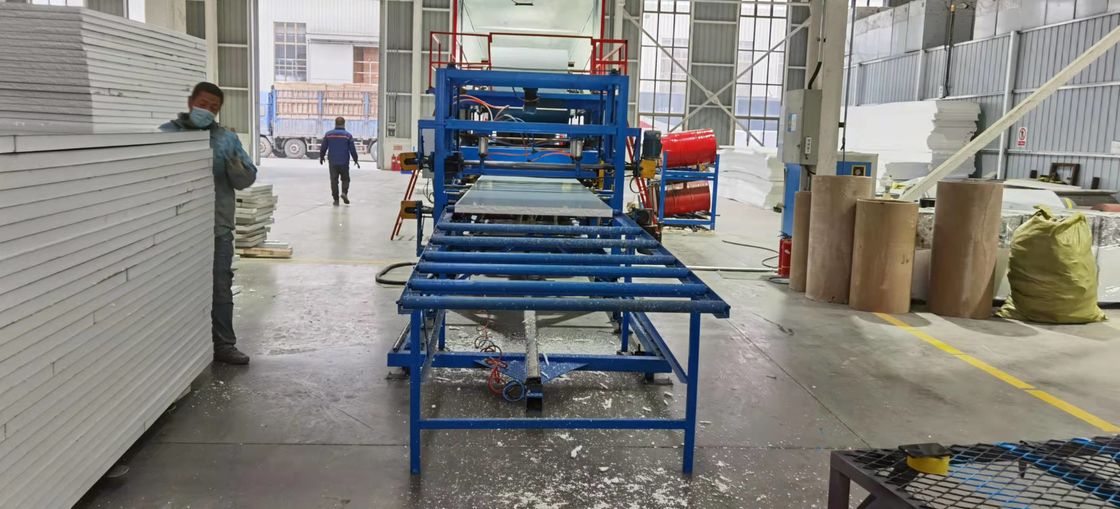

Insulated Panel Roll Forming Lines Sandwich Panel
Our star product sandwich panel roll forming machine, can produce EPS and rock wool sandwich panels. At present, our production technology of this line is in the leading level of the our country.

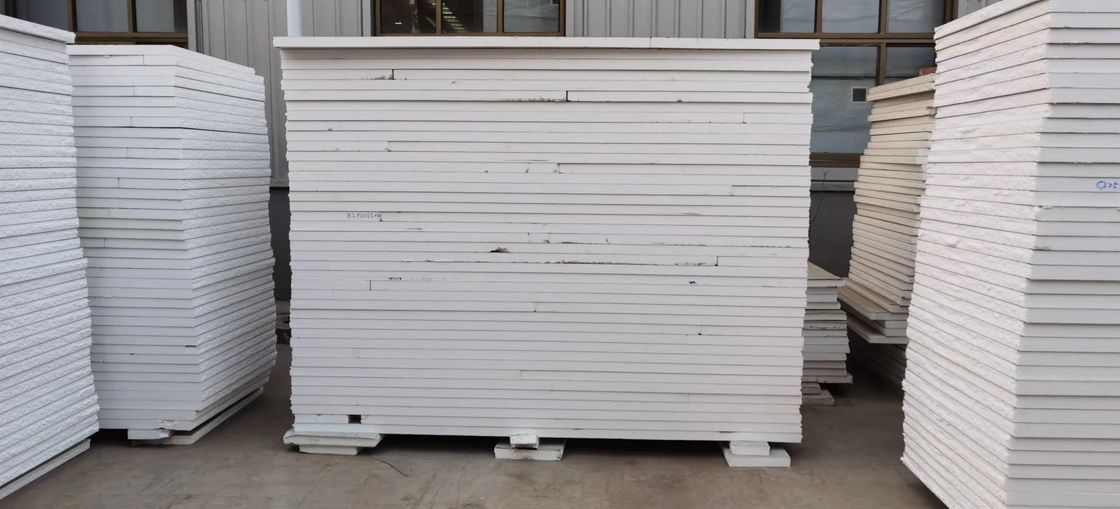

Suitable for heat preservation, heat insulation, sound insulation and electrical insulation. Thermal insulation board has unparalleled excellent performance of other similar boards. With its extremely low thermal conductivity, it has good heat preservation and heat insulation properties; with its extremely low water absorption, it has excellent waterproof and moisture-proof properties. ; With its high compressive strength, it has a large load-bearing performance; with its light material and simple construction, it is especially suitable for high-rise building strategies and large-scale modern construction of large-scale projects.
Specification
| No. | Item | Description |
| 1 |
Dimensions (L*W*H) |
400000 mm*2250 mm*2500 m |
| 2 | Thickness of the plate | 0.3-0.8mm |
| 3 | Core thickness | 20-300mm |
| 4 | Roller Station |
Up layer: 13 rows. Down layer: 14 rows |
| 5 |
Working Speed |
4 m /min |
| 6 |
Power |
Main motor power: 4kw . Flying saw power: 2*0.75kw |
| 7 |
Total Power |
32 KW |
| 8 |
Machine Weight |
25 tons |
| 9 |
Hydraulic motor power |
15 kw |
| 10 |
Cutting Accuracy |
±2 mm |
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received.
