उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
FMS
प्रमाणन:
ISO CE
मॉडल संख्या:
दरवाज़ा नीचे
वीडियो
वीडियो
वीडियो
वीडियो

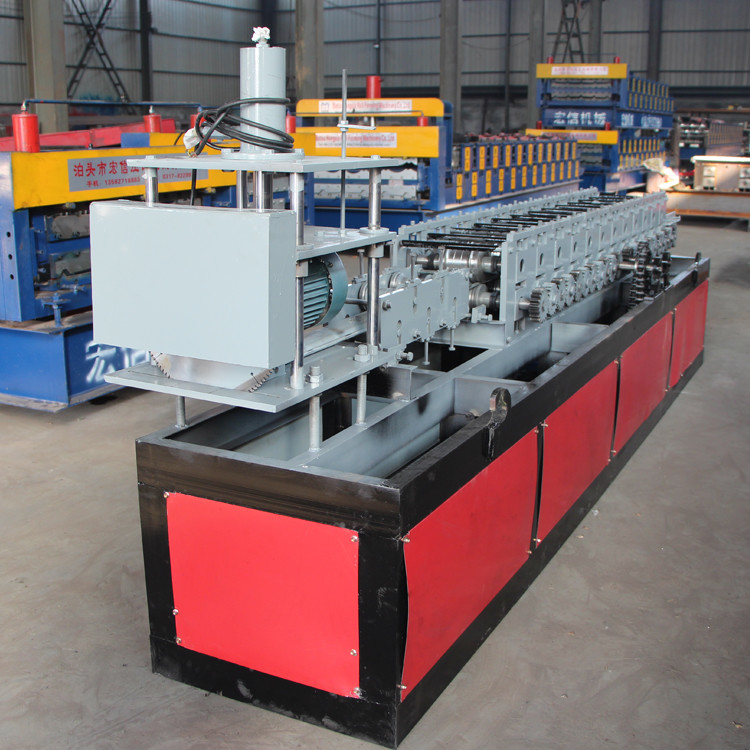

Shutter Slat Door Roll Forming Machine Cold Steel

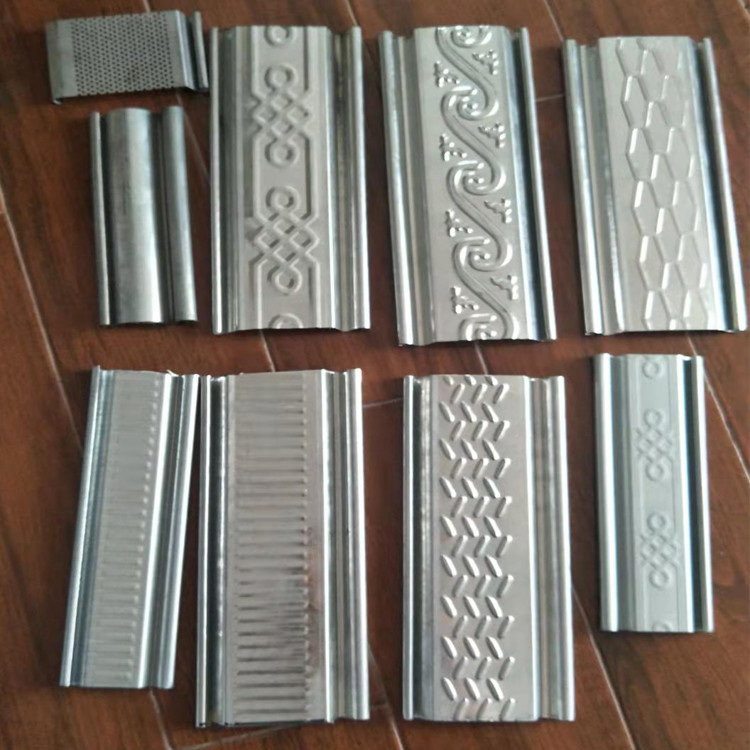

The steel door bottom forming machine is controlled by the PLC control system to realize fully automatic operation. The machine language can be customized according to customer requirements. the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.3mm - 0.8 mm |
| 3 | Working Speed | 10-25 m/min |
| 4 | Roller Station | 12 Stations |
| 5 |
Size |
7500 mm*1500 mm*1600 mm |
| 6 | Machine Weight | 2.5T |
| 7 |
Electrical Control System |
PLC |
| 8 |
Power Supply |
380V, 50HZ, 3 PHASES(can be customized) |
| 9 |
Cutting Accuracy |
± 1 mm |
| 10 |
Driving Mode |
Gear Wheel |
| 11 |
Material of Shaft |
60 mm 45#steel forged |
| 12 | Cutter Standard |
GCr12 |
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received.
