High Speed PPGI Glazed Tile Cold Roll Forming Machine Hydraulic Cutting

High Speed PPGI Glazed Tile Cold Roll Forming Machine Hydraulic Cutting

ppgi glazed tile cold roll forming machine

hydraulic glazed tile cold roll forming machine

hydraulic cutting glazed roll forming machine

उत्पत्ति के प्लेस:

चीन (महाद्वीप

ब्रांड नाम:

CANGZHOU FMS

प्रमाणन:

ISO CE

मॉडल संख्या:

मेट टाइल/ग्लेज़्ड टाइल

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
प्रोडक्ट का नाम:
चमकदार टाइल रोल बनाने की मशीन हाई स्पीड हाइड्रोलिक कटिंग
कच्चा माल:
गैलवेल्यूम, गैल्वनाइज्ड, पीपीजीआई, एल्युमीनियम, तांबा
वोल्टेज:
380V
उपयोग:
छत का फर्श
गारंटी:
1 वर्ष
सामग्री की मोटाई:
0.25-0.8 मिमी
विद्युत हाइड्रोलिक:
4 किलोवाट
सटीकता:
±2 मिमी
प्रमुखता देना:

ppgi glazed tile cold roll forming machine

,

hydraulic glazed tile cold roll forming machine

,

hydraulic cutting glazed roll forming machine

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
40' एफएलसी
प्रसव के समय
35 कार्य दिवस
भुगतान शर्तें
एल/सी, टी/टी, डी/ए, डी/पी
आपूर्ति की क्षमता
प्रति माह 20 सेट
संबंधित उत्पाद
अच्छा दाम Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line ऑनलाइन वीडियो

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine ऑनलाइन वीडियो

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw ऑनलाइन वीडियो

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine ऑनलाइन वीडियो

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
86-317-2016816
अब संपर्क करें
उत्पाद वर्णन

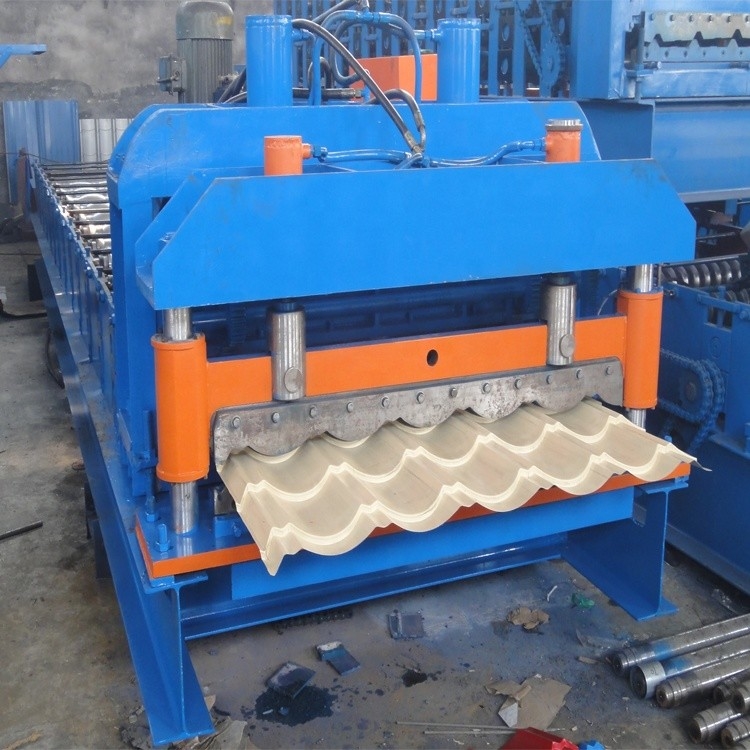

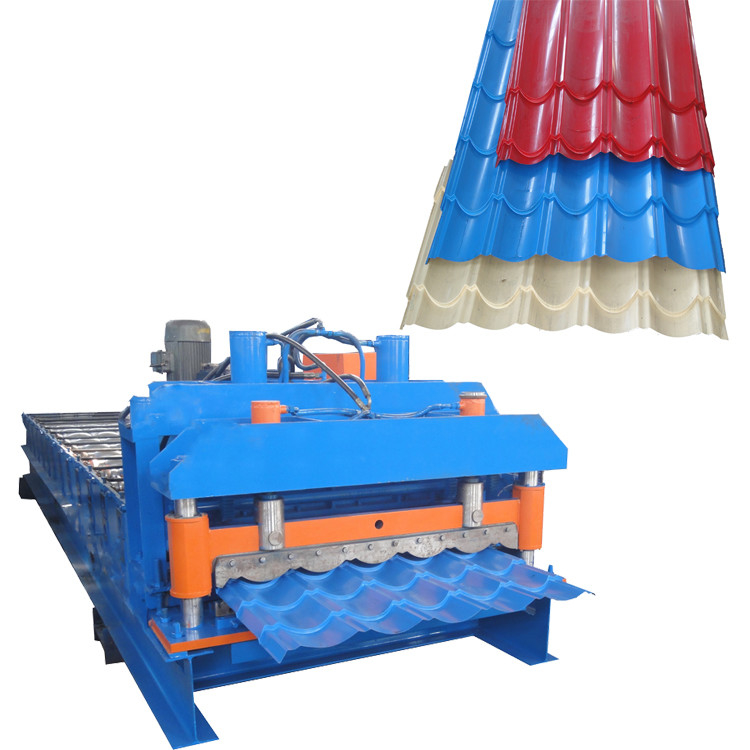

Glazed Tile Roll Forming Machine High Speed Hydraulic Cutting



Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.

It is applicable to the industrial and civil buildings, warehouses, special buildings, large span steel structure of the roof, walls and interior and exterior decoration, with light, high strength, rich color, construction convenient and fast, seismic, fire, rain, long life, maintenance free and other characteristics, has been widely promoted and applied.





Profile



Specification



Material Thickness
0.25-0.8 mm
Working Speed
8-15m/min
Main servo
5.5kw
Hydraulic Station Power
4 kw
Electrical Control System
PLC
Suitable Material
PPGI (235Mpa)
Material of Cutter
Cr12
Driving Mode
single chain 1 inch
Cutting accuracy
±2 mm
Power Supply
380 V, 60 HZ, 3 PHASES
Hydraulic Station Pressure
12.0 Mpa





Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.



High Speed PPGI Glazed Tile Cold Roll Forming Machine Hydraulic Cutting 0
