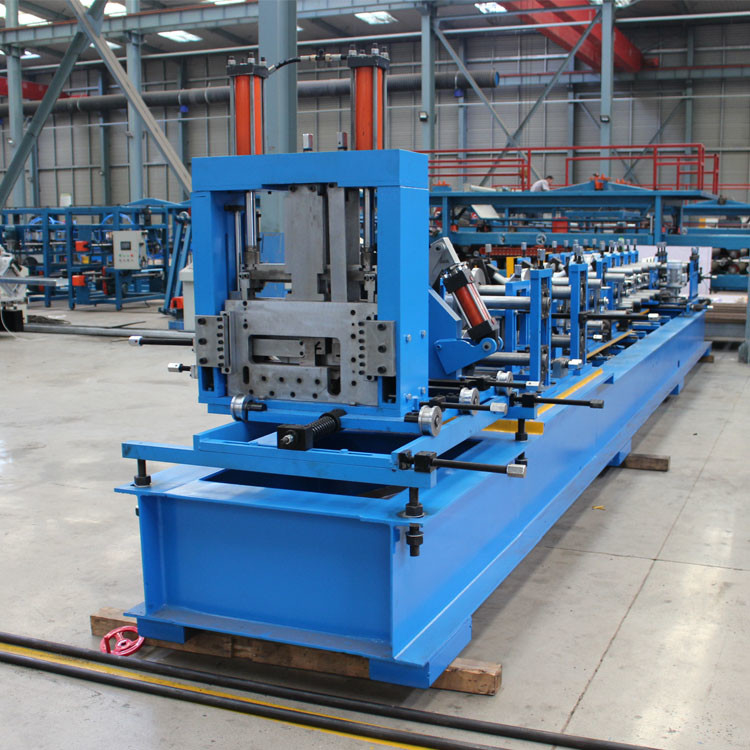

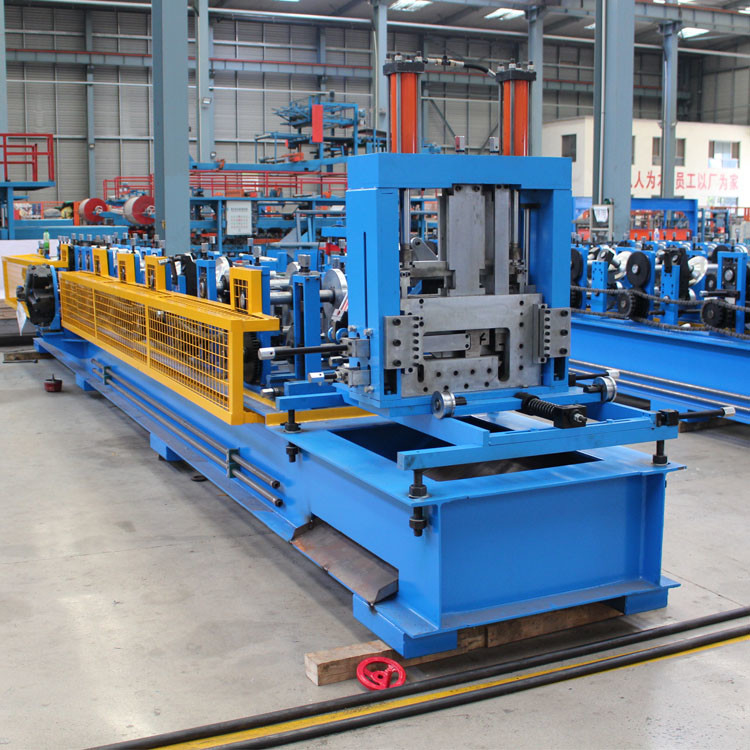

CZ Purlin Interchangeable Roll Forming Machine Full Automatic
Where are our company C/Z purlin interchangeable roll forming machine diffience from other compititor: 1.The finished purlin has high straight level and high crush resistance ability. 2.The finished Z purlin can be lap reversely.The connection point improve strength. 3.Use reduce motor and frequency to control, the speed length and location can be control. 4.Interchangeable progress between C and Z is fast and easy
feature
1.Take continuous production,there is no need to change the rollers in rough-forming section.
2. c z shape purlin forming machine hot sale price finished with good flatness bending pressure performance is good, automatic fixed-length cutting, automatic punching, high degree of automation, quick and easy installation,
3.the product can be used as medium-sized industrial and civil buildings the main force structure, such as factories, warehouses, machine garages, hangars, exhibition halls, theaters, stadiums, fairs Shed roof and wall flat load bearing support.
specifications
| Length of the main part | 6800mm*800mm*1200mm |
| Weight of main part | 7.2 tons |
| Voltage | 380V 50HZ 3Phase |
| Frame | 400 H steel |
| Drive mode | differential gear |
| Main axle material | GR15 |
| Material of shafts | 45# steel |
| Diameter of shafts | φ80mm |
| Number of rollers | 12 rollers |
| Main power | 11kw(cycloidal planetary gear speed reducer) |
| Forming speed | 8m-10m/min |
| Adjustment method | Half seams type Looper |
