Trapezoidal PPAL 0.8mm Metal Sheet Roll Forming Machine Automatic

Trapezoidal PPAL 0.8mm Metal Sheet Roll Forming Machine Automatic

ppal automatic roll forming machine

0.8mm metal sheet roll forming machine

ppal metal sheet roll forming machine

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

FMS

प्रमाणन:

CE,ISO

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
उत्पाद वर्णन:
ट्रेपेज़ॉइड धातु शीट रोल बनाने की मशीन स्वचालित
सामग्री की मोटाई:
0.3-0.8 मिमी
शाफ्ट सामग्री:
सामग्री 45# फोर्ज स्टील है
उत्पादन क्षमता:
0-12 मीटर/मिनट
नियंत्रण प्रणाली:
पीएलसी
कोर की वारंटी:
2 साल
वोल्टेज:
380V 50HZ 3PH
रोलर सामग्री:
45#, सीआर12, जीसीआर15, जीसीआर12एमओवी
प्रमुखता देना:

ppal automatic roll forming machine

,

0.8mm metal sheet roll forming machine

,

ppal metal sheet roll forming machine

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
मुख्य मशीन नग्न है, कंप्यूटर नियंत्रण बॉक्स प्लास्टिक से पैक किया गया है।
प्रसव के समय
30 दिन
भुगतान शर्तें
टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता
प्रति माह 30 सेट
संबंधित उत्पाद
अच्छा दाम Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line ऑनलाइन वीडियो

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine ऑनलाइन वीडियो

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw ऑनलाइन वीडियो

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine ऑनलाइन वीडियो

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
86-317-2016816
अब संपर्क करें
उत्पाद वर्णन

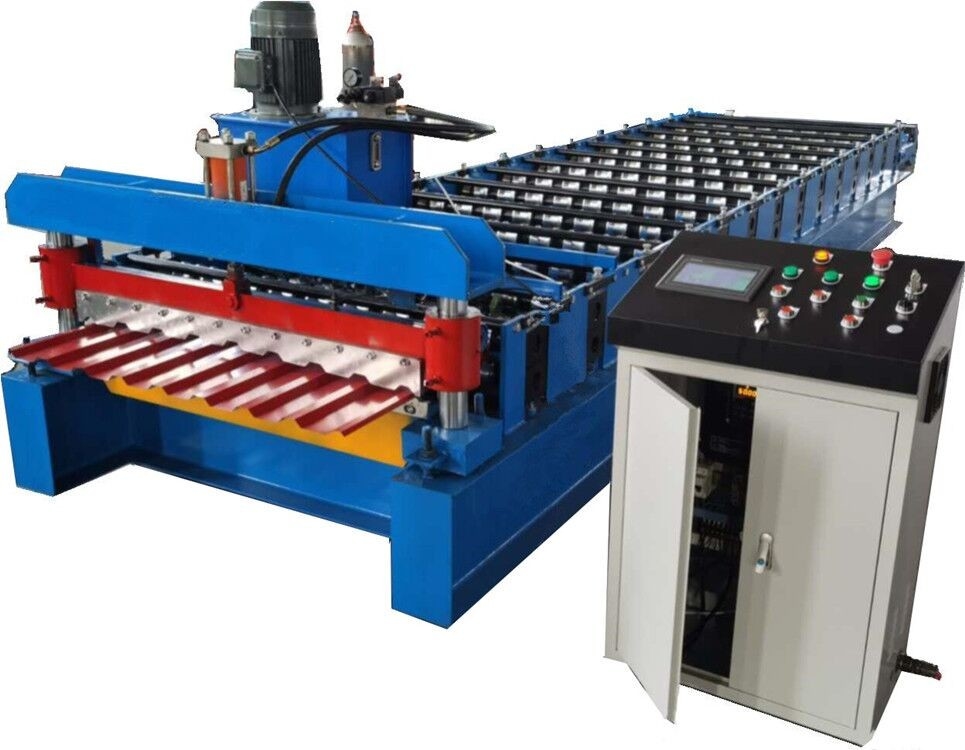

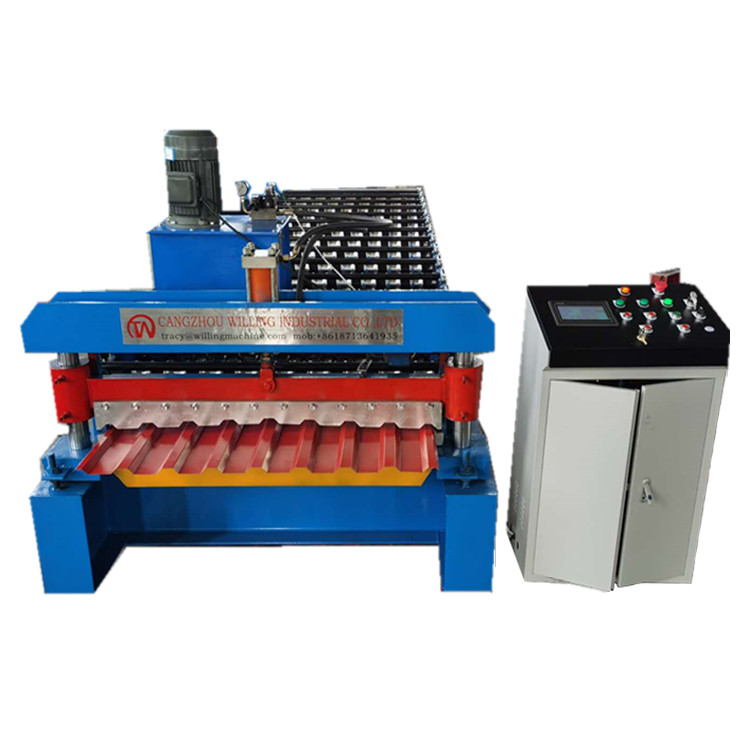

Trapezoid Metal Sheet Roll Forming Machine Automatic

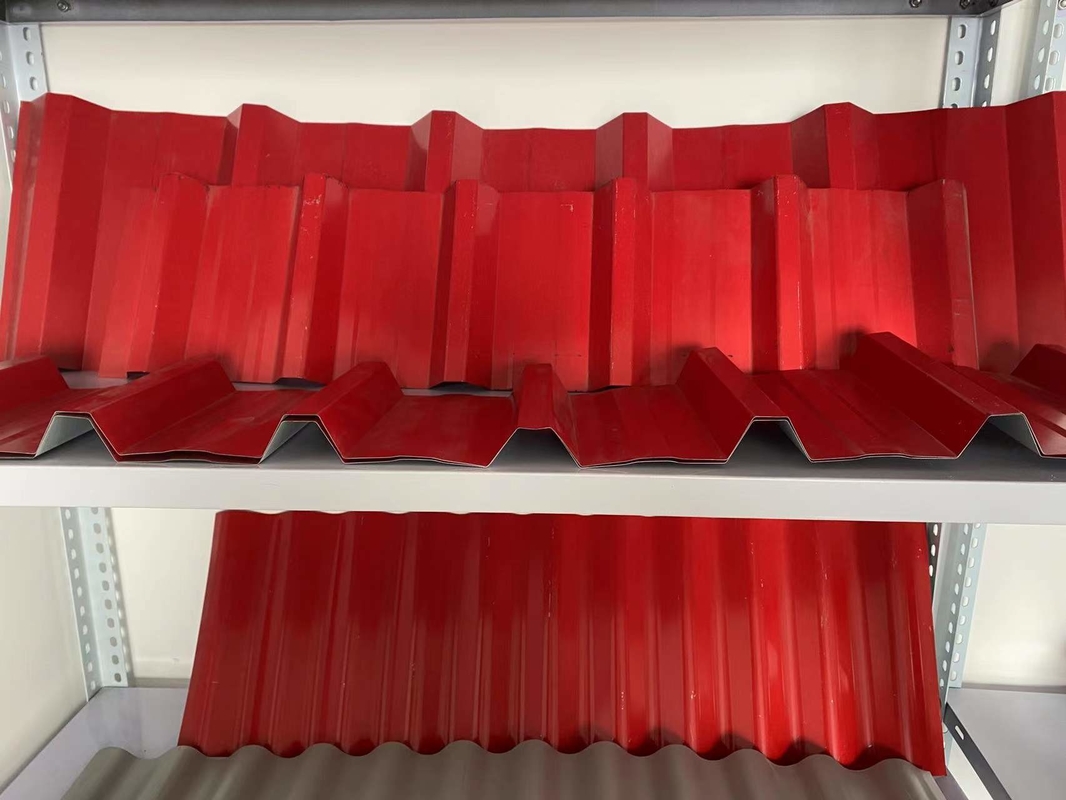

Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.



This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.




Equipment Detailed Parameters:



No. Item Unit Parameter Remark
1 Material
Type   PPGI, PPGL, GI, GL, PPAL As requirement
Thickness of Material mm 0.3-0.8mm As requirement
2 Material Width mm 914-1650mm As requirement
3 Production Speed m/min Common speed: 0-12m/min Adjustment
High speed As requirement
4 Effective Width of Product mm 760-1260mm According to drawings
5 Roller Material   45#, Cr12, GCr15, GCr12MoV As design
6 Drive Type   By Chain or Gear or Gearbox
7 Motor Power kW 9.5
8 Brand of Electric Control System   Delta or Siemens or Schneider Selectable
9 Dimension ( L* W * H ) m 8.5*1.45*1.5 Based on design
10 Warranty Month 24




Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
