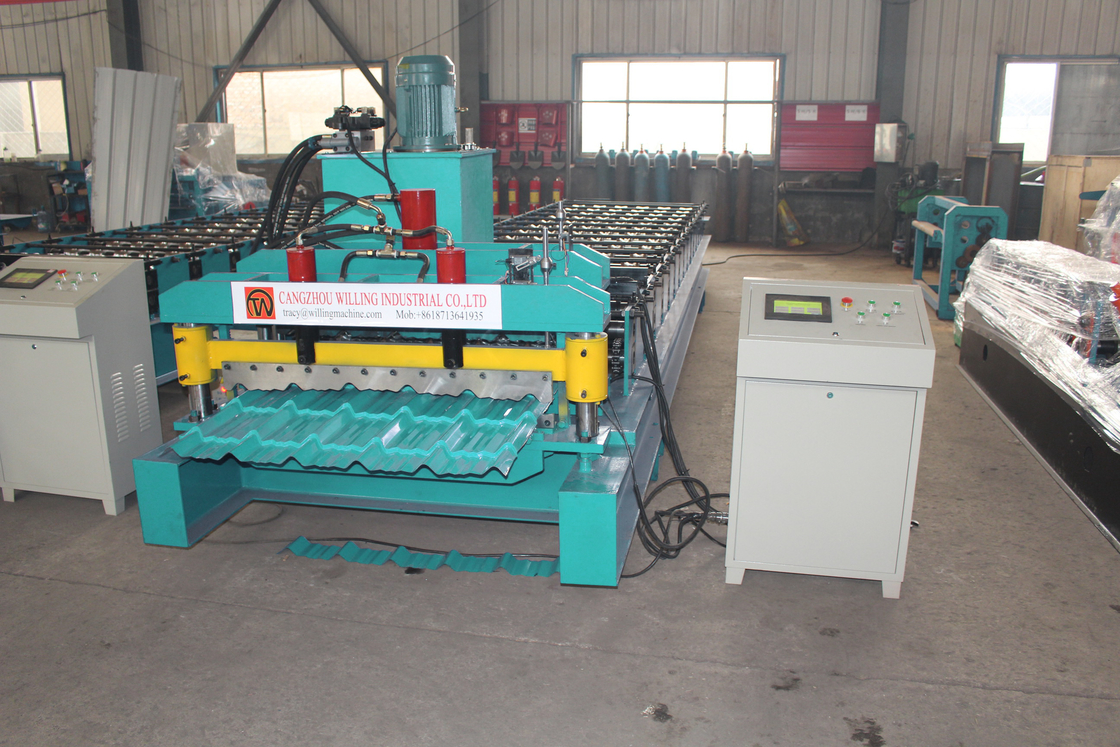

Metal Sheet Glazed Tile Roll Forming Machine Automatic

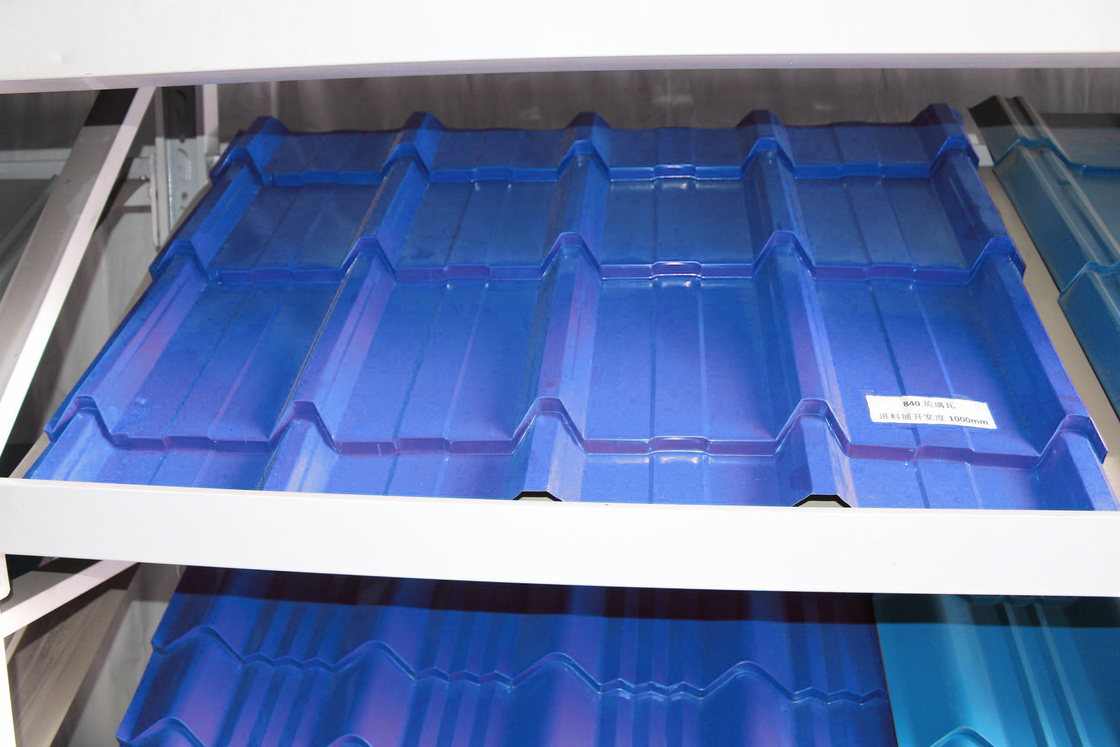

Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.
| No. | Item | Description |
| 1 | Type | Steel / Galvanized Panel |
| 2 | Feeding width | According to client's requirement |
| 3 | Thickness | 0.3-0.7 mm |
| 4 | Roller station | 13 Steps (According to the profile) |
| 5 | Diameter of shaft | 75mm |
| 6 | Shaft material | 45# Steel |
| 7 | Roller material | 45# Steel |
| 8 | Drive Motor Power | 4 KW |
| 9 | Hydraulic Station Power | 4 KW |
| 10 | Voltage | 380V 50Hz 3phases or Customerization |
| 11 | Cutting Accuracy | ±2 mm |
| 12 | Weight | About 3.5 Tons |
| 13 | Cutting type | Hydraulic cutting |
| 14 | Material of blade | Cr12, HRC60-62°C |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
