Making 0.8mm Thickness Door Frame Roll Forming Machine 380V

door frame roll forming machine plc

door frame roll forming machine 380v

0.8mm thickness door frame making machine

उत्पत्ति के प्लेस:

चीन (महाद्वीप

ब्रांड नाम:

FMS

प्रमाणन:

ISO CE

हमसे संपर्क करें

उद्धरण मांगें

उत्पाद विवरण

प्रोडक्ट का नाम:

मेटल डोर स्टील फ्रेम रोल बनाने वाली मशीन को संचालित करना आसान है

वोल्टेज:

380V 50Hz 3 चरण

रोलर्स सामग्री:

GCr15,Cr12,SKD11 शमन उपचार:HRC58-62(वैकल्पिक)

वज़न:

लगभग 6 टन

रोलिंग मोटाई:

0.8-1.5 मिमी

नियंत्रण प्रणाली:

नोट में सूची के रूप में पीएलसी

हाइड्रोलिक शक्ति:

5.5 kw

प्रमुखता देना:

door frame roll forming machine plc

door frame roll forming machine 380v

0.8mm thickness door frame making machine

भुगतान और शिपिंग शर्तें

न्यूनतम आदेश मात्रा

1 सेट

मूल्य

negotiable

पैकेजिंग विवरण

20' एफएलसी

प्रसव के समय

30 कार्य दिवस

भुगतान शर्तें

एल/सी, टी/टी, डी/ए, डी/पी

आपूर्ति की क्षमता

प्रति माह 20 सेट

संबंधित उत्पाद

वीडियो

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

सबसे अच्छी कीमत प्राप्त करें

वीडियो

Customized High Speed PU Door Roller Shutter Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें

वीडियो

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

सबसे अच्छी कीमत प्राप्त करें

वीडियो

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

सबसे अच्छी कीमत प्राप्त करें

हमसे संपर्क करें

86-317-2016816

अब संपर्क करें

उत्पाद वर्णन

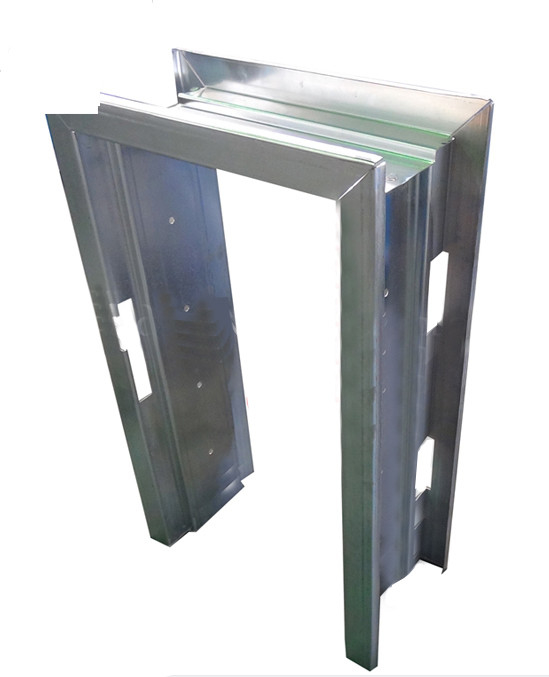

Metal Door Steel Frame Roll Making Forming Machine Easy To Operate

Easy to Operate Door Frame Making Line is cold-rolled into various wave-shaped pressed plates. It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decoration of large-span steel structures. It has the characteristics of light weight, high strength, rich color, convenient and quick construction, anti-seismic, fireproof, rainproof, long life and maintenance-free. It has been widely used.

Specification

1	Coil width	295mm
2	Rolling speed	12-15m/min(not include cutting & punching time)
3	Rolling thickness	0.8-1.5mm GI, G550
4	Control system	PLC (Panasonic) as list in the note
5	Un Coiler	5T hydraulic decoiler
6	Leveling	Three rollers four
7	Punching	4 sets
8	Shaft Material and DIA	￠65mm, material is 45# forge steel
9	Roller stations	About 19 stations (according the final design)
10	Roller material	Gcr15, HRC55-60 surface coated with chrome
11	Post cutting	Hydraulic cutting after roll forming
12	Material Of Cutting	Cr12Mov quenching 58-62℃
13	Maim Motor Power	11kw
14	Hydraulic Station Power	5.5kw
15	Hydraulic Pressure	12-16Mpa adjustable
16	Sturcture Of The Stations	Wire-electrode cutting
17	Electric Source	380V, 50HZ,3 phase According to customer's require
18	Way Of Drive	By chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Making 0.8mm Thickness Door Frame Roll Forming Machine 380V 0
