Ppgi High Accuracy Shutter Door Roll Forming Machine Hydraulic Shears

Ppgi High Accuracy Shutter Door Roll Forming Machine Hydraulic Shears

gl automatic rolling shutter machine

ppgi shutter door roll forming machine

hydraulic shears shutter door rolling machine

उत्पत्ति के प्लेस:

चीन (महाद्वीप

ब्रांड नाम:

FMS

प्रमाणन:

ISO CE

मॉडल संख्या:

दरवाज़ा नीचे

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
प्रोडक्ट का नाम:
उच्च सटीकता शटर दरवाजा नीचे रोल बनाने की मशीन हाइड्रोलिक कैंची
कच्चा माल:
पीपीजीआई, जीआई, पीपीजीएल जीएल
कार्य -गति:
10-15 मी / मिनट
द्रव्य का गाढ़ापन:
0.3 मिमी - 0.8 मिमी
वोल्टेज:
380V 50Hz 3phases
सटीकता:
± 1 मिमी
ड्राइव मोटर शक्ति:
5 किलोवाट
हाइड्रोलिक स्टेशन शक्ति:
5 किलोवाट
प्रमुखता देना:

gl automatic rolling shutter machine

,

ppgi shutter door roll forming machine

,

hydraulic shears shutter door rolling machine

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
20' एफएलसी
प्रसव के समय
30 कार्य दिवस
भुगतान शर्तें
एल/सी, टी/टी, डी/ए, डी/पी
आपूर्ति की क्षमता
प्रति माह 20 सेट
संबंधित उत्पाद
अच्छा दाम Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min ऑनलाइन वीडियो

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Customized High Speed PU Door Roller Shutter Roll Forming Machine ऑनलाइन वीडियो

Customized High Speed PU Door Roller Shutter Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size ऑनलाइन वीडियो

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System ऑनलाइन वीडियो

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
अब संपर्क करें
उत्पाद वर्णन

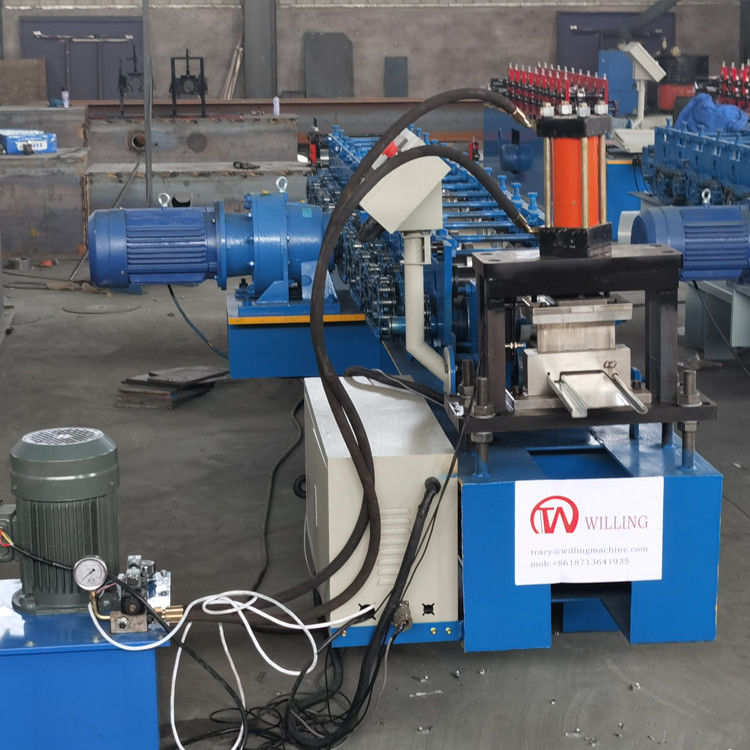

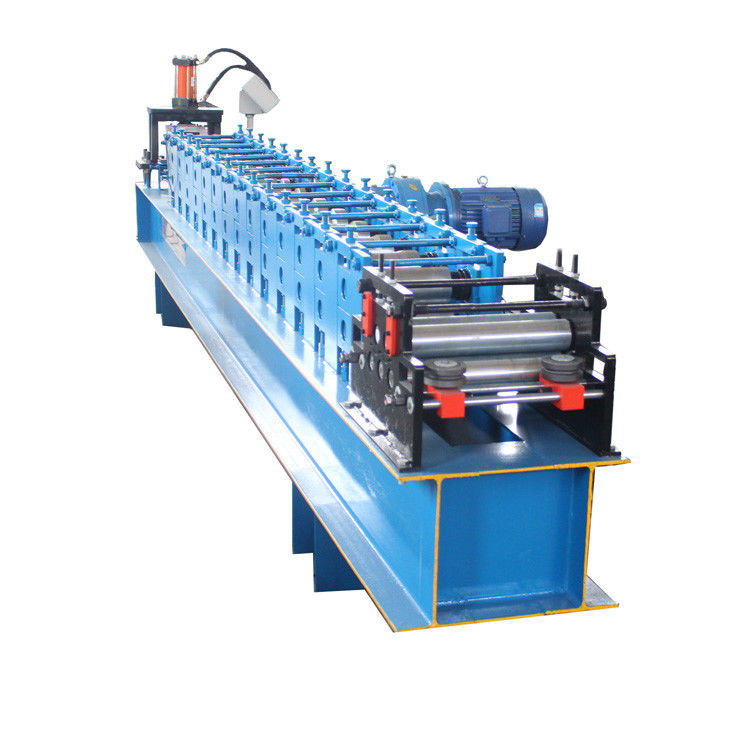

High Accuracy Shutter Door Bottom Roll Forming Machine Hydraulic Shears



The steel door bottom forming machine is controlled by the PLC control system to realize fully automatic operation. The machine language can be customized according to customer requirements. the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.

The rolling shutter door bottom forming machine is used in conjunction with the rolling shutter door strip forming machine. The finished product is widely used in the production of various doors, such as garage doors, fire-proof rolling shutter doors and the area isolation of medicine,cigarettes, printing, textiles, supermarkets and other light industrial plants.



Specification



1
Suitable to process
Color steel plate
2
Width of the plate
914mm/1000mm/1200mm/1220mm/1250mm
3
Thickness of the plate
0.3-0.8mm
4
Diameter of the roller
80mm
5
Rolling material
Carbon Steel 45#
6
Main motor power
5.5kw
7
Material of the cutting blade
Cr12 mov
8
Hydraulic cutting power
4kw
9
Processing precision
Within 1.00mm
10
Control system
Delta PLC control
11
Side panel of machine
16mm
12
Main structure of the machine
350 H steel
13
Voltage
380V 50Hz 3phases(changeable as needs)
14
Certificate
CE/ISO



Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
