Steel Framing Channel Galvalume Strut Roll Forming Machine

Steel Framing Channel Galvalume Strut Roll Forming Machine

steel framing strut roll forming machine

galvalume strut roll forming machine

steel framing channel roll forming machine

उत्पत्ति के प्लेस:

चीन (महाद्वीप

ब्रांड नाम:

CANGZHOU WILLING

प्रमाणन:

ISO CE

मॉडल संख्या:

पूर्ण स्वचालित चैनल शहतीर मशीन

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
प्रोडक्ट का नाम:
हाई स्ट्रेंथ स्टील फ्रेमिंग चैनल स्ट्रट रोल फॉर्मिंग लाइन्स आसान संचालन
कच्चा माल:
गैलवेल्यूम, गैल्वेनाइज्ड
मुख्य घटक:
पीएलसी, इंजन, असर, मोटर, पंप
उत्पादन क्षमता:
8-12एम/मिनट
वोल्टेज:
380V 50Hz 3phases
गारंटी:
1 वर्ष
प्रमुख विक्रय बिंदु:
संचालित करना आसान है
रोलर की सामग्री:
GCR15
प्रमुखता देना:

steel framing strut roll forming machine

,

galvalume strut roll forming machine

,

steel framing channel roll forming machine

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
40' एफएलसी
प्रसव के समय
30 कार्य दिवस
भुगतान शर्तें
एल/सी, टी/टी, डी/ए, डी/पी
आपूर्ति की क्षमता
प्रति माह 20 सेट
संबंधित उत्पाद
अच्छा दाम High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction ऑनलाइन वीडियो

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings ऑनलाइन वीडियो

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency ऑनलाइन वीडियो

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel ऑनलाइन वीडियो

CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
86-317-2016816
अब संपर्क करें
उत्पाद वर्णन

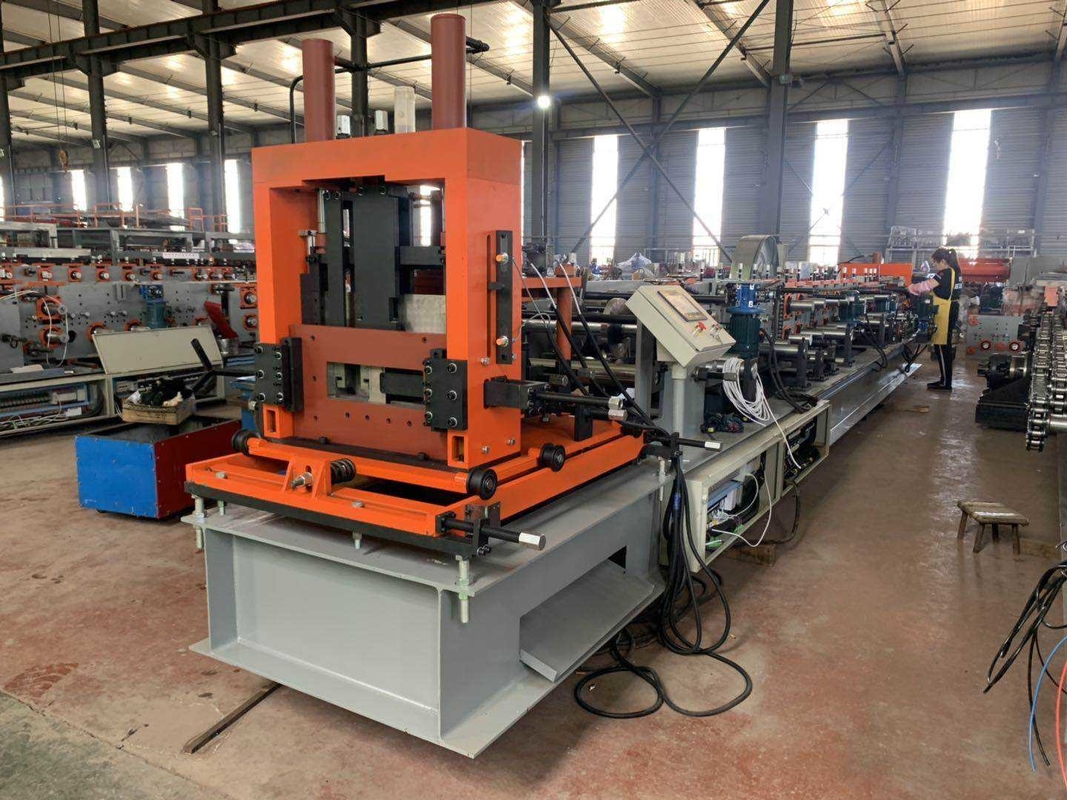

High Strength Steel Framing Channel Strut Roll Forming Lines Easy Operation

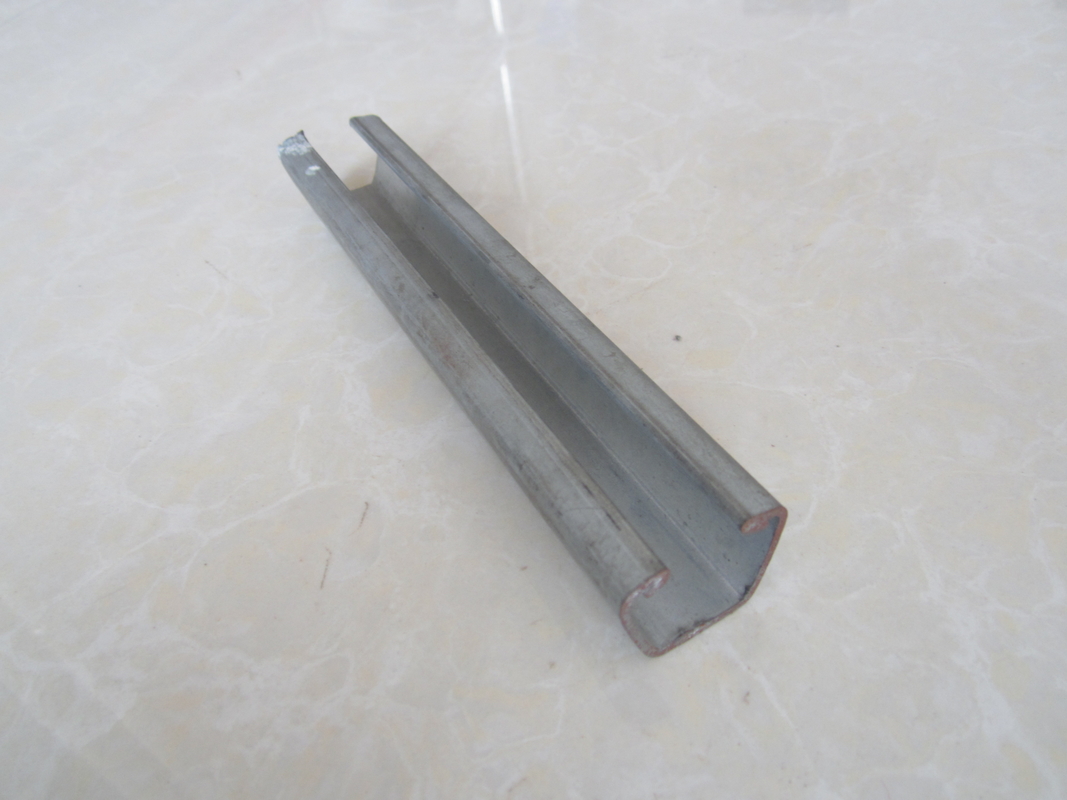

Channels are secondary steel framing members that serve as a receiver channel at the end of Zee Purlin. They can also be used for a number of other applications either alone or welded back-to-back. Available in red oxide or galvanized, Channels are standard at 20′ long, though some locations can cut to length.





Specification



1
Suitable to process
Color steel plate
2
Width of the purlin
80-300mm
3
Thickness of the plate
1.5-3mm
4
De-coiler
Manual one, can load 5 tons raw material
5
Rollers for forming
15 rows
6
Diameter of the roller
85 mm
7
Rolling material
Cr15
8
Main motor power
22kw
9
Material of the cutting blade
Cr12 mov
10
Hydraulic cutting power
22kw
11
Processing precision
Within 1.00mm
12
Control system
Delta PLC control



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
